Description

Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 19 This part replaces 13700-33H00.

13700-33H02

$284.90

2

FILTER

13780-07G00

$28.51

3

HOLDER

13791-03G00

$7.99

4

STOPPER, HOLDER

13792-03G00

$6.58

5

SCREW

02142-0616A

$1.37

6

TUBE, OUTLET

13881-33H00

Unavailable

7

JOINT

13858-14D20

$6.80

8

.PLUG

13859-41B10

$6.94

9

CLIP

09401-14101

$2.37

10

CLAMP (CLEANER SIDE)

09402-82208

$5.58

11

CLAMP (CARBURETOR SIDE)

13826-33H00

Unavailable

12

TRAP, FLAME This part replaces 13810-07G00.

13810-07G01

$18.16

13

CAP, AIR CLEANER

13740-07G02

$41.95

14

GASKET

13746-07G00

$4.32

15

JOINT, INLET

13891-07G00

$15.89

16

DUCT, INLET

13896-07G00

$33.38

17

CLAMP This part replaces 09402-56208.

09402-56901

$4.84

18

.SCREW

02112-0516A

$1.45

19

HOLDER

13889-33H00

Unavailable

20

COVER, INLET

13899-33H00

$43.10

21

CUSHION

44545-16G00

$8.13

22

BOLT

01547-0616A

$2.01

23

WASHER

08322-0106A

$1.83

24

SENSOR, AIR TEMP This part replaces 13650-14G11.

13650-14G10

$47.66

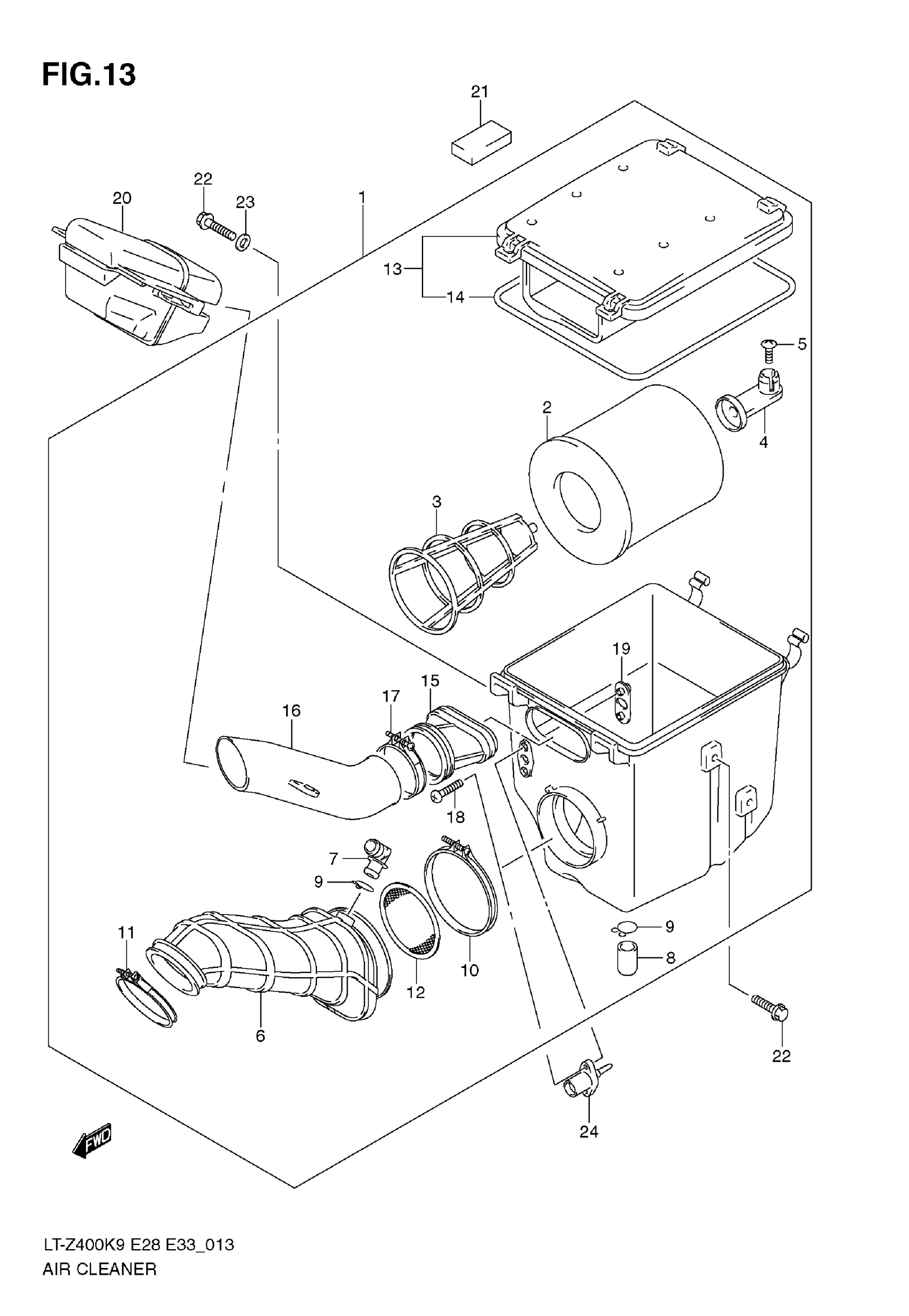

Suzuki LT-Z400 (2009) AIR CLEANER Diagram

CLEANER ASSY,AI | Includes Item(s) 2 - 19 This part replaces 13700-33H00.

FILTER

HOLDER

STOPPER, HOLDER

SCREW

TUBE, OUTLET

JOINT

.PLUG

CLIP

CLAMP (CLEANER SIDE)

CLAMP (CARBURETOR SIDE)

TRAP, FLAME This part replaces 13810-07G00.

CAP, AIR CLEANER

GASKET

JOINT, INLET

DUCT, INLET

CLAMP This part replaces 09402-56208.

.SCREW

HOLDER

COVER, INLET

CUSHION

BOLT

WASHER

SENSOR, AIR TEMP This part replaces 13650-14G11.
