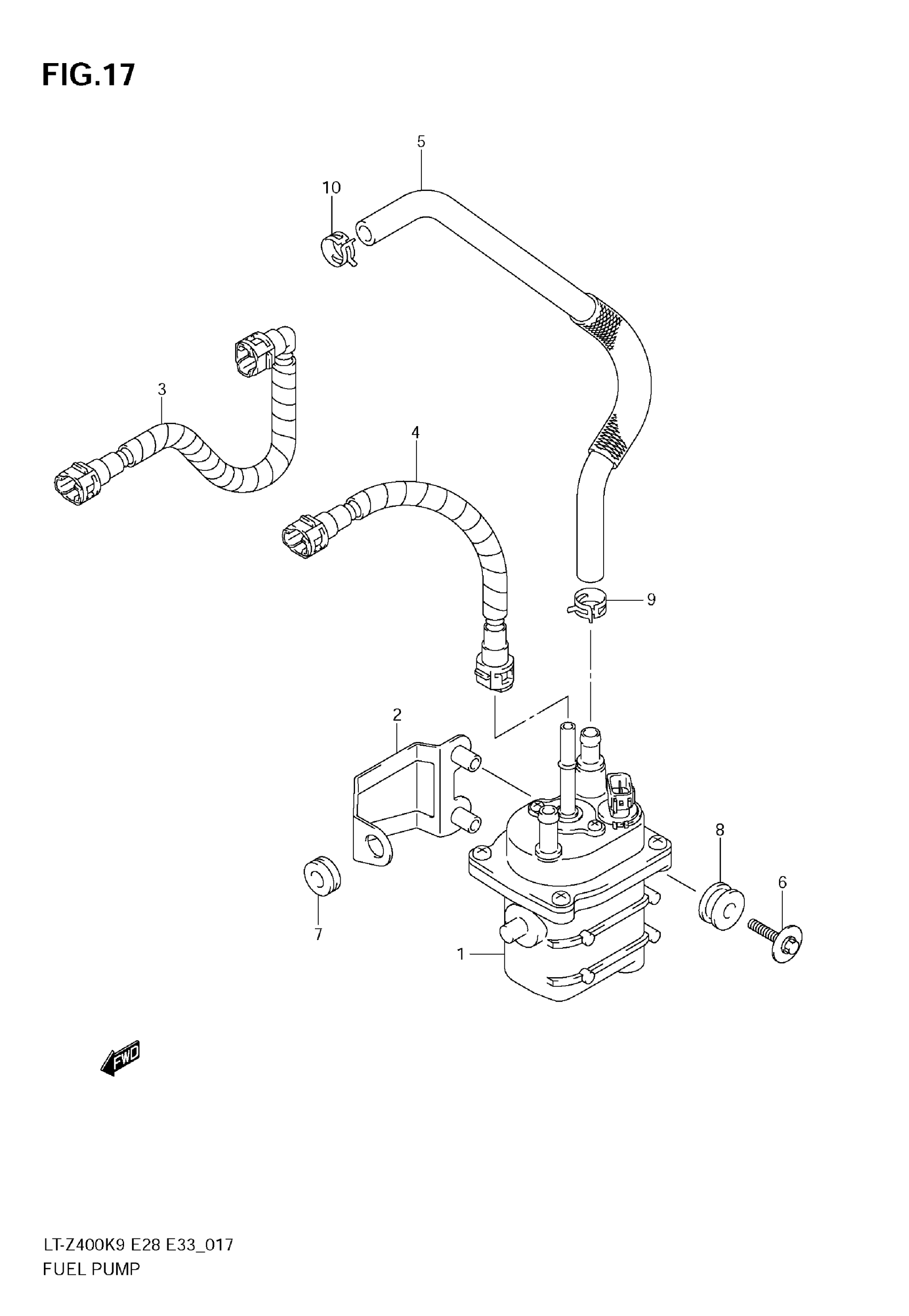

Suzuki LT-Z400 (2009) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY,FUEL This part replaces 15100-33H00.

15100-33H03

$533.93

2

BRACKET, FUEL PUMP

15310-33H00

Unavailable

3

HOSE, FUEL This part replaces 15810-33H00.

15810-33H01

$72.02

4

HOSE, FUEL NO.2 This part replaces 15820-33H00.

15820-33H01

$68.07

5

HOSE, FUEL NO.3 This part replaces 15831-33H00.

15831-33H01

$47.93

6

BOLT

09116-06186

$2.66

7

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

8

CUSHION This part replaces 09320-10503.

09320-10076

$2.56

9

CLIP

09401-12410

$2.29

10

CLIP

09401-13414

$2.64
