2008 Suzuki LT-Z400 Suspension ARM Diagram

← All diagrams

Find the part on the Suspension ARM diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

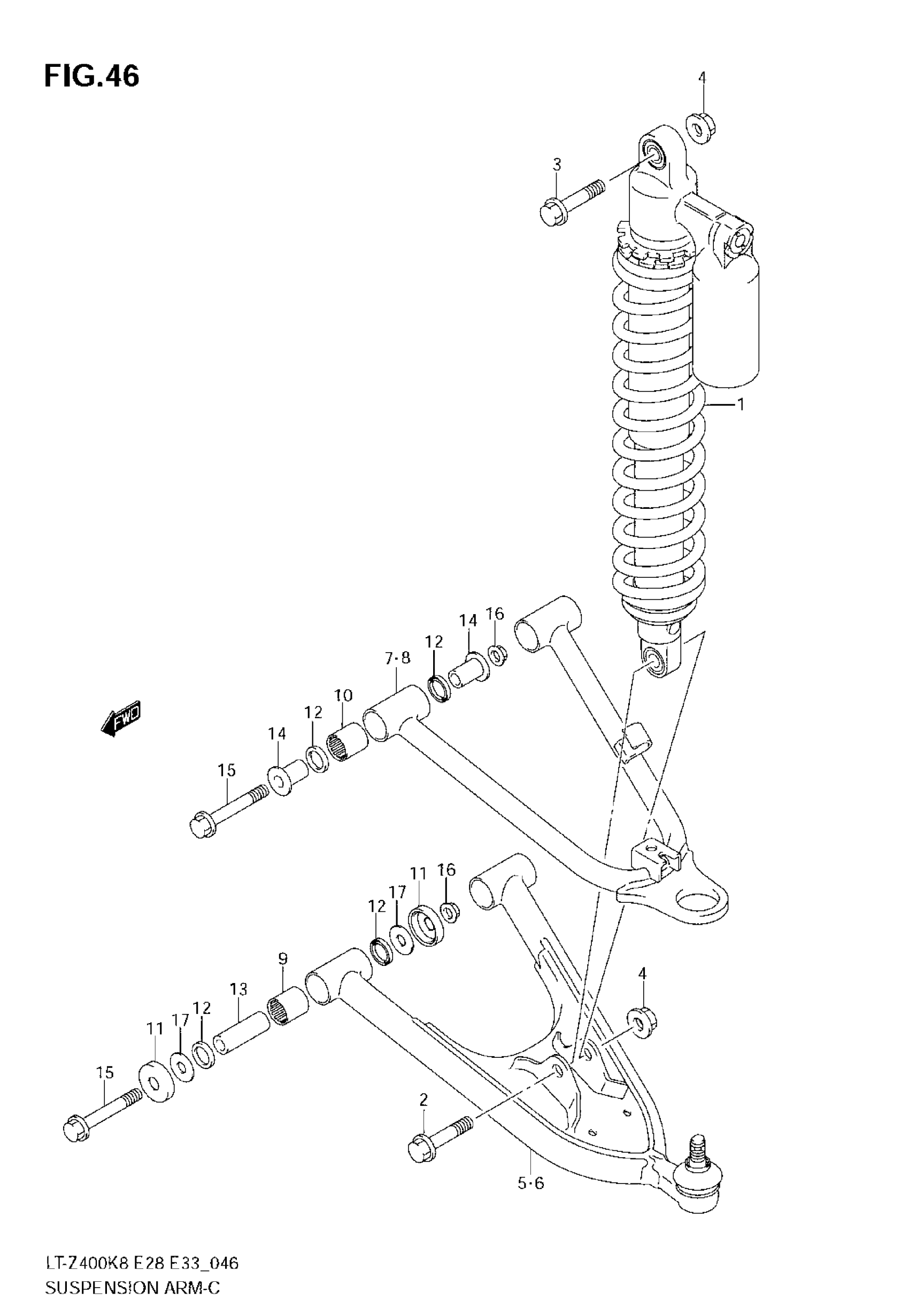

2008 Suzuki LT-Z400 Suspension ARM Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

ABSORBER ASSY, FRONT SHOCK (RED) | E33 FOR YU1

52100-07G22-YKS

2
Out of stock

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | E33 FOR 30H

52100-07G22-28W

2
Out of stock

1

ABSORBER ASSY, FRONT SHOCK (RED) | E28 FOR YU1

52100-07G32-YKS

—
Out of stock

1

ABSORBER ASSY, FRONT SHOCK (WHITE) | E28 FOR 30H

52100-07G32-28W

—
Out of stock

2

BOLT, LOWER (10X48)

09103-10352

2
Out of stock

3

BOLT, UPPER (10X38)

09103-10351

2
Out of stock

4

NUT

09159-10115

4
Out of stock

5

ARM ASSY, SUSPENSION LOWER RH

52410-07G20-YD8

1
Out of stock

6

ARM ASSY, SUSPENSION LOWER LH

52420-07G20-YD8

1
Out of stock

7

ARM ASSY, SUSPENSION UPPER RH

52430-07G10-YD8

1
Out of stock

8

ARM ASSY, SUSPENSION UPPER LH

52440-07G10-YD8

1
Out of stock

9

BEARING, SUSPENSION ARM PIVOT

09263-17033

4
Out of stock

10

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

4
Out of stock

11

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

8
Out of stock

12

.SEAL,OIL (17X24X3) This part replaces 09285-17001.

09285-17007

16
Out of stock

13

SPACER, LOWER

52455-43B00

4
Out of stock

14

SPACER, UPPER

52455-07G00

8
Out of stock

15

BOLT

09103-10033

8
Out of stock

16

NUT

09159-10115

8
Out of stock

17

WASHER

08211-10281

8
Out of stock
