2008 Suzuki LT-Z400 Handle Lever Diagram

← All diagrams

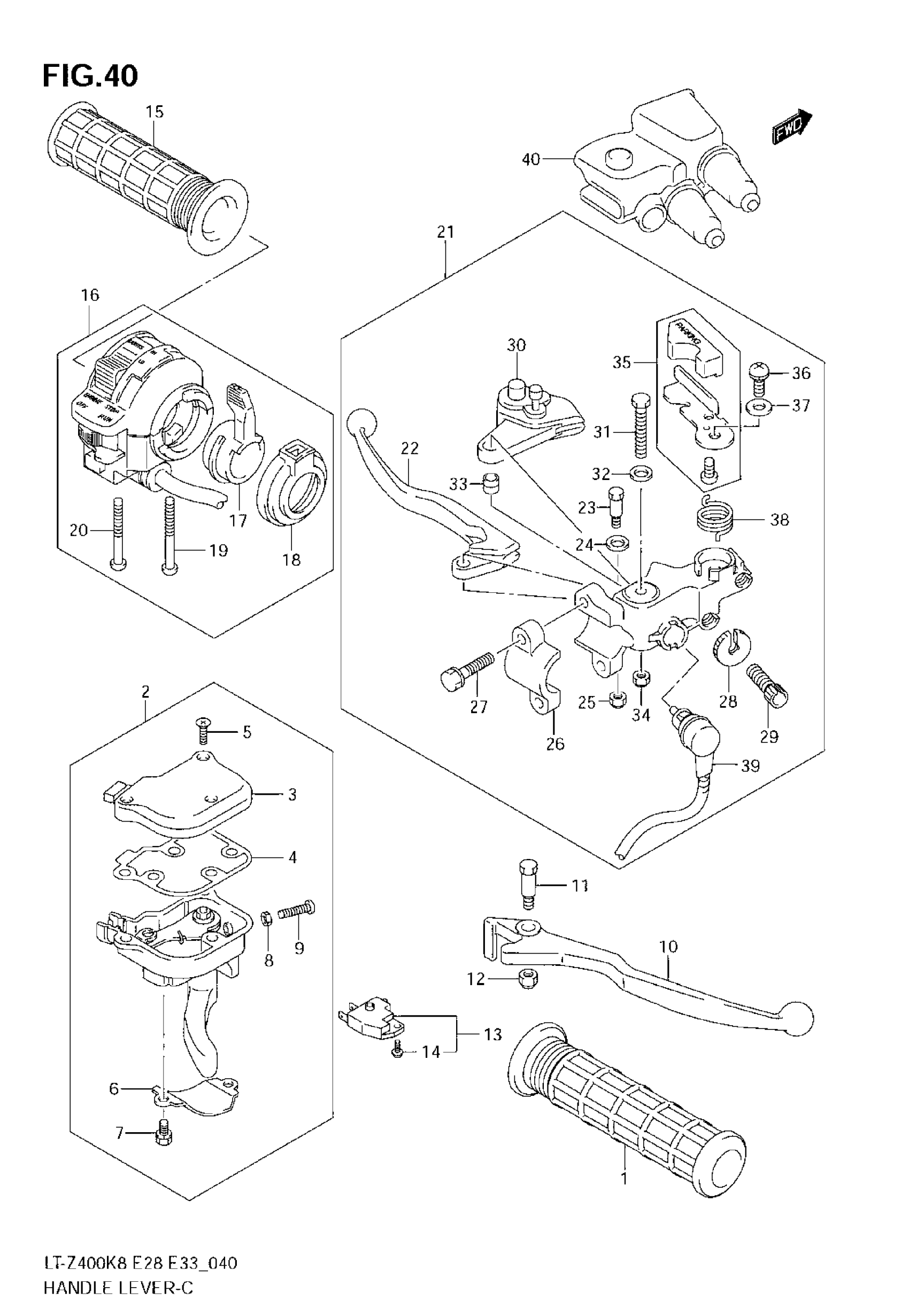

Find the part on the Handle Lever diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki LT-Z400 Handle Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GRIP This part replaces 57211-03G10.

57211-03G11

1
Out of stock

2

CASE ASSY, THROTTLE | Includes Item(s) 3 - 9

57100-38F60

1
Out of stock

3

CAP

57121-38F50

1
Out of stock

4

GASKET

57157-38F50

1
Out of stock

5

SCREW

57128-07G00

3
Out of stock

6

HOLDER

57126-07G00

1
Out of stock

7

BOLT

57127-07G00

2
Out of stock

8

NUT

08310-0005A

1
Out of stock

9

SCREW

02112-0520B

1
Out of stock

10

LEVER,FRONT BRAKE

57421-39D20

1
Out of stock

11

BOLT,BRAKE LEVER PIVOT

57431-04F00

1
Out of stock

12

NUT,LEVER PIVOT

57433-09F00

1
Out of stock

13

SWITCH ASSY,FR BRAKE | Includes Item(s) 14 This part replaces 57460-17C11.

57460-14J02

1
Out of stock

14

SCREW

57465-17C00

1
Out of stock

15

GRIP This part replaces 57211-03G10.

57211-03G11

1
Out of stock

16

SWITCH ASSY,HAN | Includes Item(s) 17 - 20 This part replaces 37400-07G21.

37400-07G22

1
Out of stock

17

LEVER, CHOKE

37571-19B01

1
Out of stock

18

COVER, CHOKE

37576-19B01

1
Out of stock

19

SCREW

02112-05457

1
Out of stock

20

SCREW

02112-05407

1
Out of stock

21

LEVER SET,CLUTC | Includes Item(s) 22 - 39 This part replaces 57500-07G10.

57500-07G13

1
Out of stock

22

LEVER This part replaces 57621-07G00.

57621-07G01

1
Out of stock

23

BOLT, PIVOT

57513-07G00

1
Out of stock

24

WASHER

57432-07G00

1
Out of stock

25

NUT

08319-2106A

1
Out of stock

26

HOLDER

57512-07G00

1
Out of stock

27

..BOLT

01547-0620B

2
Out of stock

28

NUT,ADJUSTER This part replaces 57442-07G00.

57442-07G01

2
Out of stock

29

.ADJUSTER, WIRE This part replaces 57441-45C00.

57441-45C01

2
Out of stock

30

LOCK SET, PARKING LOCK

57800-07850

1
Out of stock

31

BOLT, PARKING LOCK

57431-07G00

1
Out of stock

32

.WASHER This part replaces 57433-07G00.

08322-0106B

1
Out of stock

33

SPACER

57623-07G00

1
Out of stock

34

NUT

08319-2106A

1
Out of stock

35

KNOB SET, PARKING

57700-07850

1
Out of stock

36

SCREW, PARKING PLATE

57619-07G00

1
Out of stock

37

WASHER

57618-07G00

1
Out of stock

38

SPRING, RETURN

57624-07G00

1
Out of stock

39

SWITCH ASSY, CLUTCH

57560-07G10

1
Out of stock

40

COVER, LEVER

57541-07G00

1
Out of stock
