2008 Suzuki LT-Z400 Steering Shaft Diagram

← All diagrams

Find the part on the Steering Shaft diagram for your 2008 Suzuki LT-Z400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

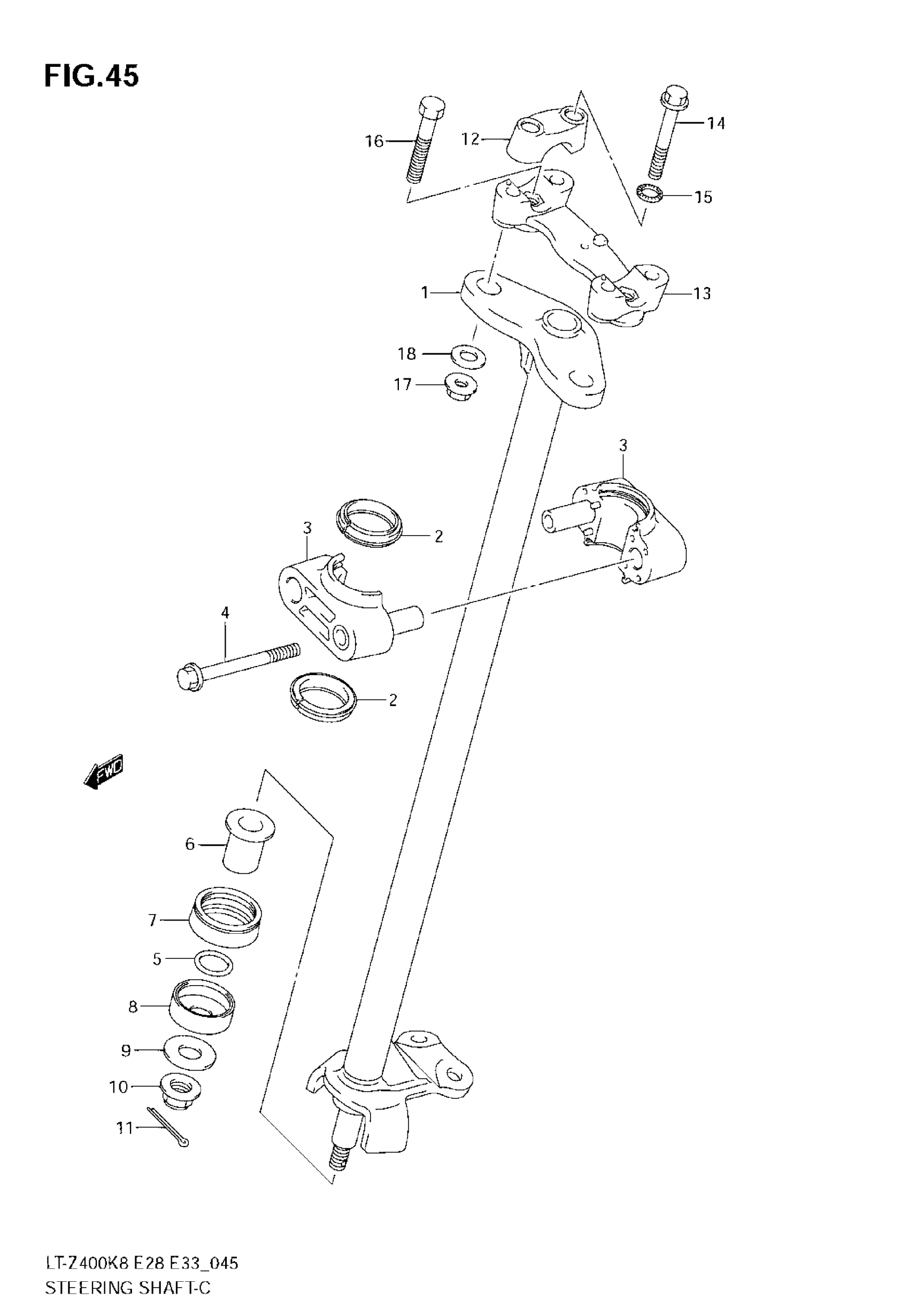

2008 Suzuki LT-Z400 Steering Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, STEERING

51650-07G30

1
Out of stock

2

DUST SEAL, STEERING HOLDER (27X38X8.5)

51678-24500

2
Out of stock

3

HOLDER,STEERING SHAFT

51670-24500

2
Out of stock

4

BOLT

01550-0875B

2
Out of stock

5

O RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

6

BUSH, STEERING SHAFT LOWER (17X26X36.9)

51661-09F00

1
Out of stock

7

SEAL,DUST This part replaces 51662-05G00.

51662-05G01

1
Out of stock

8

SEAL,DUST This part replaces 51663-05G00.

51663-05G01

1
Out of stock

9

WASHER (12.5X32X2.3)

09160-12073

1
Out of stock

10

NUT

08319-3112B

1
Out of stock

11

COTTER PIN

04111-2020A

1
Out of stock

12

CLAMP, HANDLEBAR (BLACK)

56211-09F00-291

2
Out of stock

13

CLAMP, HANDLE HOLDER LOWER

56211-45G10-291

1
Out of stock

14

BOLT

01550-0835B

4
Out of stock

15

WASHER

09164-08015

4
Out of stock

16

BOLT, HANDLE HOLDER

01500-1035B

2
Out of stock

17

NUT

08319-3110B

2
Out of stock

18

WASHER This part replaces 09160-10128.

09160-10128-XC0

2
Out of stock
