2009 Suzuki LT-Z250 Footrest Diagram

← All diagrams

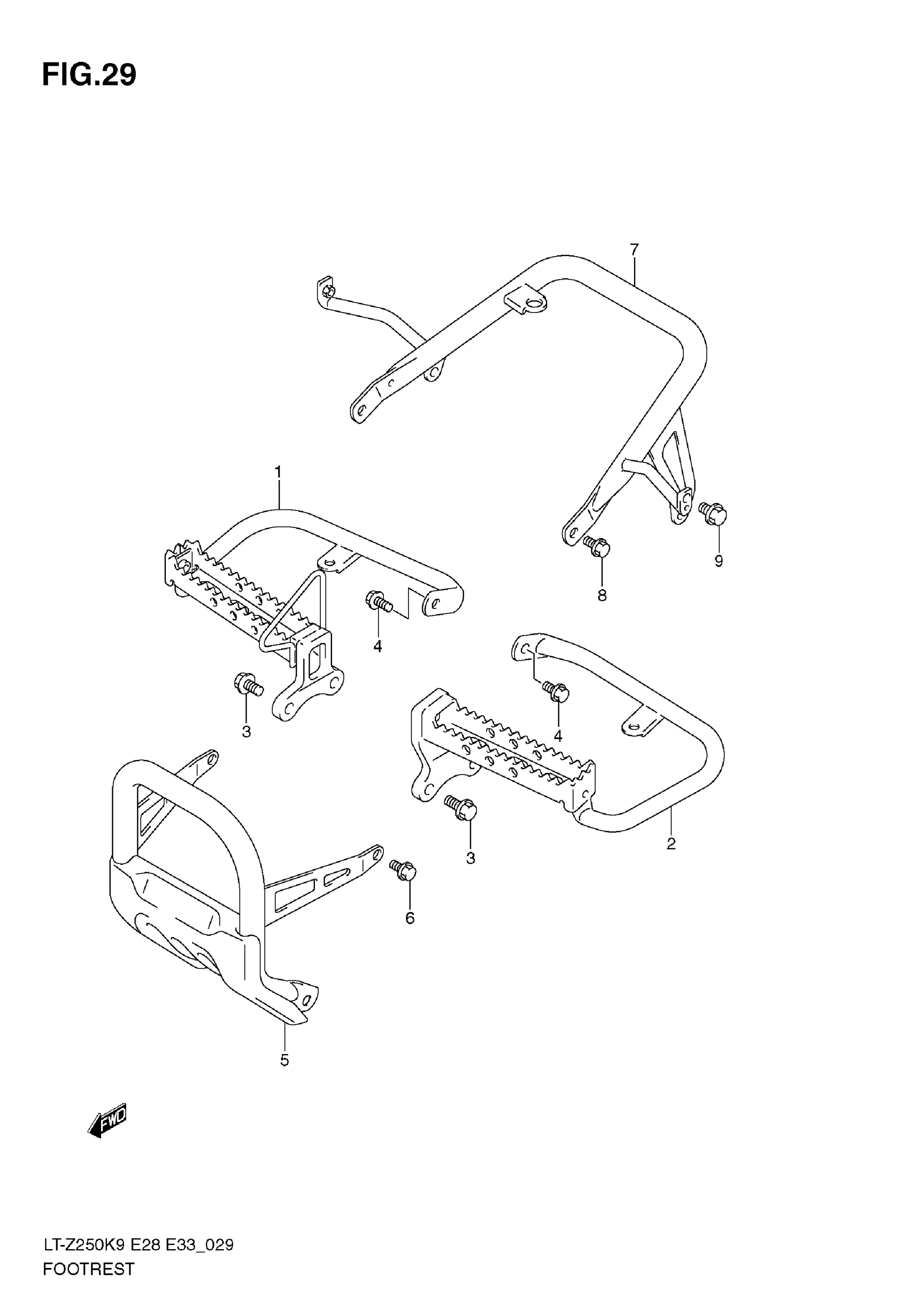

Find the part on the Footrest diagram for your 2009 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-Z250 Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST, FRONT RH

43510-21G00

1
Out of stock

2

FOOTREST, FRONT LH

43520-21G00

1
Out of stock

3

BOLT, FRONT

09103-10310

4
Out of stock

4

BOLT (8X16)

01550-0816A

2
Out of stock

5

GRIP, FRONT (SILVER)

43990-21G00-YD8

1

$240.53

In stock

6

BOLT (8X16)

01550-0816A

4
Out of stock

7

GRIP, REAR (SILVER)

43980-21G00-YD8

1

$218.88

In stock

8

BOLT (8X16)

01550-0816A

2
Out of stock

9

BOLT, REAR

01550-1016A

2

$3.06

In stock
