2009 Suzuki LT-Z250 Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2009 Suzuki LT-Z250, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

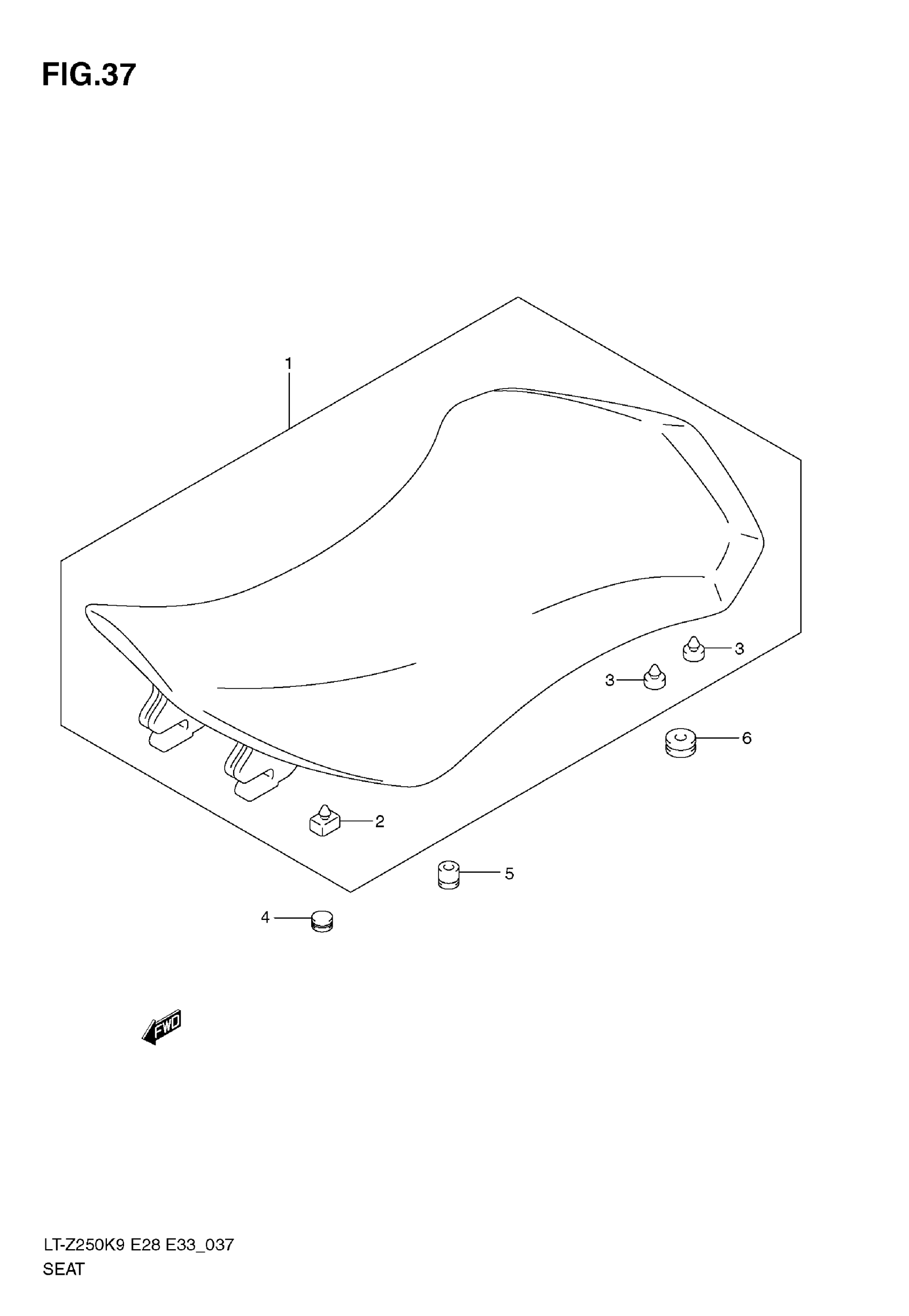

2009 Suzuki LT-Z250 Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT ASSY | Includes Item(s) 2 - 3

45100-21G20-U5J

1
Out of stock

2

CUSHION

45149-21G00

2
Out of stock

3

CUSHION

09321-10011

6
Out of stock

4

CUSHION,SEAT MOUNT FRONT

45141-21G00

2
Out of stock

5

CUSHION, SEAT MOUNT CENTER

45141-07G00

2
Out of stock

6

CUSHION, SEAT MOUNT REAR

09320-09017

2
Out of stock
