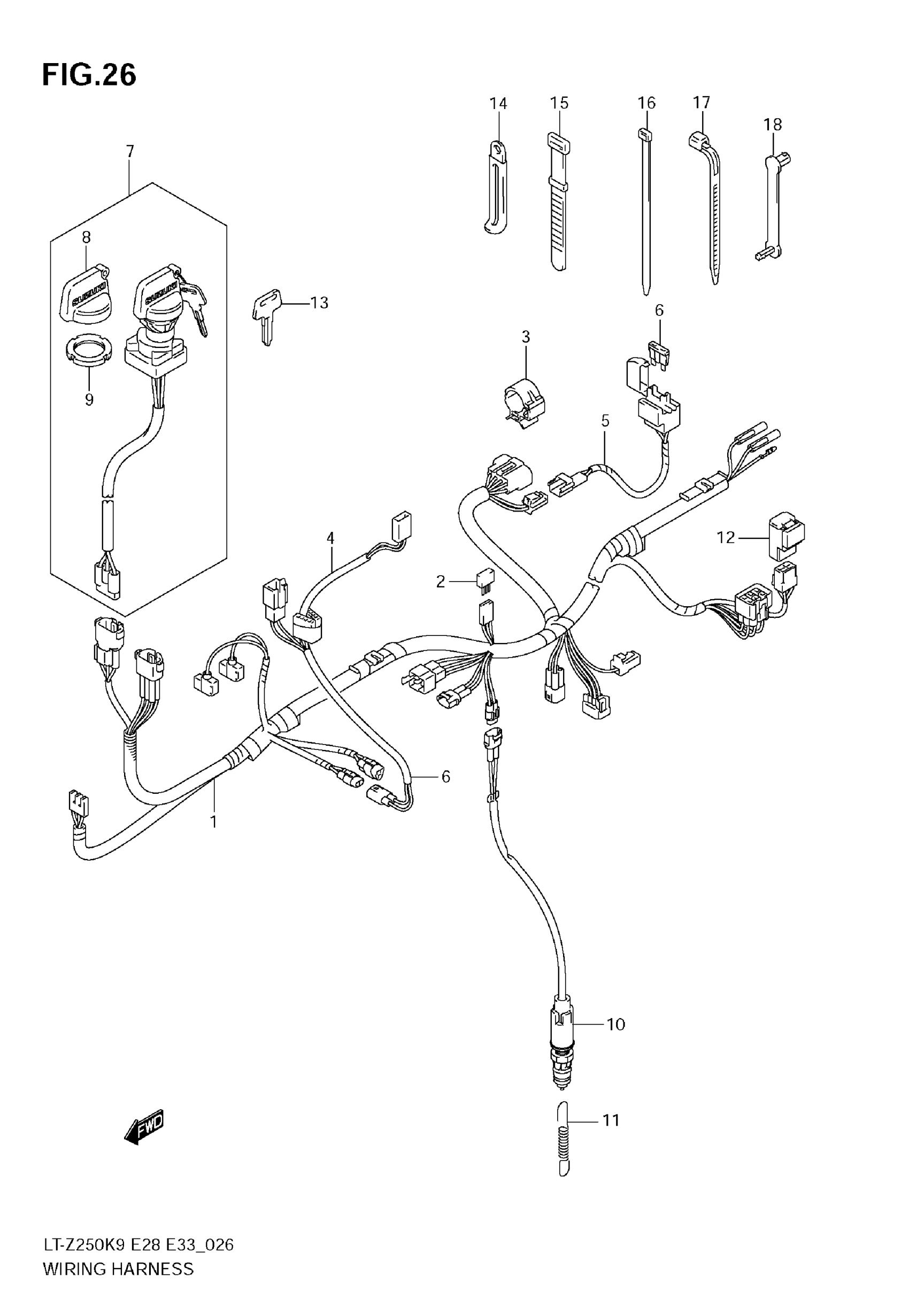

Suzuki LT-Z250 (2009) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING | Includes Item(s) 2

36610-21G00

$458.27

2

.DIODE This part replaces 36611-38A00.

36611-38A10

$12.39

3

CLAMP (ID:15)

09403-15405

$2.97

3

CLAMP (ID:20)

09403-20403

$4.00

3

CLAMP (ID:25)

09403-25401

Unavailable

4

WIRE, FRONT BRAKE SW LEAD

36854-21G00

Unavailable

5

WIRE, FUSE LEAD | Includes Item(s) 6

36852-21G00

$22.08

6

FUSE (15A)

09481-15101

$2.77

7

SWITCH ASSY,IGN | Includes Item(s) 8 - 9 This part replaces 37110-05G00.

37110-05G02

$102.44

8

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.56

9

.NUT,IGNITION SWITCH

37112-24500

$12.60

10

SWITCH ASSY,STOP LAMP

37740-38F01

$129.47

11

SPRING, STOP LAMP SWITCH

09443-06012

$2.90

12

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$36.33

13

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$7.38

13

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$7.38

13

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$7.38

13

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$7.38

14

CLAMP (L:45)

09404-06429

$1.82

14

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

15

CLAMP (L:120)

09407-12402

$2.80

16

CLAMP (L:100)

09407-10404

$2.71

16

CLAMP (L:145)

09407-14407

$2.80

17

CLAMP (L:95)

09407-11401

$2.87

17

CLAMP (L:125)

09407-14403

$2.24

18

CLAMP

09407-03401

$2.81
