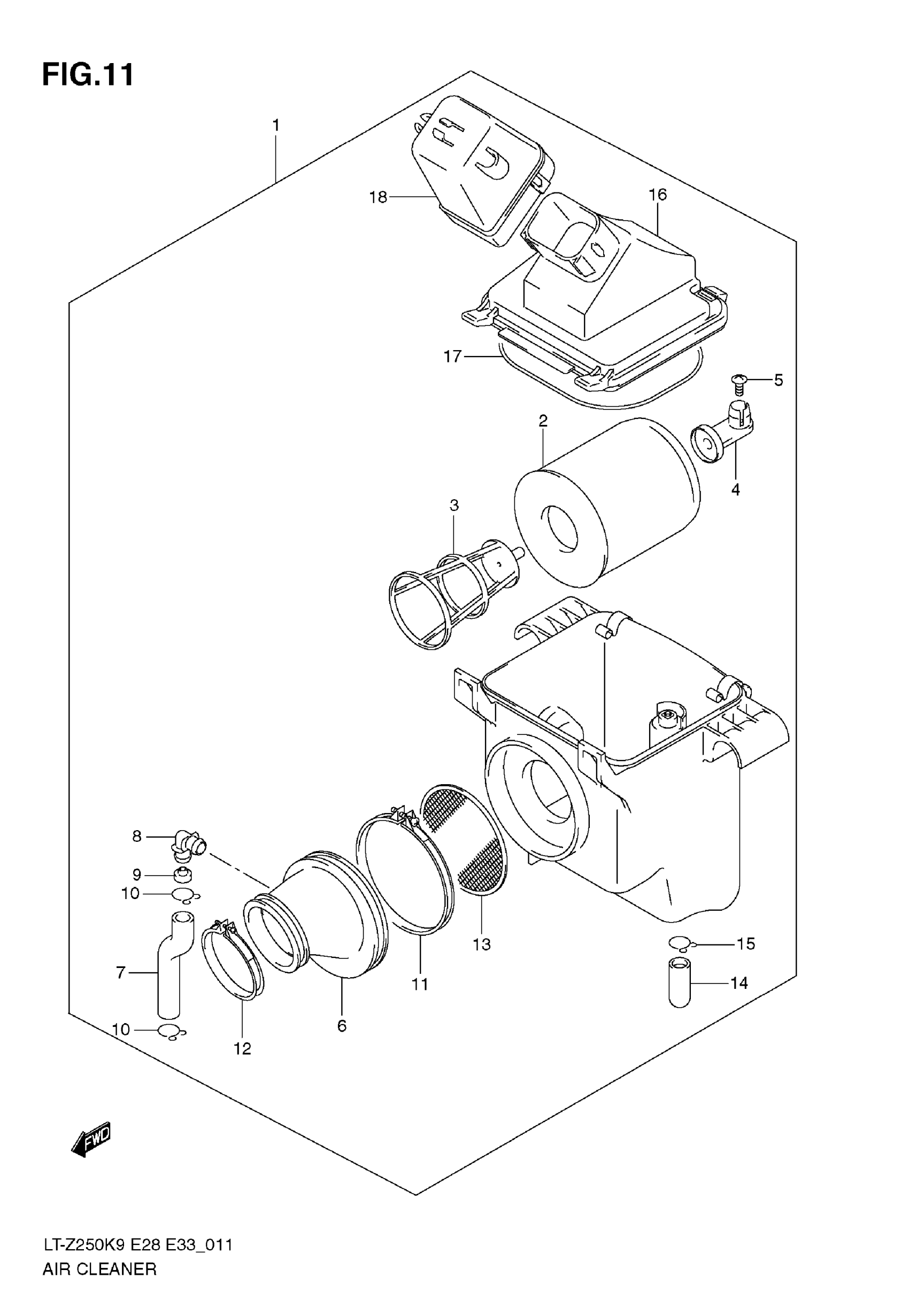

Suzuki LT-Z250 (2009) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY,AI | Includes Item(s) 2 - 18 This part replaces 13700-21G00.

13700-21G01

$331.06

2

FILTER ASSY

13780-05G00

$30.38

3

HOLDER, FILTER

13791-05G01

$12.11

4

STOPPER, HOLDER

13792-05G00

$4.32

5

SCREW

02142-0616B

$1.80

6

TUBR,OUTLET This part replaces 13881-21G00.

13881-21G01

$24.67

7

TUBE,BREATHER This part replaces 13853-05G00.

13853-05G01

$12.52

8

JOINT

13858-14D20

$6.80

9

JET,BREATHER This part replaces 13859-05G00.

13859-05G01

$6.32

10

CLIP

09401-14301

$2.17

11

CLAMP (CLEANER SIDE)

09402-98208

$6.49

12

CLAMP (CARBURETOR SIDE)

09402-58208

$4.84

13

TRAP, FLAME

13810-05G00

$13.73

14

.PLUG,DRAIN This part replaces 13878-09F00.

13878-09F01

$5.17

15

CLIP

09401-14301

$2.17

16

CAP,AIR CLNR This part replaces 13741-21G00.

13740-21G00

$66.45

17

GASKET

13746-05G00

$5.50

18

GUARD INLET

13896-21G00

$40.97
