Description

Price

1

PUMP, ENGINE OIL

16400-01412

$176.20

2

GEAR, DRIVEN (NT:47)

16331-05G00

$41.37

3

WASHER, PUMP DRIVEN GEAR

09181-08186

$2.06

4

PIN

09261-02001

$1.50

5

CIRCLIP

08332-1106A

$1.43

6

SCREW

02112-0620B

Unavailable

7

STRAINER,ENGINE This part replaces 16520-30A00.

16520-30A01

$9.27

8

FILTER ASSY, ENG OIL

16510-25C00

$6.94

9

O RING (D:1.9,ID:13)

09280-13004

$2.19

10

CAP, OIL FILTER

16512-05G10

$35.10

11

PLUG, OIL CHECK

01550-0812B

$2.73

12

GASKET

09168-08029

$2.31

13

O RING (D:2.4,ID:52.6)

09280-54001

$3.38

14

SPRING

09440-18002

$1.09

15

..BOLT

01547-0620B

$2.43

16

BOLT

01547-0680B

$2.92

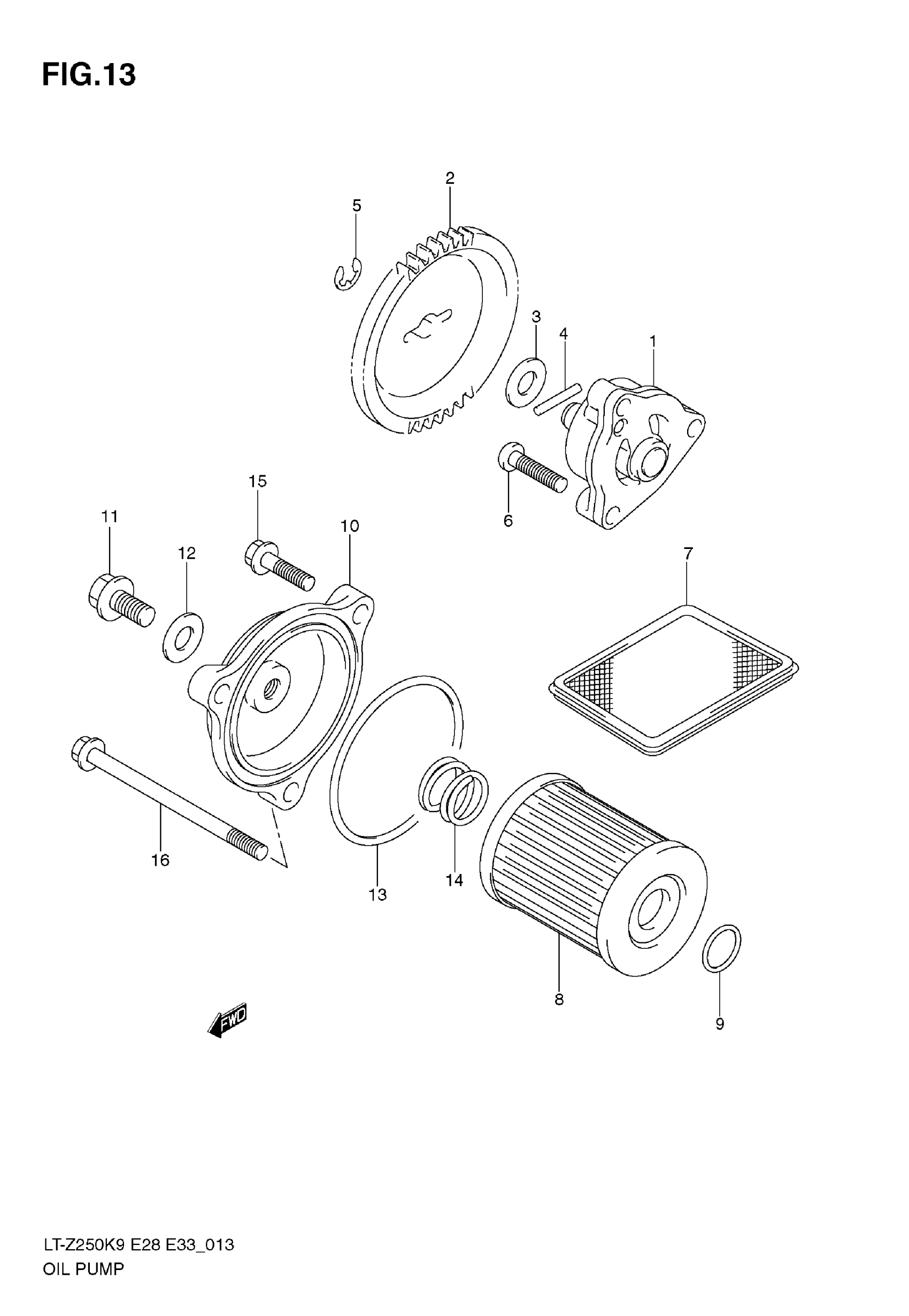

Suzuki LT-Z250 (2009) OIL PUMP Diagram
