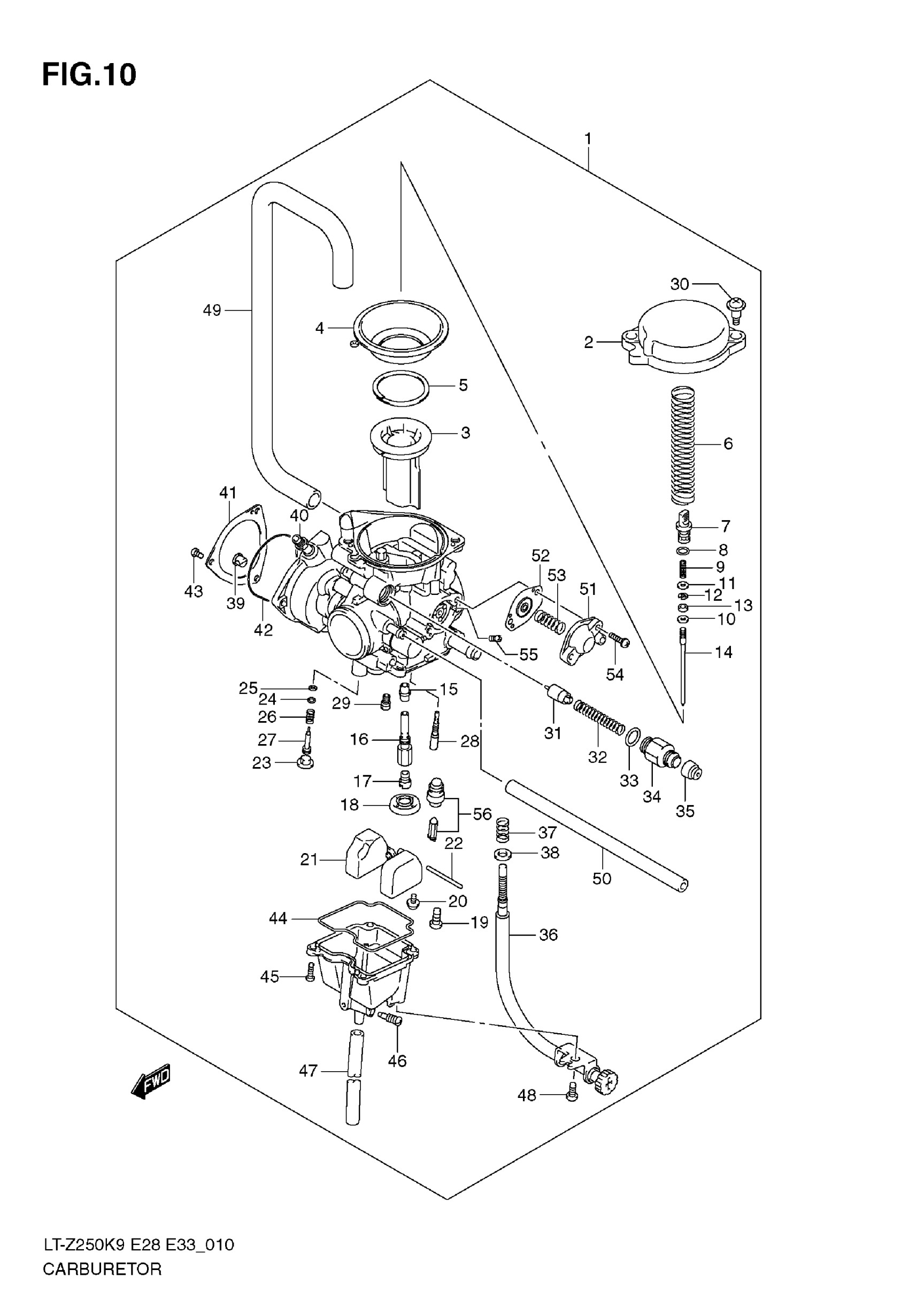

Suzuki LT-Z250 (2009) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY | Includes Item(s) 2 - 56

13200-21G10

$632.05

2

DIAPHRAGM COVER

13502-20B00

$55.78

3

PISTON VALVE

13501-13E20

$70.88

4

DIAPHRAGM This part replaces 13507-05G00.

13507-05G01

$25.00

5

RING

13504-16E00

$7.03

6

SPRING

13573-13E20

$15.43

7

HOLDER

13418-33E00

$5.20

8

O RING

09280-05004

$2.17

9

SPRING

13481-13F00

$4.92

10

WASHER

13291-29FA0

$2.80

11

WASHER

13382-19E00

$3.35

12

E RING

13394-17E60

$1.89

13

RING

13387-13F00

$7.48

14

NEEDLE, JET

13383-21G00

$23.08

15

JET, NEEDLE

13341-19E60

$45.25

16

HOLDER, JET

13342-21G10

$28.60

17

JET, MAIN

09491-25010

$11.98

18

HOLDER

13387-08G00

$7.98

19

SCREW This part replaces 02112-04083.

02112-0408A

$1.09

20

SCREW

13602-05A10

$3.26

21

FLOAT ASSY

13250-04F00

$31.80

22

.PIN, FLOAT

13254-01010

$3.41

23

PLUG

13281-05A00

$4.21

24

O-RING This part replaces 13295-29900.

13295-29901

$3.97

25

WASHER

13291-29900

$1.87

26

SPRING,THROTTLE SCREW

13268-48700

$3.97

27

ADJUSTER

13279-21G00

$14.18

28

JET, PILOT

09492-20024

$18.87

29

JET, MAIN

09491-57003

$12.38

30

SCREW

13247-33E00

$2.80

31

PLUNGER ASSY

13411-39D20

$30.40

32

SPRING

13417-07F00

$6.61

33

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.89

34

HOLDER, GUIDE

13418-07F00

$16.05

35

.CAP This part replaces 13681-04010.

13681-04011

$4.51

36

ADJUST SCREW ASSY

13267-07G00

$100.37

37

SPRING

13268-03110

$6.15

38

WASHER

13615-05G00

$3.67

39

CABLE GUIDE

13579-05G00

$7.16

40

NUT

13607-98410

Unavailable

41

COVER

13502-02C10

$13.19

42

O RING

13673-20B00

$7.16

43

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

44

O RING

13258-04F00

$9.06

45

SCREW

02112-04107

$1.55

46

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.56

47

HOSE

13684-21G00

Unavailable

48

SCREW

02112-05107

$1.43

49

HOSE This part replaces 13683-21G00.

13683-21G01

$30.06

50

.HOSE | L:600!160 This part replaces 09352-50903-600.

09352-50006-600

$6.75

51

COVER ASSY

13502-10F00

$44.80

52

DIAPHRAGM ASSY This part replaces 13480-055A0.

13480-055A1

$15.81

53

SPRING

13271-13F00

$5.17

54

SCREW

13601-04148

$2.80

55

JET, PILOT AIR

09493-34003

$18.52

56

VALVE ASSY,NEED This part replaces 13370-21G00.

13370-21G01

$71.15
