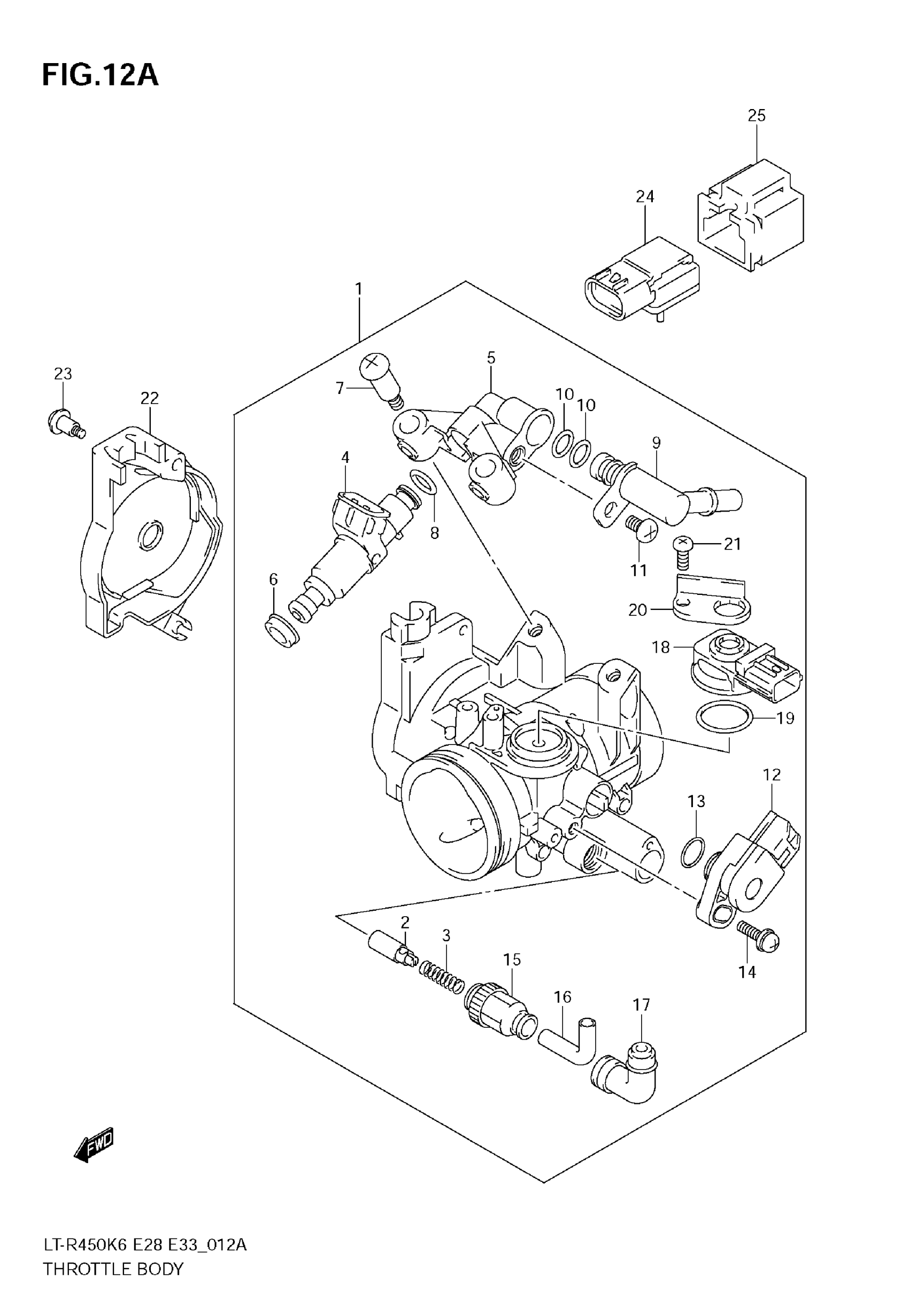

Suzuki LT-R450 (2009) THROTTLE BODY (MODEL K9) Diagram

#

Description
Price

1

BODY ASSY,THROT | Includes Item(s) 2 - 21 This part replaces 13400-45G10.

13400-45G11

$643.15

2

VALVE, STARTER

13410-45G01

$80.66

3

SPRING

13271-45G00

$5.81

4

INJECTOR ASSY This part replaces 15710-45G00.

15710-45G01

$233.72

5

PIPE, FUEL

13471-45G00

$37.66

6

RING, SEAL

15722-45G00

$14.52

7

SCREW

13601-45G00

$2.97

8

O RING

15721-45G00

$11.72

9

JOINT

13685-45G00

$40.73

10

.O-RING

15721-24F00

$8.31

11

SCREW

13452-45G00

$4.05

12

SENSOR ASSY

13580-18G00

$191.97

13

O RING

13575-40F00

$3.85

14

SCREW

13605-40F00

$3.50

15

HOLDER, CABLE

13581-45G00

$3.41

16

GUIDE, CABLE

13579-45G00

$14.35

17

CAP

13681-45G00

$6.40

18

SENSOR, MAP

15620-05H00

$304.30

19

.O RING This part replaces 15621-05H00.

15621-05H01

$10.22

20

PLATE

15622-05H00

Unavailable

21

SCREW

02112-14087

$2.58

22

COVER

13484-45G00

$39.33

23

SCREW

13601-11F00

$2.80

24

SENSOR, AIR PRESSURE

15620-10G00

$250.95

25

HOLDER

15625-10G00

$14.00
