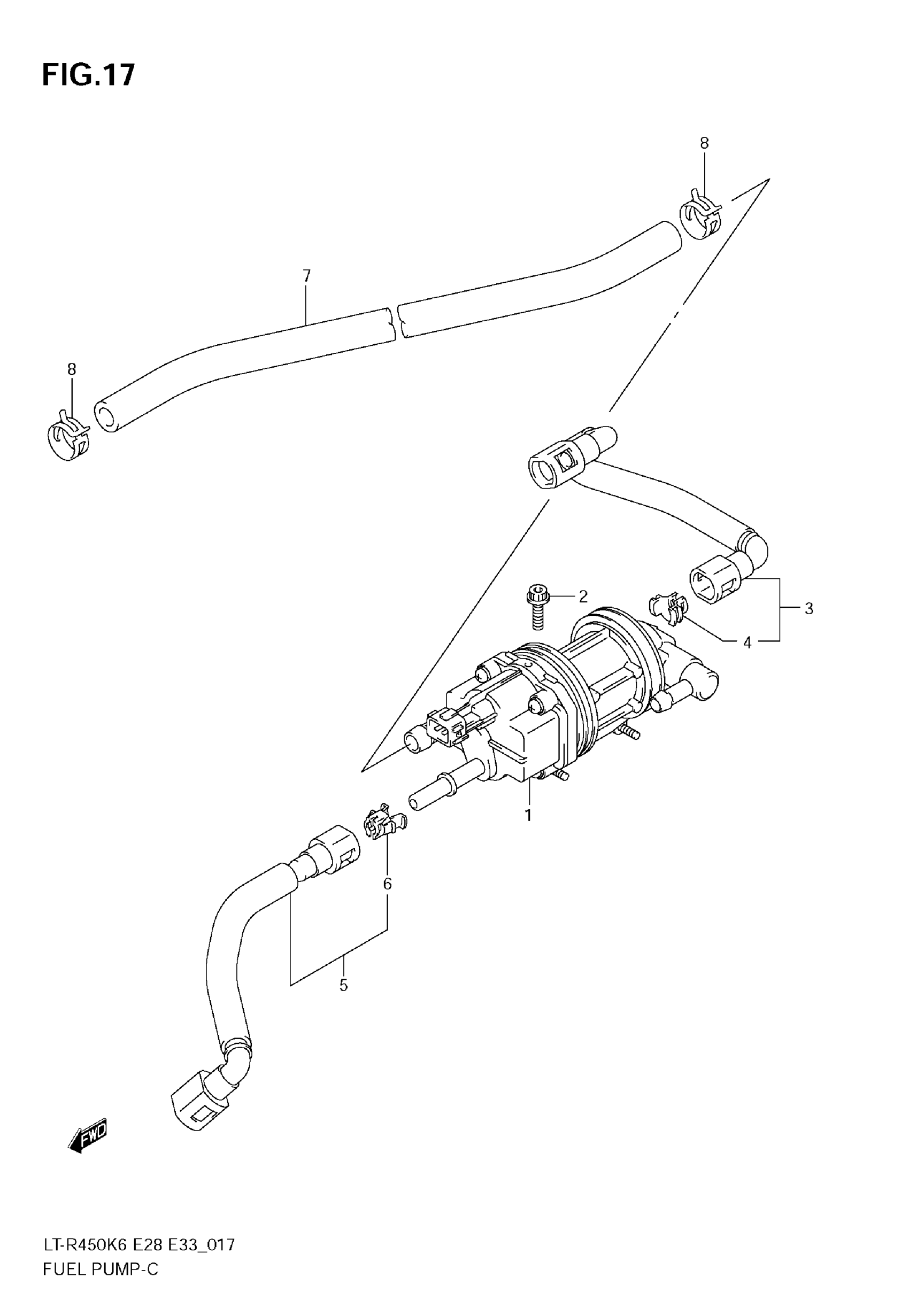

Suzuki LT-R450 (2009) FUEL PUMP Diagram

#

Description

Price

1

PUMP ASSY,FUEL This part replaces 15100-45G01.

15100-45G03

$292.91

2

BOLT

07120-0616B

$2.47

3

HOSE,FUEL | Includes Item(s) 4 This part replaces 15810-45G00.

15810-45G01

$46.06

4

RETAINER

15815-35F00

$7.16

5

HOSE,FUEL NO.2 | Includes Item(s) 6 This part replaces 15820-45G00.

15820-45G01

$42.31

6

RETAINER

15815-35F00

$7.16

7

HOSE, FUEL NO.3 | MODEL K6/K7/K8 This part replaces 15831-45G01.

15831-45G10

$60.80

7

HOSE, FUEL NO.3 | MODEL K9

15831-45G10

$60.80

8

CLIP

09401-16407

$2.53
