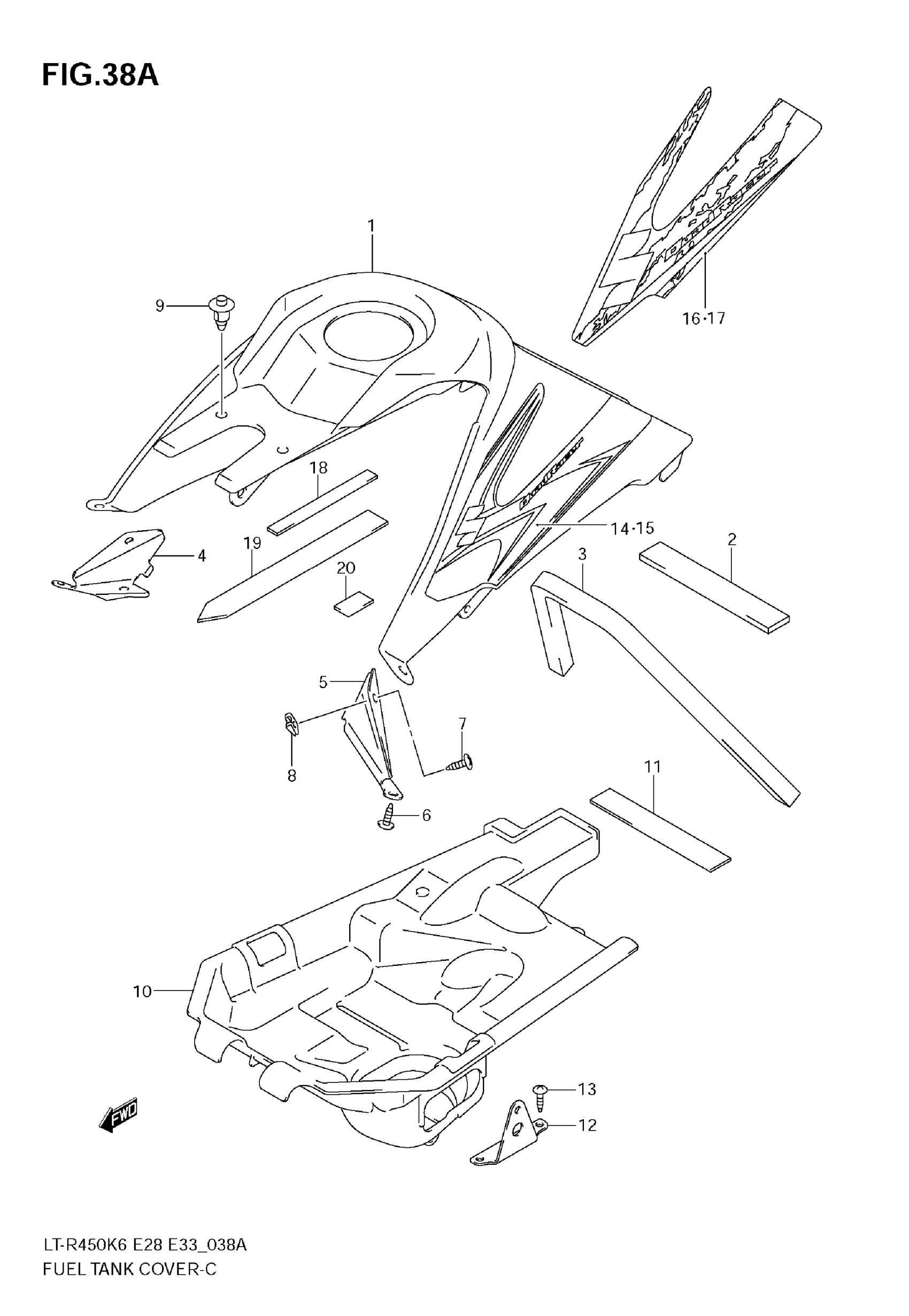

Suzuki LT-R450 (2009) FUEL TANK COVER (MODEL K8) Diagram

#

Description
Price

1

COVER, FUEL TANK (YELLOW)

44271-45G00-YU1

$228.48

1

COVER, FUEL TANK (WHITE)

44271-45G00-30H

Unavailable

1

COVER, FUEL TANK (BLACK) | LT-R450Z

44271-45G00-019

$220.02

2

CUSHION, NO.1

47451-38A01

$5.00

3

CUSHION, NO.2

44555-45G00

Unavailable

4

BRACKET, RH

44174-45G00

$11.70

5

BRACKET, LH

44184-45G00

$11.48

6

SCREW, BRACKET

03241-0516A

$1.23

7

SCREW, COVER REAR

03241-1516A

$1.97

8

NUT (M5)

09148-05045

$2.51

9

CLIP

09409-07333

$2.29

10

COVER, FUEL TANK LOWER

44391-45G00

$195.85

11

CUSHION

47451-38A01

$5.00

12

BRACKET, HOSE GUIDE

44460-45G00

$16.10

13

SCREW

03241-1516A

$1.97

14

TAPE, COVER RH | FOR 30H

68115-45G20-ELZ

Unavailable

14

TAPE, COVER RH | FOR YU1

68115-45G20-EMA

Unavailable

15

TAPE, COVER LH | FOR 30H

68116-45G20-ELZ

Unavailable

15

TAPE, COVER LH | FOR YU1

68116-45G20-EMA

Unavailable

16

TAPE, COVER RH | LT-R450Z

68115-45G30-EUR

Unavailable

17

TAPE, COVER RH | LT-R450Z

68116-45G30-EUR

Unavailable

18

CUSHION, COVER NO.1

44556-45G00

Unavailable

19

CUSHION, COVER NO.3

44557-45G00

$19.97

20

CUSHION, LOWER

44558-45G00

Unavailable
