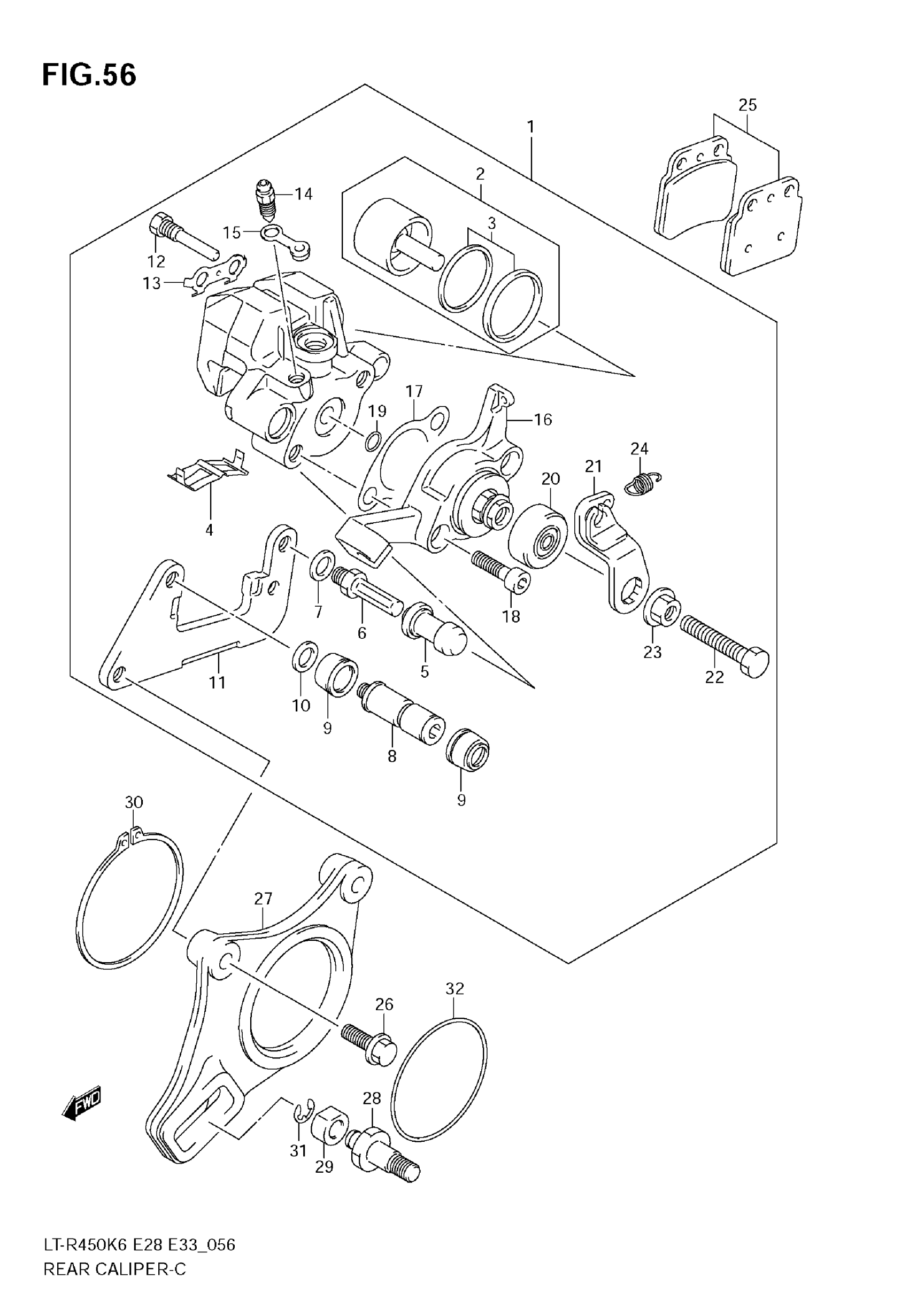

Suzuki LT-R450 (2009) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR | Includes Item(s) 2 - 24

69100-45G00-999

$614.07

2

PISTON SET

69100-19850

$79.55

3

..SEAL SET,PISTON

69100-13820

$8.02

4

SPRING, PAD

59315-13A00

$12.43

5

BOOT

59386-13A00

$7.28

6

BOLT

59382-13A00

$7.24

7

WASHER

59314-13A00

$2.28

8

PIN

69305-19A00

$26.35

9

BOOT

59303-13A00

$5.46

10

SPRING

59306-13A00

$3.57

11

BRACKET

69151-45G00

$61.30

12

PIN

59345-13A00

$7.88

13

WASHER

59346-13A00

$4.70

14

BLEEDER

59121-01A00

$7.99

15

CAP, BLEEDER

59122-01A00

$3.97

16

PARKING

69320-45G00

Unavailable

17

PACKING

69326-19A01

$10.42

18

BOLT

69321-19A00

$10.17

19

O RING

69322-19A00

$5.42

20

BOOT

69329-19A00

$8.21

21

ARM

69325-45G00

Unavailable

22

BOLT, ADJUST

69127-07G00

$7.67

23

NUT

69323-19A00

$5.52

24

SPRING

69328-45G00

$9.08

25

PAD SET

69100-01810

$73.17

26

BOLT

09103-08409

$3.82

27

BRACKET, RR CALIPER

69721-45G00

$248.52

28

STOPPER, RR CALIPER BRACKET

69727-45G00

$42.82

29

BUSH, RR CALIPER BRACKET

69728-45G00

$32.32

30

CIRCLIP, RR CALIPER BRACKET

09380-72003

$13.48

31

E-RING, BUSH

08332-1109A

$1.81

32

O RING

09280-70009

$4.26
