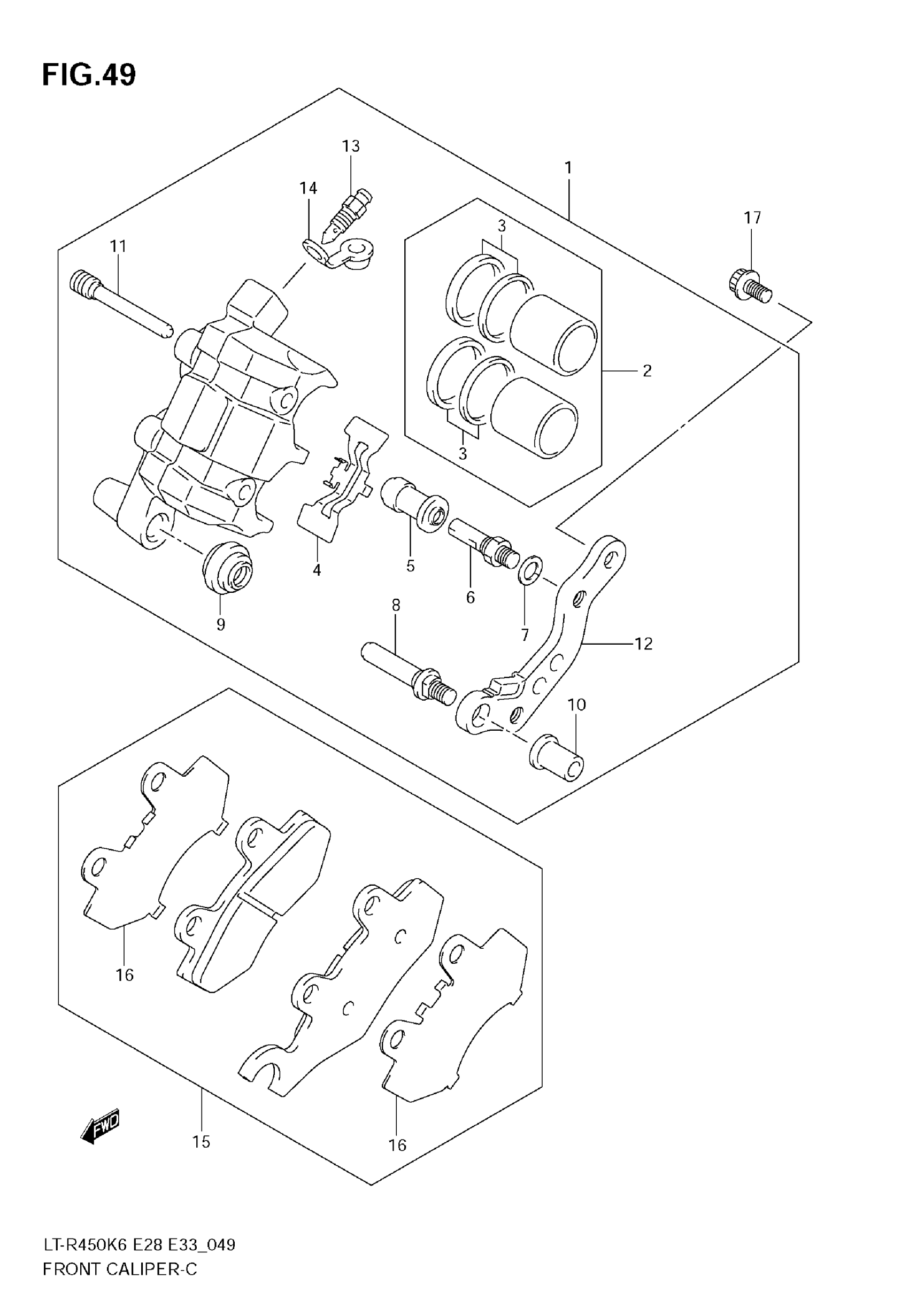

Suzuki LT-R450 (2009) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-09F20-999

$458.27

1

CALIPER ASSY, FRONT LH | Includes Item(s) 2 - 14

59300-09F20-999

$458.27

2

PISTON SET

59100-39830

$69.75

3

SEAL SET, PISTON

59300-21860

$26.75

4

SPRING, PAD

59315-00B20

$13.90

5

BOOT

59386-13A00

$7.28

6

PIN

59382-13A00

$7.24

7

WASHER

59314-13A00

$2.28

8

PIN

59387-00B20

$17.46

9

BOOT

59303-14500

$5.06

10

NUT

59388-00B20

$20.13

11

PIN

59345-00B20

$13.38

12

BRACKET, RH

59351-00B20

$87.92

12

BRACKET, LH

59151-47E00

$82.58

13

BLEEDER

59121-01A00

$7.99

14

CAP

59122-01A00

$3.97

15

PAD & SHIM SET, RH

59100-09860

Unavailable

15

PAD & SHIM SET, LH | Includes Item(s) 16

59100-09870

$89.08

16

SHIM

69132-31D00

$10.38

17

BOLT

09106-08174

$3.08
