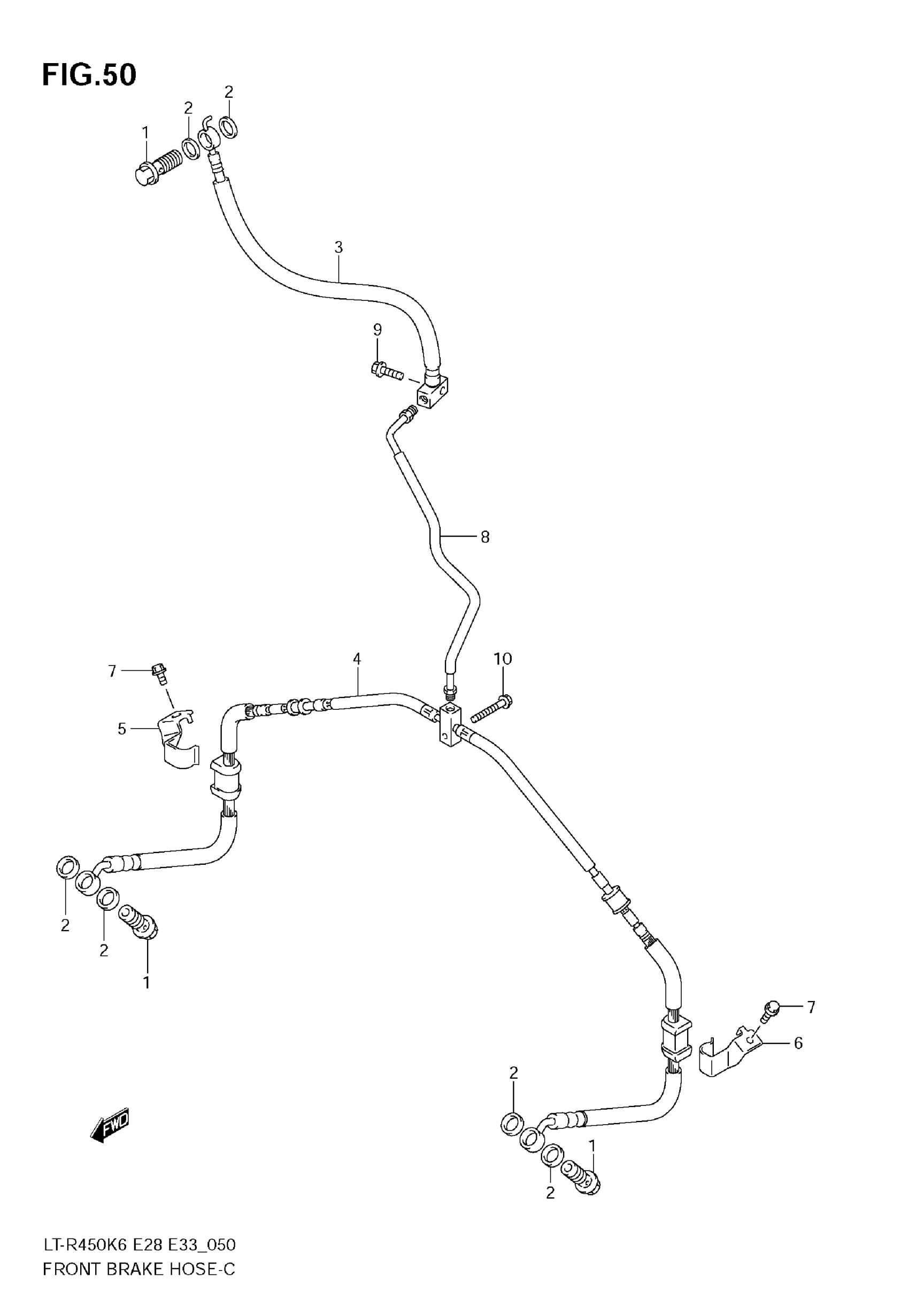

Suzuki LT-R450 (2009) FRONT BRAKE HOSE Diagram

#

Description

Price

1

BOLT

09360-10062

$5.81

2

WASHER (10X15X1.5)

09161-10009

$1.83

3

HOSE | MODEL K6/K7/K8 This part replaces 59480-45G00.

59480-45G01

$148.80

3

HOSE, FRONT BRAKE NO.1 | MODEL K9

59480-45G10

Unavailable

4

HOSE, FRONT BRAKE NO.2 | MODEL K6/K7/K8 This part replaces 59240-45G00.

59240-45G10

Unavailable

4

HOSE, FRONT BRAKE NO.2 | MODEL K9

59240-45G10

Unavailable

5

CLAMP, HOSE NO.2 RH

59261-45G00

$12.35

6

CLAMP, HOSE NO.2 LH

59271-45G00

$12.35

7

BOLT

01547-0610A

$1.47

8

PIPE, FRONT BRAKE

59250-45G00

$26.50

9

BOLT, FR BRAKE HOSE NO.1

01547-0616A

$2.01

10

BOLT, FR BRAKE HOSE NO.2

01547-0625A

$2.01
