2009 Suzuki LT-R450 OIL Pump Diagram

← All diagrams

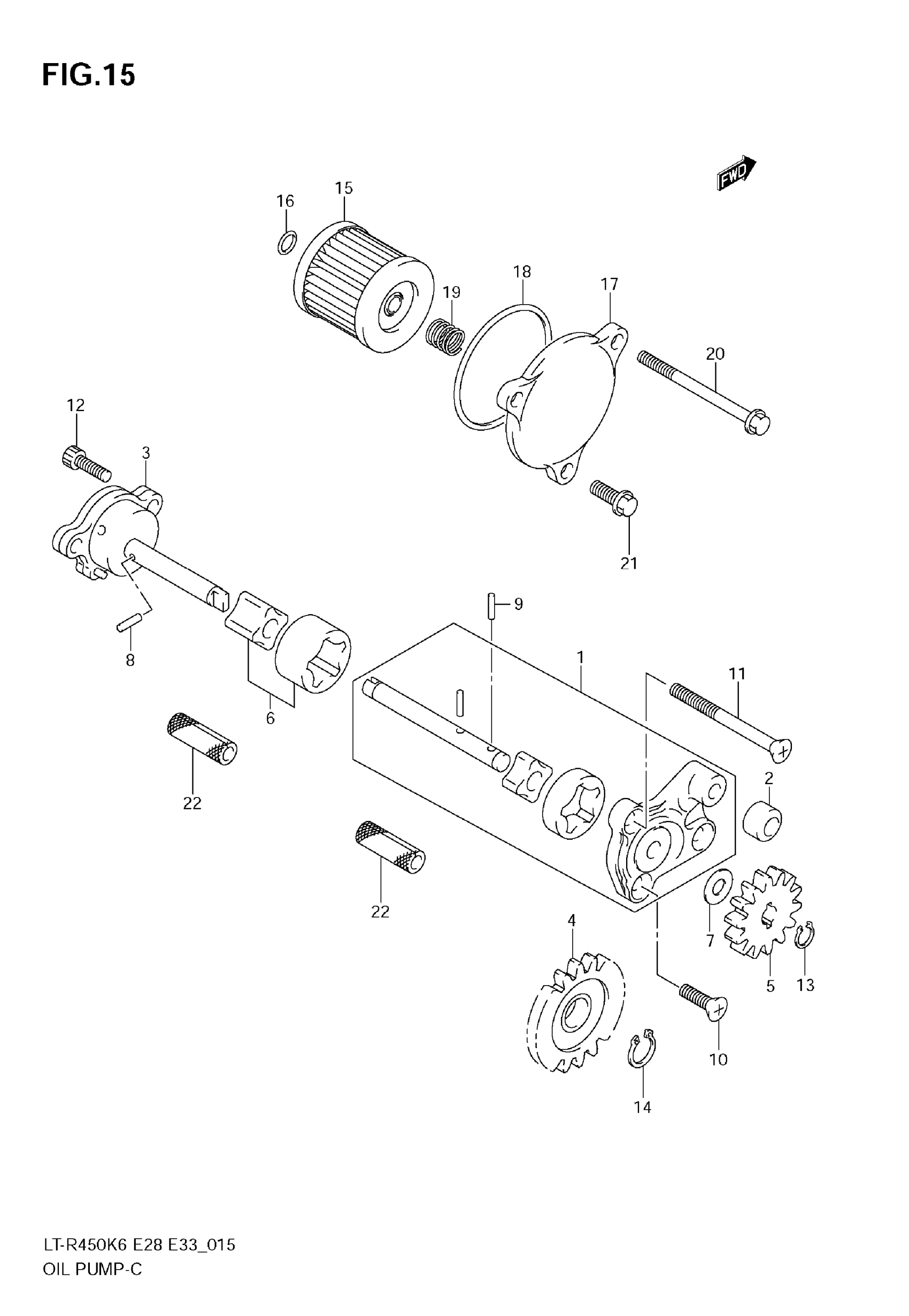

Find the part on the OIL Pump diagram for your 2009 Suzuki LT-R450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-R450 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENGINE OIL | MODEL K6/K7/K8

16400-45G00

1
Out of stock

1

PUMP ASSY, ENGINE OIL | MODEL K9

16400-45G10

1
Out of stock

2

SEAL

16491-45G00

1
Out of stock

3

PUMP ASSY, T/M OIL

16300-45G00

1
Out of stock

4

GEAR, OIL PUMP IDLE

16321-45G00

1
Out of stock

5

GEAR, OIL PUMP DRIVEN

16331-45G00

1
Out of stock

6

ROTOR SET,OIL PUMP | MODEL K6/K7/K8

16410-45G00

1
Out of stock

6

ROTOR SET,OIL PUMP | MODEL K9

16410-45G10

1
Out of stock

7

WASHER

09181-08186

1
Out of stock

8

PIN

09261-02008

1

$1.77

In stock

9

PIN

09261-03017

1
Out of stock

10

SCREW | MODEL K6/K7/K8

02122-0620B

2
Out of stock

10

SCREW | MODEL K9

02122-0620A

2
Out of stock

11

SCREW | MODEL K6/K7/K8

02122-0665B

1
Out of stock

11

SCREW | MODEL K9

02122-0665A

1

$3.08

In stock

12

BOLT | MODEL K6/K7/K8

07130-0620B

2
Out of stock

12

BOLT | MODEL K9

07130-0620A

2
Out of stock

13

CIRCLIP This part replaces 08331-31086.

08331-31089

1
Out of stock

14

CIRCLIP This part replaces 08331-31126.

08331-3112A

1
Out of stock

15

FILTER, ENGINE OIL

16510-29F00

1
Out of stock

16

O RING

09280-13004

1
Out of stock

17

CAP, OIL FILLER

16512-47E00

1
Out of stock

18

O RING

09280-54001

1
Out of stock

19

SPRING

09440-18002

1
Out of stock

20

BOLT

09103-06239

1
Out of stock

21

BOLT

09103-06274

2

$2.18

In stock

22

STRAINER, OIL

16520-35G00

2
Out of stock
