2009 Suzuki LT-R450 Crank Balancer Diagram

← All diagrams

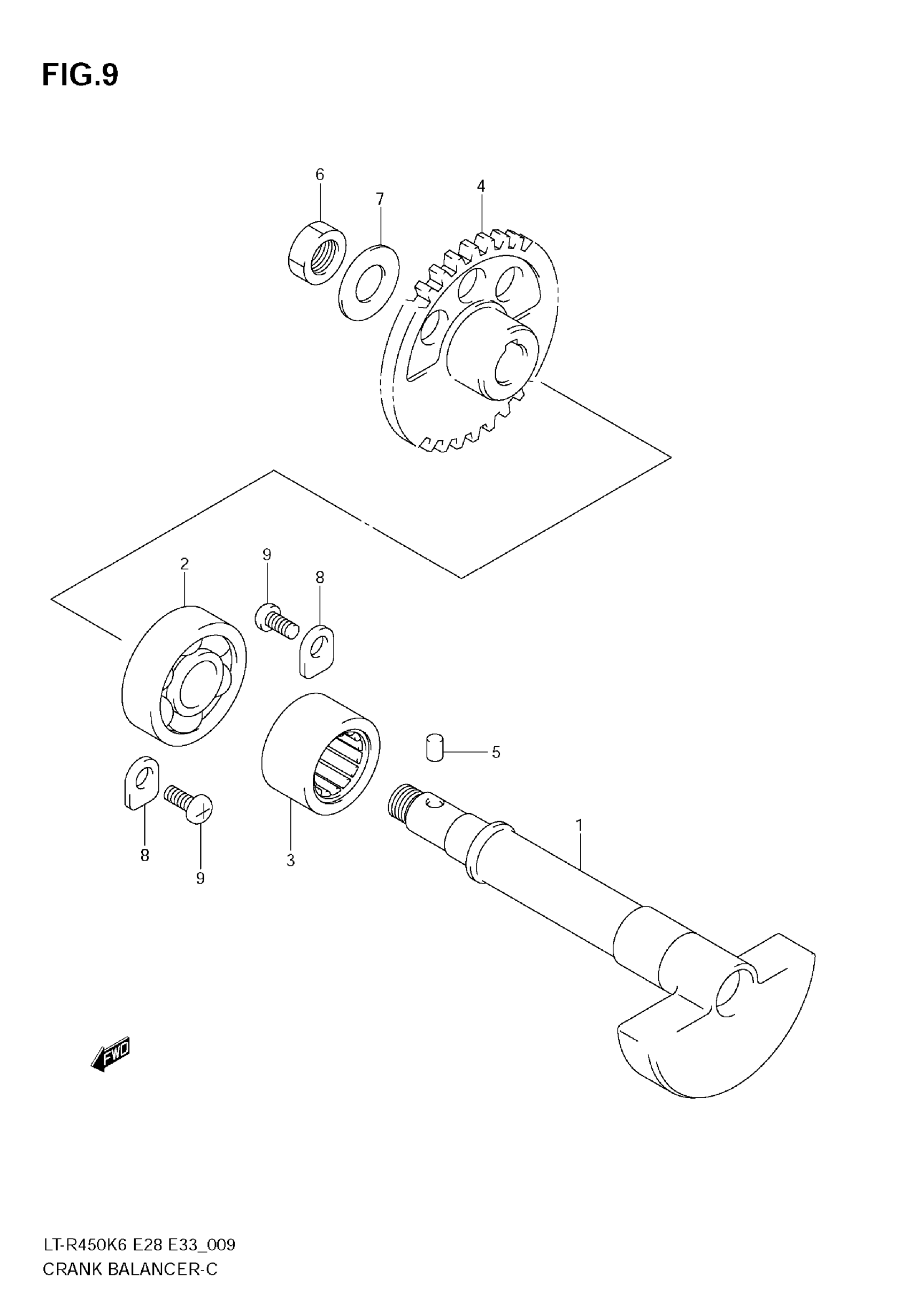

Find the part on the Crank Balancer diagram for your 2009 Suzuki LT-R450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki LT-R450 Crank Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BALANCER, CRANK

12651-45G00

1
Out of stock

2

BEARING, RH

09262-15030

1
Out of stock

3

BEARING, LH

09263-20094

1
Out of stock

4

GEAR, DRIVEN

12666-45G00

1
Out of stock

5

PIN, INNER RACE

09261-05005

1
Out of stock

6

NUT

09140-12039

1
Out of stock

7

WASHER

08211-12262

1

$2.77

In stock

8

RETAINER, BEARING

24741-21A00

2
Out of stock

9

SCREW

09125-06110

2
Out of stock
