2009 Suzuki LT-R450 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2009 Suzuki LT-R450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

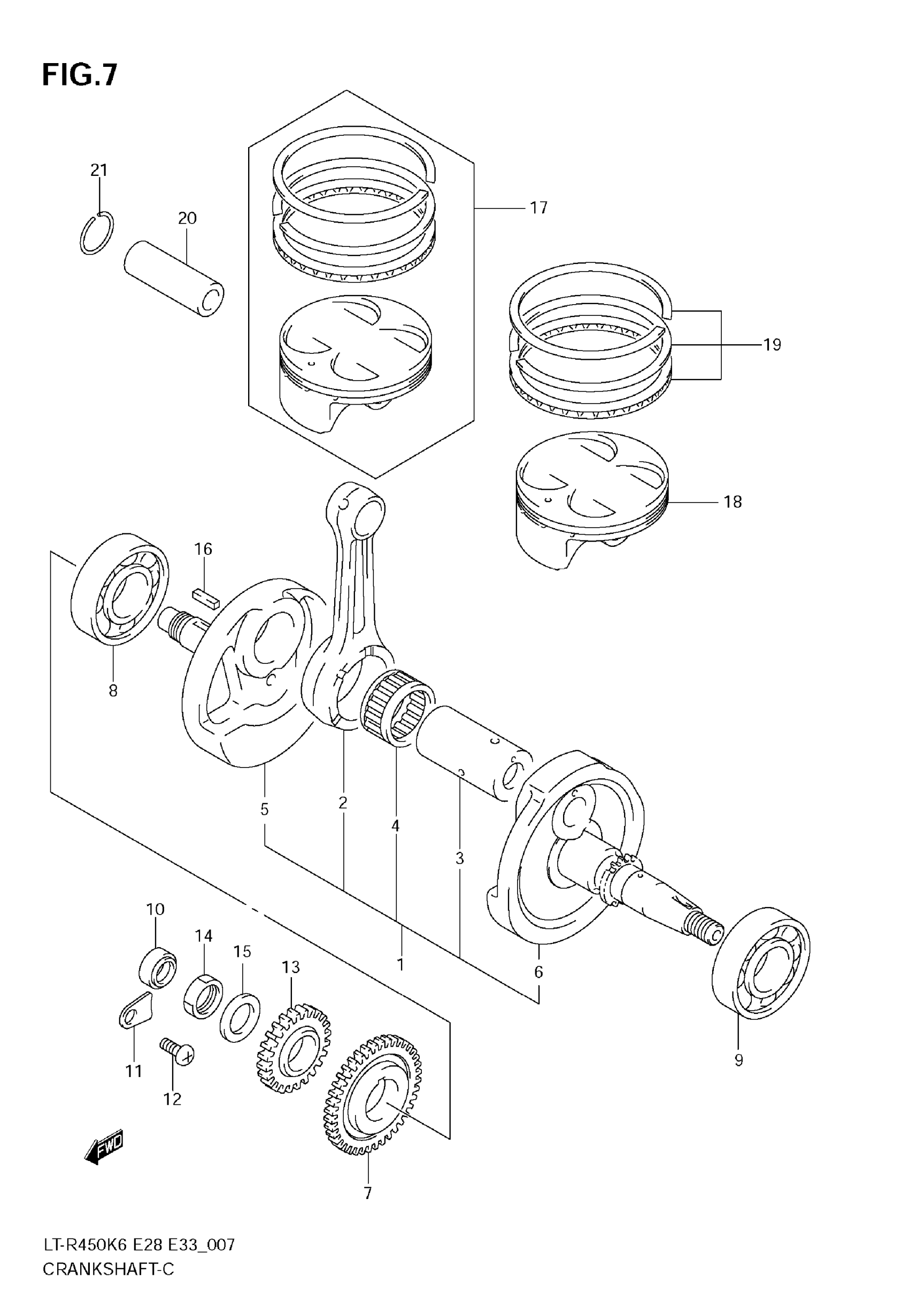

2009 Suzuki LT-R450 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 6 This part replaces 12200-45G10.

12200-45G11

1
Out of stock

2

ROD, CONNECTING

12160-45G10

1
Out of stock

3

PIN

12210-45G00

1
Out of stock

4

BEARING,34X42X2 This part replaces 09263-34009.

09263-34013

1
Out of stock

5

CRANKSHAFT, RH

12221-45G10

1
Out of stock

6

CRANKSHAFT, LH

12261-45G10

1
Out of stock

7

GEAR, BALANCER DRIVE

12661-45G01

1
Out of stock

8

BEARING, RH

09262-30116

1
Out of stock

9

BEARING, LH

09262-32015

1
Out of stock

10

OIL SEAL, RH (14X24X6)

09282-14006

1
Out of stock

11

RETAINER, OIL SEAL RH

24742-18A00

1
Out of stock

12

SCREW

02112-0612B

1
Out of stock

13

GEAR, PRIMARY DRIVE

21111-45G00

1
Out of stock

14

NUT

09140-18012

1
Out of stock

15

WASHER

09164-18008

1
Out of stock

16

KEY, GEAR

09421-05009

1
Out of stock

17

PISTON SET | MODEL K6/K7

12100-45840

1
Out of stock

18

PISTON | MODEL K8/K9

12111-45G10-0F0

1
Out of stock

19

RING SET, PISTON | MODEL K8/K9

12140-45G10

1
Out of stock

20

PIN, PISTON

12151-45G00

1
Out of stock

21

CIRCLIP

09381-19005

2
Out of stock
