2007 Suzuki LT-F500F Steering Knuckle Diagram

← All diagrams

Find the part on the Steering Knuckle diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

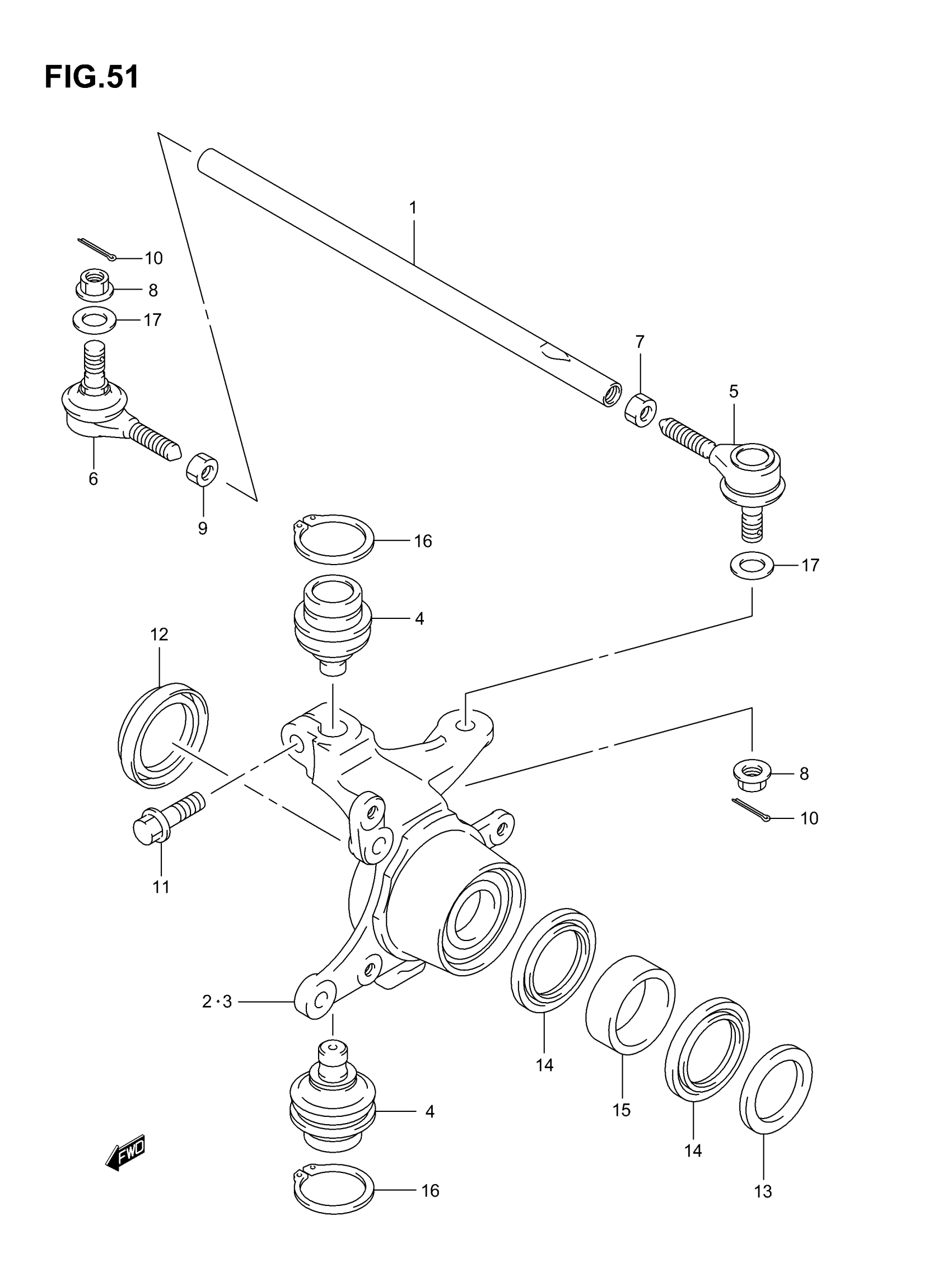

2007 Suzuki LT-F500F Steering Knuckle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TIE ROD, STEERING

51281-03G00

2
Out of stock

2

KNUCKLE, STEERING RH

51231-03GG0

1
Out of stock

3

KNUCKLE, STEERING LH

51241-03GG0

1
Out of stock

4

END,KNUCKLE STEERING

51210-38F00

4
Out of stock

5

ROD, END RH (RH THREAD)

51260-21G00

2
Out of stock

6

ROD, END (LH THREAD)

51270-21G00

2
Out of stock

7

NUT, TIE ROD (RH THREAD) | MODEL K4/K5/K6

09140-10043

2
Out of stock

7

NUT, TIE-ROD RH | MODEL K7

51283-21G00

2
Out of stock

8

NUT This part replaces 08314-40103.

08314-4010B

4
Out of stock

9

NUT, TIE ROD (LH THREAD)

09140-10027

2
Out of stock

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

4
Out of stock

11

BOLT, KNUCKLE (10X30)

51233-09F00

4
Out of stock

12

DUST SEAL, INNER (38X55X8)

09283-38012

2
Out of stock

13

DUST SEAL, OUTER (38X55X6.4)

09283-38022

2
Out of stock

14

BEARING

08123-60067

4
Out of stock

15

SPACER,HUB BEARING

54731-03G00

2
Out of stock

16

CIRCLIP This part replaces 08331-31306.

08331-31309

4
Out of stock

17

WASHER, ROD END | MODEL K4/K5/K6

09162-10008

4
Out of stock

17

WASHER, ROD END | MODEL K7

09162-10010

4
Out of stock
