2007 Suzuki LT-F500F Handle BAR Diagram

← All diagrams

Find the part on the Handle BAR diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

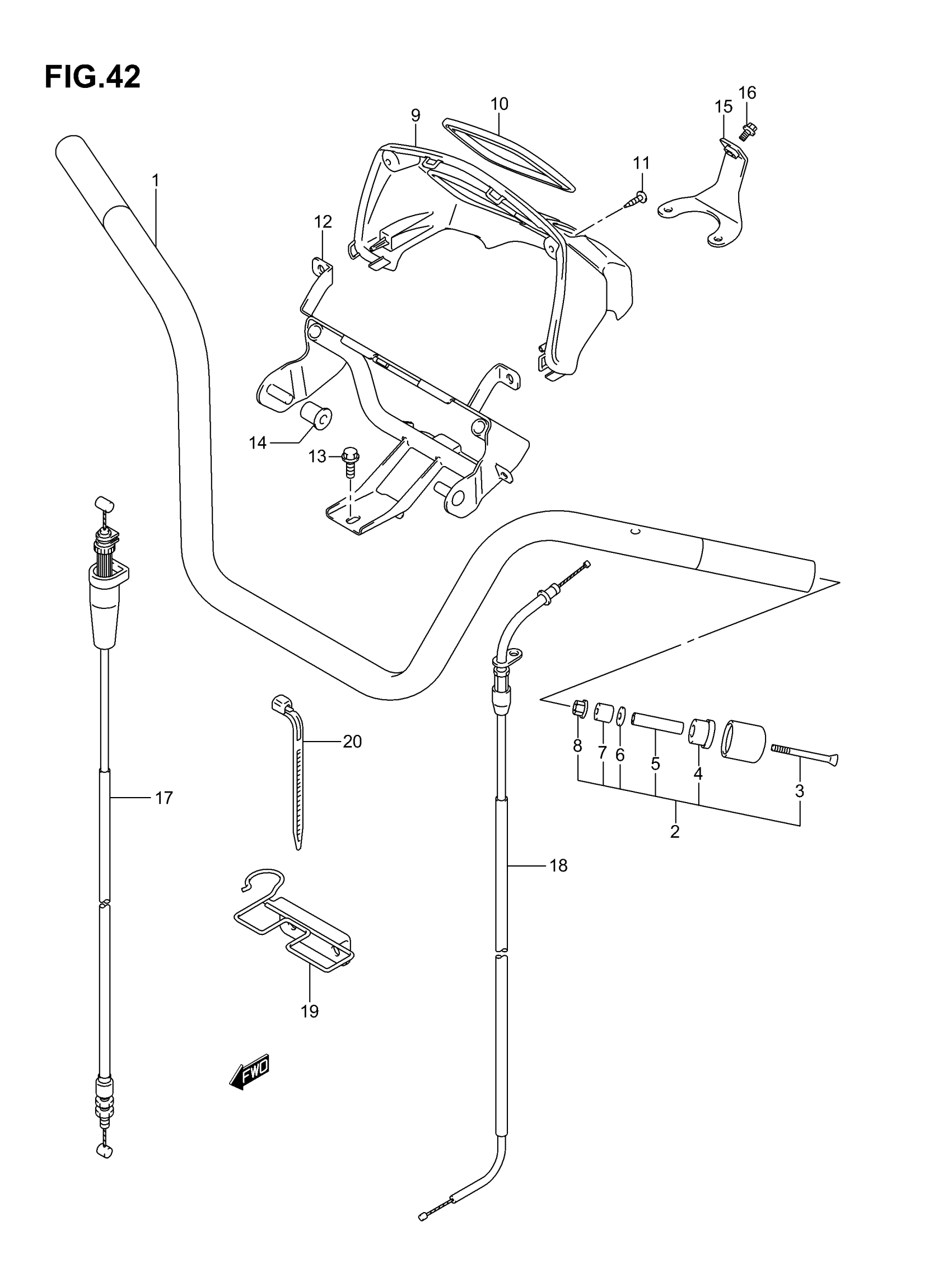

2007 Suzuki LT-F500F Handle BAR Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLE BAR

56111-03G10

1
Out of stock

2

BALANCER SET,HA | Includes Item(s) 3 - 8 This part replaces 56200-03850.

56200-03851

2
Out of stock

3

SCREW

09127-06021

2
Out of stock

4

EXPANDER, OUTER

56272-10D00

2
Out of stock

5

SPACER

56276-17D00

2
Out of stock

6

WASHER (6.5X14X2.0)

09160-06126

2
Out of stock

7

.EXPANDER,HANDLE BALANCER

56272-42F00

2
Out of stock

8

NUT

09159-06024

2
Out of stock

9

COVER, HANDLE REAR (BLACK)

56321-03G00-291

1
Out of stock

10

MOLDING

56317-03G00

1
Out of stock

11

SCREW This part replaces 03541-05163.

03541-0516A

2
Out of stock

12

BRACE, COVER

56160-03G00

1
Out of stock

13

BOLT This part replaces 01550-08203.

01550-0820A

2
Out of stock

14

CUSHION This part replaces 09320-07016.

09320-07020

2
Out of stock

15

BRACKET, METER COVER

56190-03G00

1
Out of stock

16

BOLT This part replaces 09103-05018.

09103-05017

1
Out of stock

17

CABLE ASSY, THROTTLE | MODEL K4

58300-03GJ0

1
Out of stock

17

CABLE ASSY, THROTTLE | MODEL K5/K6/K7

58300-03GK0

1
Out of stock

18

CABLE, STARTER

58410-03GF0

1
Out of stock

19

GUIDE, CABLE

58620-03G00

1
Out of stock

20

CLAMP

09403-10405

1
Out of stock
