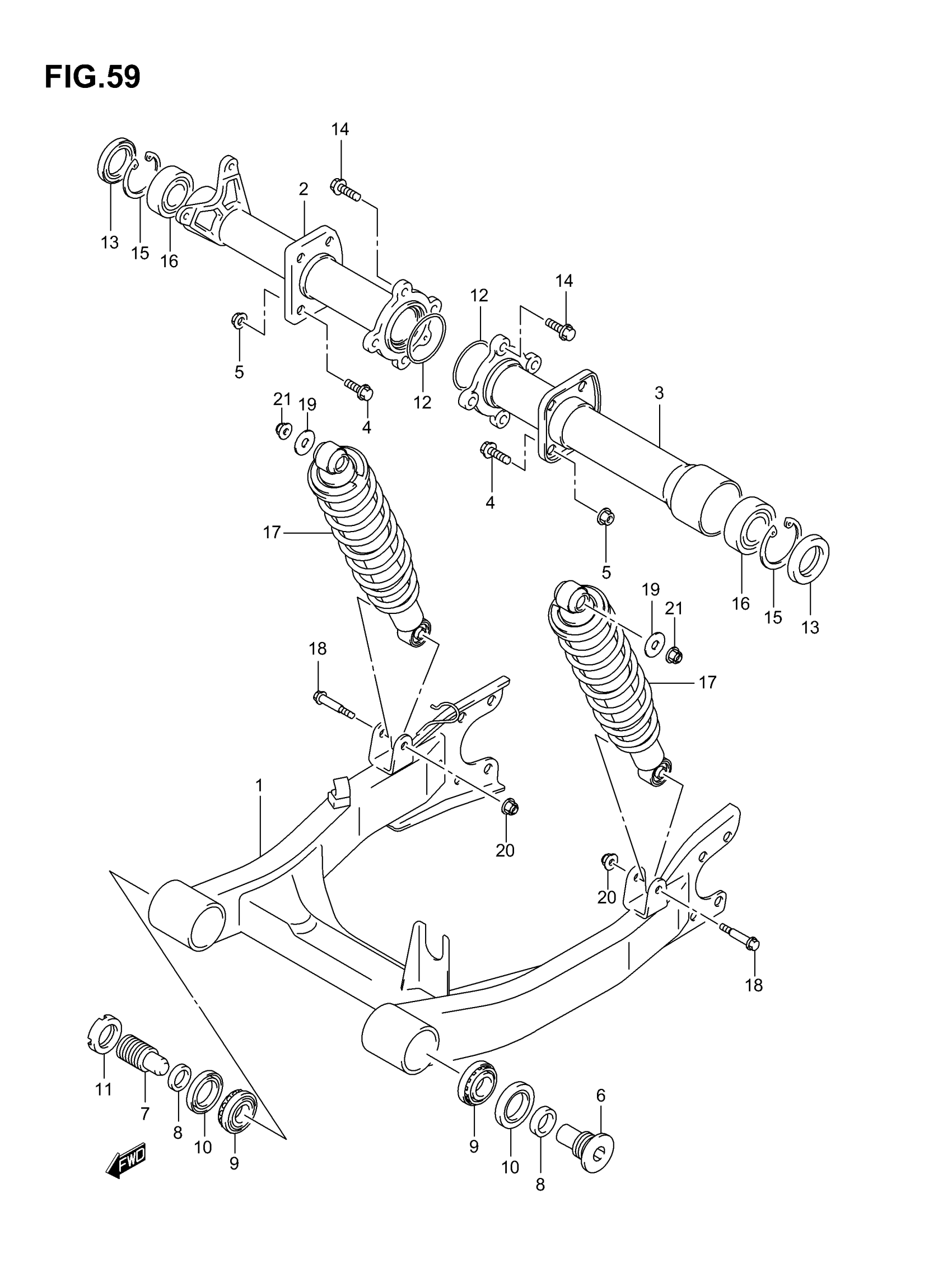

Suzuki LT-F500F (2007) REAR SWINGINGARM Diagram

#

Description
Price

1

SWINGINGARM, REAR

61100-03G00

Unavailable

2

HOUSING, REAR AXLE R

61300-03G20

$302.57

3

HOUSING, REAR AXLE L

61400-03G20

$254.80

4

BOLT, REAR SWGARM BRACKET

09103-10216

$3.82

5

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

6

BOLT, PIVOT L

61213-03G20

$41.45

7

BOLT, PIVOT R

61213-03G30

$39.13

8

SPACER, PIVOT

61251-03G00

$11.75

9

BEARING, PIVOT

09265-17014

$23.05

10

SEAL,OIL This part replaces 09285-25003.

09285-25007

$6.45

11

NUT, PIVOT

61214-03G00

$31.28

12

O RING, REAR AXLE HOUSING

09280-70005

$5.62

13

SEAL, REAR AXLE HOUSING

09283-38022

$11.74

14

BOLT, AXLE HOUSING | MODEL K4/K5/K6

09103-10343

$3.06

14

BOLT, AXLE HOUSING (10X30) | MODEL K7 This part replaces 09103-10410.

09103-10421

$4.75

15

CLIP | MODEL K4/K5/K6 This part replaces 08331-41556.

08331-41559

$3.38

15

CIRCLIP | MODEL K7

08331-41559

$3.38

16

BEARING, HUB

08123-60067

$26.29

17

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K4

62100-03GG0-019

Unavailable

17

ABSORBER ASSY, REAR SHOCK (BLACK) | MODEL K5/K6/K7

62100-03GH0-019

$237.07

18

BOLT

09103-10126

$4.07

19

WASHER, UPPER OUTER

09160-10501

$2.33

20

NUT, REAR SWGARM BRACKET This part replaces 09159-10058.

09159-10115

$3.21

21

NUT This part replaces 08319-31103.

08319-3110A

$2.73
