2007 Suzuki LT-F500F Rear BOX Diagram

← All diagrams

Find the part on the Rear BOX diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

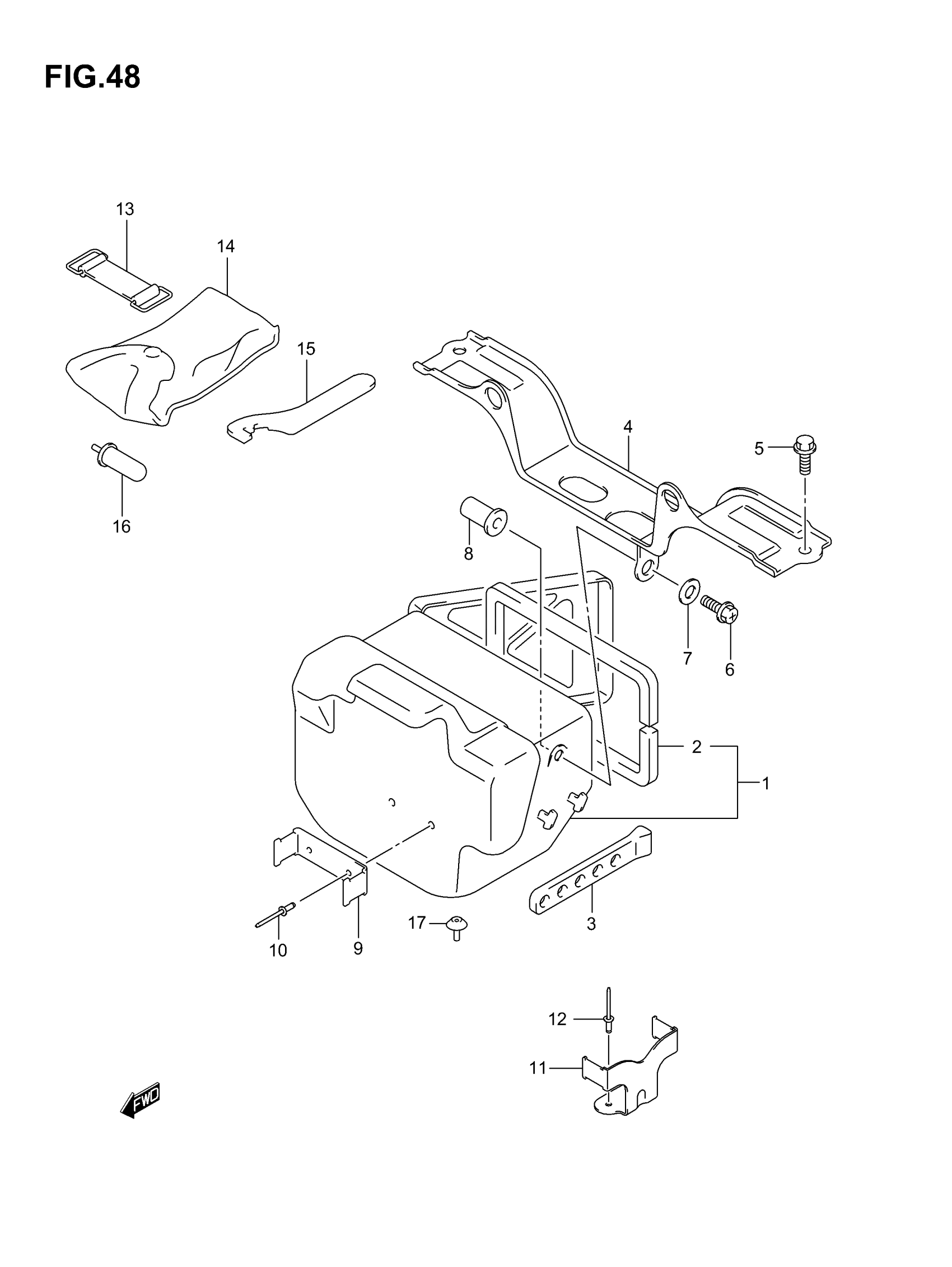

2007 Suzuki LT-F500F Rear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL K4 This part replaces 93110-03GA0.

93110-03GA1

1
Out of stock

1

BOX, REAR | MODEL K5/K6/K7; Includes Item(s) 2

93110-03GB0

1
Out of stock

2

MOLDING

93114-38FA0

1
Out of stock

3

BAND, BOX

93191-09F11

1
Out of stock

4

HOLDER, BOX

93140-03G01

1
Out of stock

5

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

6

2

$2.85

In stock

7

WASHER

09160-05043

2
Out of stock

8

NUT

09159-05019

2
Out of stock

9

PLATE,CDI UNIT This part replaces 47413-09FA0.

47413-09FA1

1
Out of stock

10

RIVET

09229-04025

2
Out of stock

11

PLATE, FUSE BOX

47417-03G00

1
Out of stock

12

RIVET

09229-04038

2
Out of stock

13

BAND, TOOL | MODEL K4/K5/K6 This part replaces 09462-00073.

09462-00093

1
Out of stock

13

O RING(D:3.5,ID | MODEL K7 This part replaces 09280-63003.

09280-61004

1
Out of stock

14

TOOL ASSY This part replaces 09800-21040.

09800-21090

1
Out of stock

15

CLAMP,WRENCH

09822-00003

1
Out of stock

16

GAUGE ASSY,AIR PRESSUR

96200-18A02

1
Out of stock

17

PLUG,RR BOX This part replaces 93115-03G00.

93115-03G01

3
Out of stock
