2007 Suzuki LT-F500F Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 2007 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

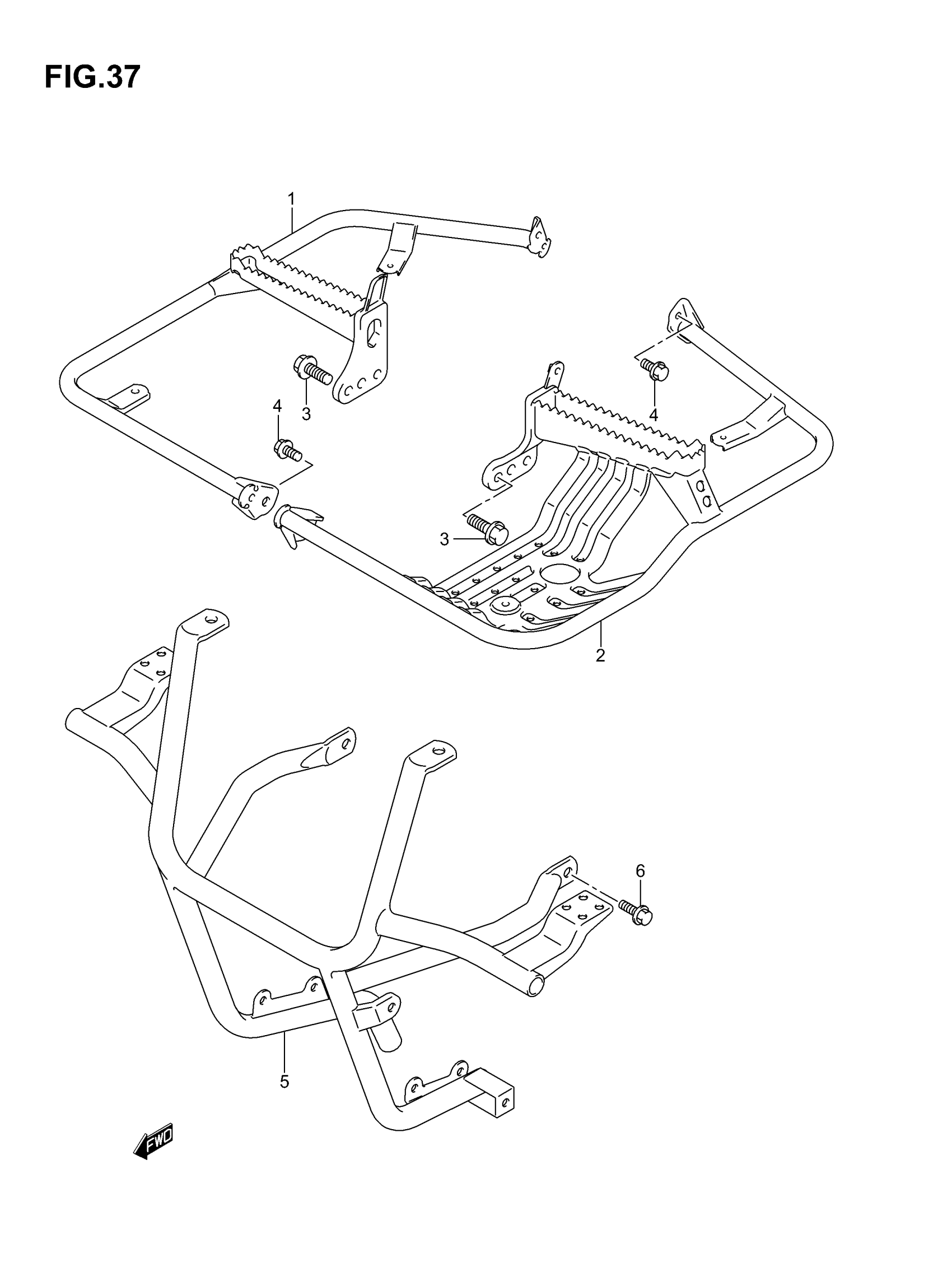

2007 Suzuki LT-F500F Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FOOTREST, FRONT RH

43510-03GF0

1
Out of stock

2

FOOTREST, FRONT LH

43520-03GF0

1
Out of stock

3

BOLT, CENTER

09103-10275

4
Out of stock

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

5

GRIP, FRONT

43990-03G01

1

$282.09

In stock

6

BOLT This part replaces 01550-08203.

01550-0820A

4
Out of stock
