2003 Suzuki LT-F500F Radiator Hose Diagram

← All diagrams

Find the part on the Radiator Hose diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

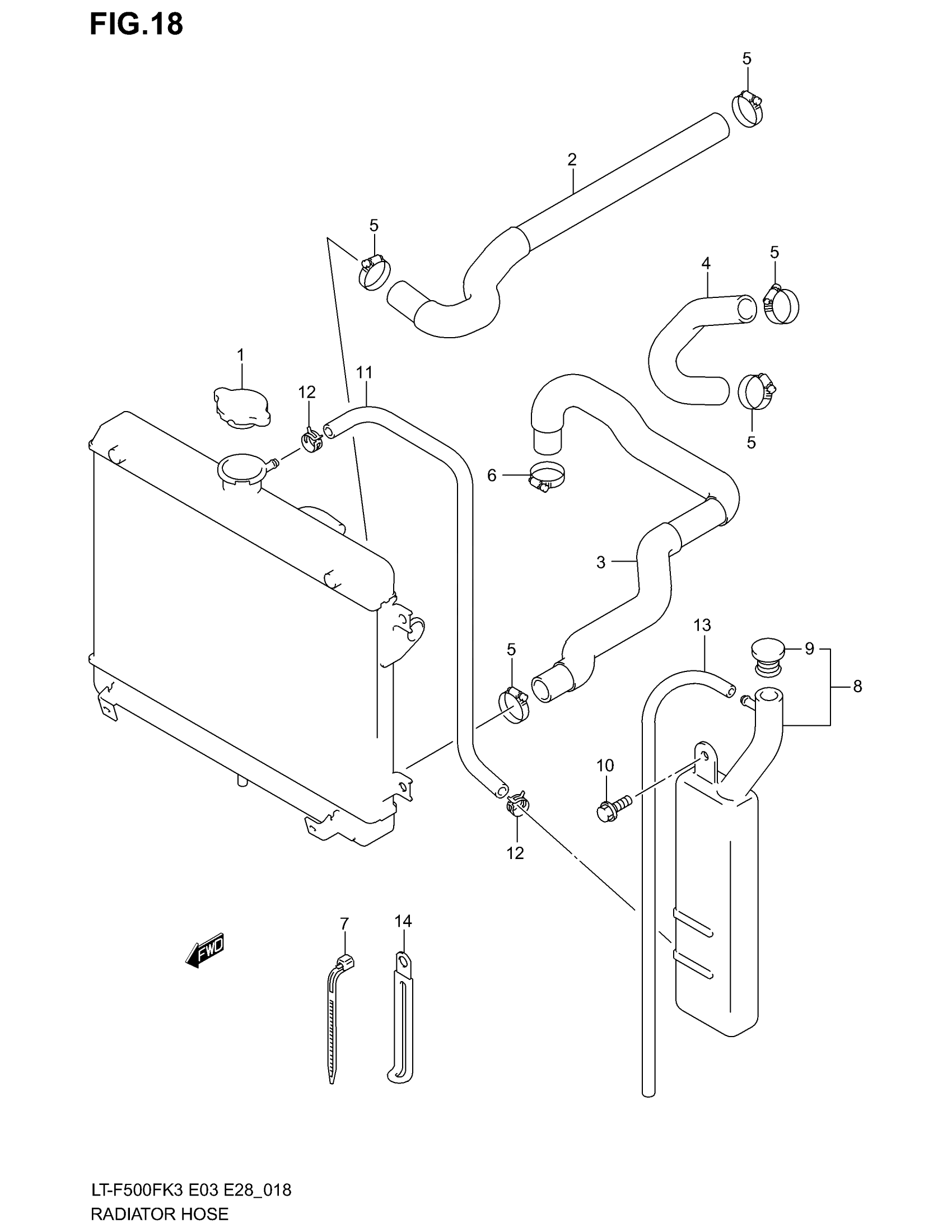

2003 Suzuki LT-F500F Radiator Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

1
Out of stock

2

HOSE, RADIATOR INLET

17851-03GF0

1
Out of stock

3

HOSE, RADIATOR OUTLET

17852-03GF0

1
Out of stock

4

HOSE, WATER PUMP OUTLET

17854-09F00

1
Out of stock

5

CLAMP

09402-32511

5
Out of stock

6

CLAMP

09402-38511

1
Out of stock

7

CLAMP, WATER HOSE (L:235)

09407-25401

1
Out of stock

8

TANK ASSY, RESERVOIR | Includes Item(s) 9

17910-03G00

1
Out of stock

9

CAP, RESERVOIR TANK

17932-12C00

1
Out of stock

10

BOLT

09116-06168

2
Out of stock

11

HOSE SET, RESERVOIR TANK INLE This part replaces 17981-42E00.

17900-27810

1
Out of stock

12

CLIP

09401-08411

2
Out of stock

13

HOSE, OVERFLOW | L:600!440

09352-50901-600

1
Out of stock

14

CLAMP This part replaces 09404-06432.

09404-06039

2
Out of stock
