2003 Suzuki LT-F500F Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

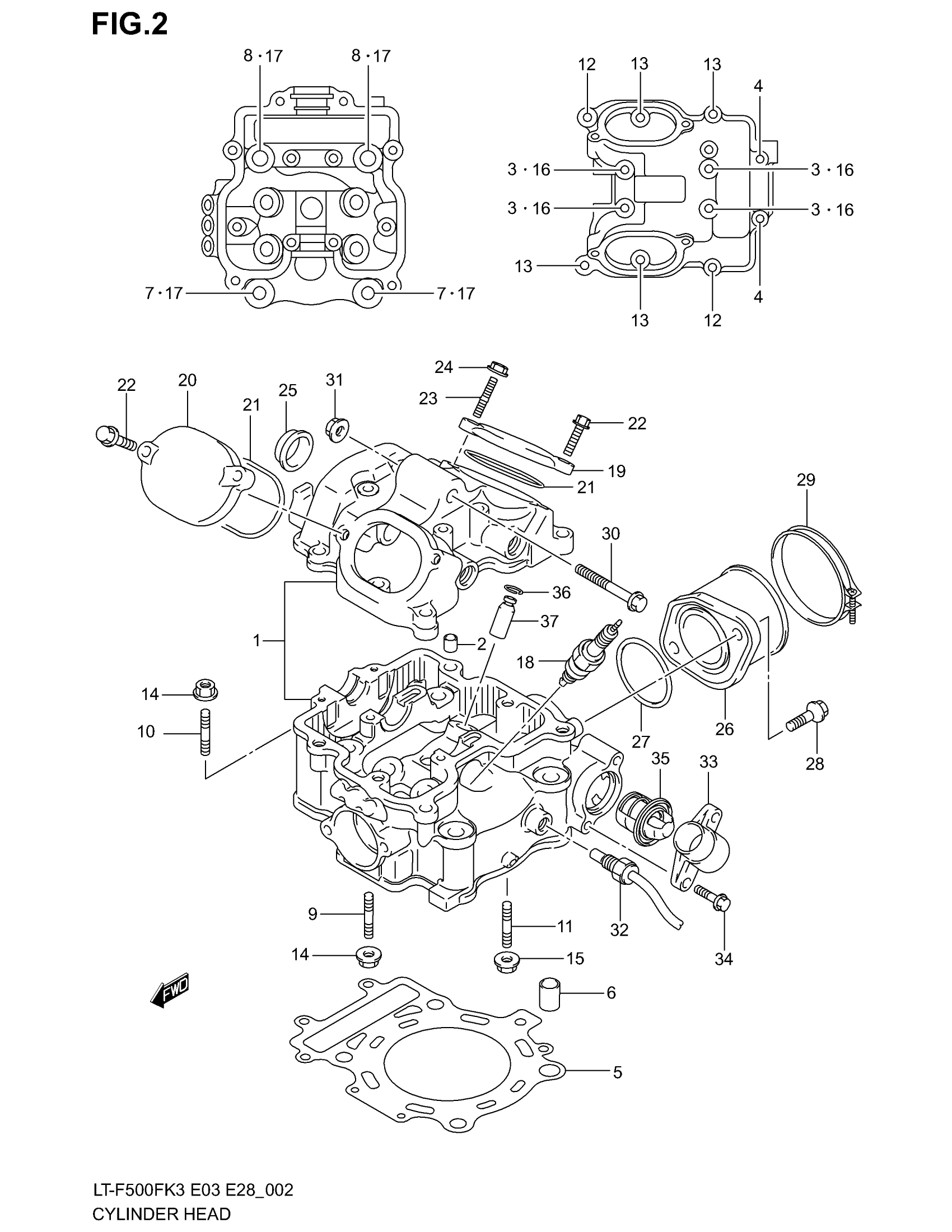

2003 Suzuki LT-F500F Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 4

11100-44D00

1
Out of stock

2

PIN

09206-08001

2
Out of stock

3

BOLT (6X55)

09103-06102

4
Out of stock

4

BOLT This part replaces 01550-06303.

01550-0630A

2
Out of stock

5

GASKET, CYLINDER HEAD

11141-09F00

1
Out of stock

6

PIN

04211-13189

2
Out of stock

7

BOLT (10X190)

09103-10179

2
Out of stock

8

BOLT (L:200)

09103-10180

2
Out of stock

9

STUD BOLT This part replaces 01421-06253.

01421-0625A

2
Out of stock

10

BOLT,STUD This part replaces 01421-06503.

01421-0650B

2
Out of stock

11

STUD BOLT This part replaces 01421-08503.

01421-0850A

1
Out of stock

12

BOLT (6X35)

09103-06108

2
Out of stock

13

BOLT This part replaces 01550-06253.

01550-0625A

4
Out of stock

14

NUT This part replaces 08316-10063.

08316-1006B

4
Out of stock

15

NUT This part replaces 08316-10083.

08316-1008B

1
Out of stock

16

WASHER

09168-06023

4
Out of stock

17

GASKET

09168-10017

4
Out of stock

18

SPARK PLUG (NGK,CR6E)

09482-00528

1
Out of stock

18

SPARK PLUG (DENSO,U20ESR-N)

09482-00529

1
Out of stock

18

SPARK PLUG (NGK,CR7E) | OPT

09482-00516

1
Out of stock

18

SPARK PLUG (DENSO,U22ESR-N) | OPT

09482-00515

1
Out of stock

18

SPARK PLUG (NGK,CR8E) | OPT

09482-00456

1
Out of stock

18

SPARK PLUG (DENSO,U24ESR-N) | OPT

09482-00457

1
Out of stock

19

CAP, INSPECTION

11175-03G10

1
Out of stock

20

CAP,INSPECTION

11175-47D00

1
Out of stock

21

.O RING,INSPECTION CAP

11177-14D01

2
Out of stock

22

BOLT This part replaces 01550-06203.

01550-0620A

3
Out of stock

23

BOLT, STUD

09108-06102

1
Out of stock

24

NUT This part replaces 08316-10063.

08316-1006B

1
Out of stock

25

PLUG, HEAD

09241-25007

1
Out of stock

26

PIPE ASSY,INTAK This part replaces 13101-03G00.

13101-03G01

1
Out of stock

27

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

1
Out of stock

28

SCREW

09119-06092

2
Out of stock

29

CLAMP

09402-52208

1
Out of stock

30

BOLT (8X60) This part replaces 09103-08345.

09103-08217

1
Out of stock

31

NUT This part replaces 08319-31088.

08319-3108A

1
Out of stock

32

SWITCH ASSY, WATER TEMP This part replaces 34850-03G00.

34850-03G20

1
Out of stock

33

COVER, THERMOSTAT

17661-44D00

1
Out of stock

34

BOLT This part replaces 01550-06203.

01550-0620A

2
Out of stock

35

THERMOSTAT,WATE This part replaces 17670-08D10.

17670-08D11

1
Out of stock

36

GASKET SET

11400-09891

1
Out of stock

37

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

1
Out of stock
← Cylinder Gasket Set →
