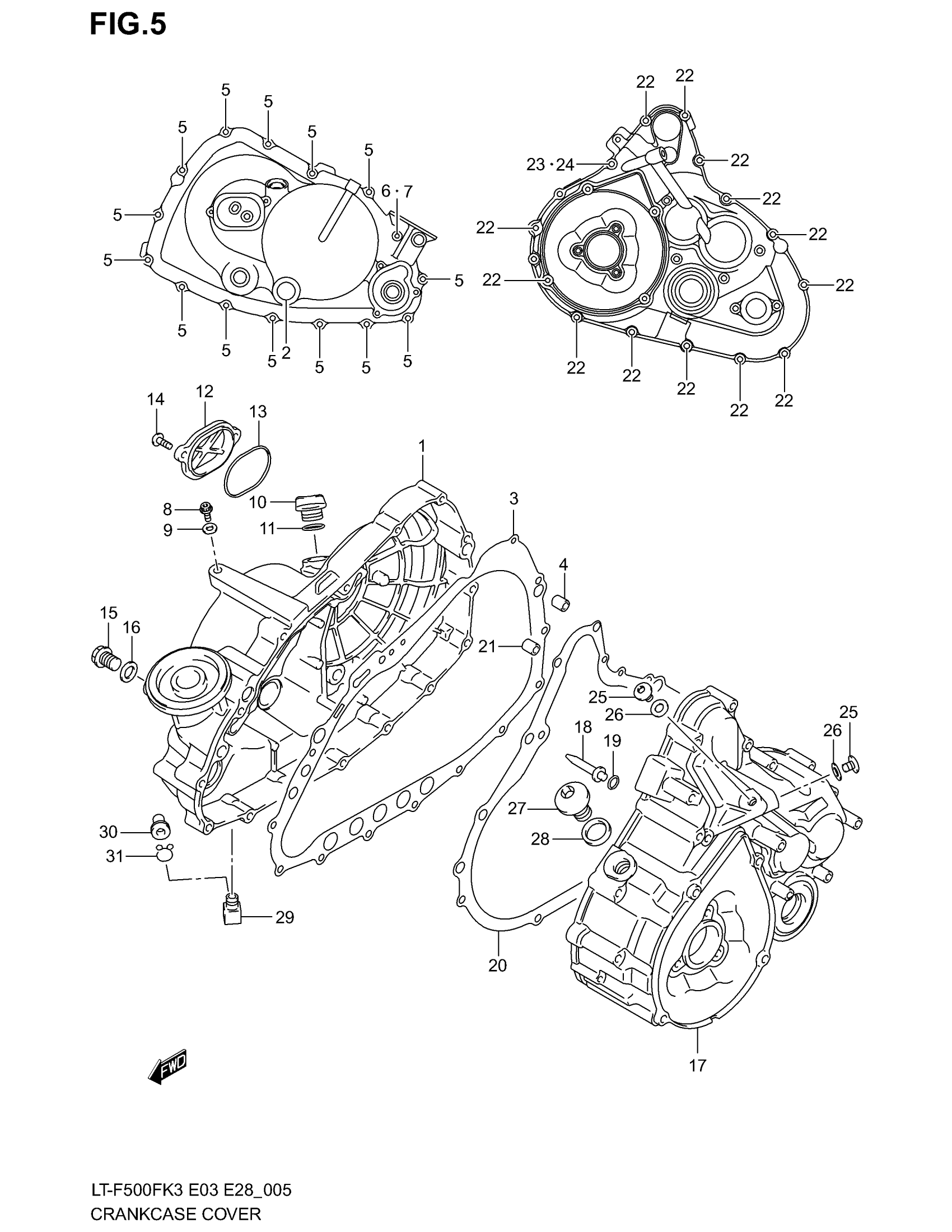

Suzuki LT-F500F (2003) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-09F01

Unavailable

2

LENS, OIL INSPECTION

11971-33210

$16.66

3

GASKET

11482-44D00

$21.72

4

PIN

04211-13189

$2.19

5

BOLT, WATER PUMP This part replaces 01547-06353.

01547-0635B

$2.73

6

BOLT This part replaces 01547-06703.

01547-0670B

$3.01

7

GASKET

09168-06023

$2.01

8

PLUG, OIL DRAIN This part replaces 07120-06103.

07120-0610B

$2.43

9

GASKET

09168-06023

$2.01

10

.PLUG This part replaces 09259-20008.

09259-20008-XC0

$6.76

11

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

12

CAP, INSPECTION

11175-09F00

Unavailable

13

.O RING,INSPECTION CAP

11177-14D01

$4.21

14

SCREW This part replaces 02142-06203.

02142-0620A

$1.38

15

PLUG, OIL PRESSURE

09247-14015

$4.83

16

GASKET

09168-14002

$2.83

17

COVER TRANSFER

11351-09F00

$499.12

18

JET, OIL MISSION

09493-36003

Unavailable

19

O RING (D:1.2,ID:4.0)

09280-04004

$1.76

20

GASKET, TRANSFER COVER

11483-44D01

$22.82

21

PIN

04211-13189

$2.19

22

BOLT This part replaces 01547-06403.

01547-0640B

$2.74

23

BOLT This part replaces 01547-06503.

01547-0650B

$2.77

24

BOLT This part replaces 01547-06753.

01547-0675B

$4.28

25

GASKET

09168-06023

$2.01

26

PLUG, OIL GALLERY

09106-08116

$3.48

27

GASKET

09168-08015

$2.77

28

PLUG, TDC CHECK

09248-16012

$4.19

29

GASKET

09168-16002

$1.89

30

UNION, WATER DRAIN

17415-44D00

Unavailable

31

HOSE

13878-39C10

Unavailable

32

CLIP

09401-08401

$1.52
