2003 Suzuki LT-F500F OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2003 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

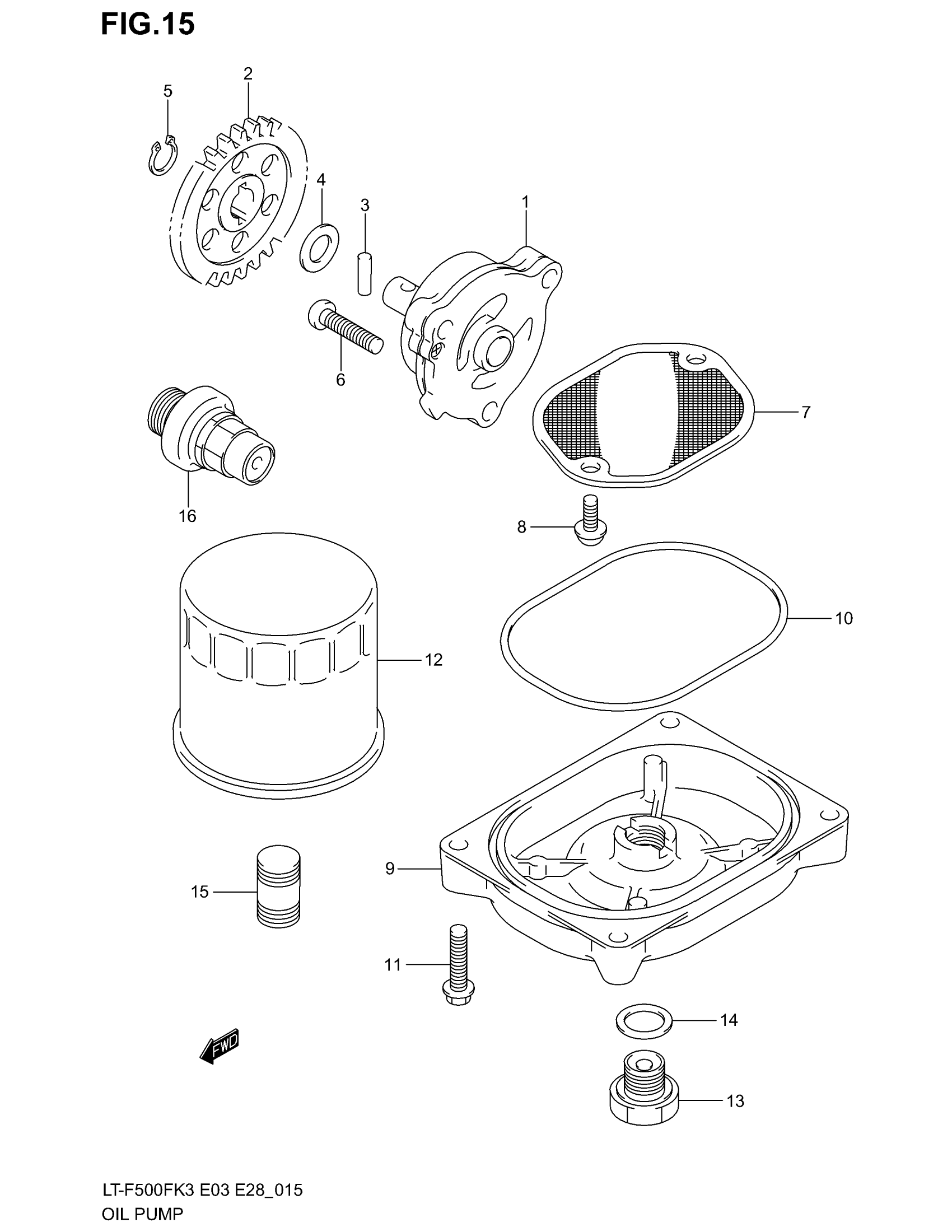

2003 Suzuki LT-F500F OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL

16400-44D00

1
Out of stock

2

GEAR, DRIVEN (NT:29)

16331-02F00

1
Out of stock

3

PIN

09261-04009

1
Out of stock

4

WASHER

08221-10185

1
Out of stock

5

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

6

SCREW

09125-06035

3
Out of stock

7

STRAINER,ENGINE OIL This part replaces 16520-24500.

16520-27H00

1
Out of stock

8

SCREW This part replaces 02112-75123.

02112-7512A

2
Out of stock

9

CAP, OIL STRAINER

16523-24501

1
Out of stock

10

O RING

16528-24500

1
Out of stock

11

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06253.

01547-0625B

4
Out of stock

12

FILTER, ENGINE OIL This part replaces 16510-03G00.

16510-07J00

1
Out of stock

13

PLUG (MAGNETO)

09247-14002

1
Out of stock

14

GASKET

09168-14002

1
Out of stock

15

UNION,OIL STAND This part replaces 16591-06B00.

16591-06B01

1
Out of stock

16

VALVE ASSY, OIL RELIEF

16440-17C10

1
Out of stock
