2002 Suzuki LT-F500F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

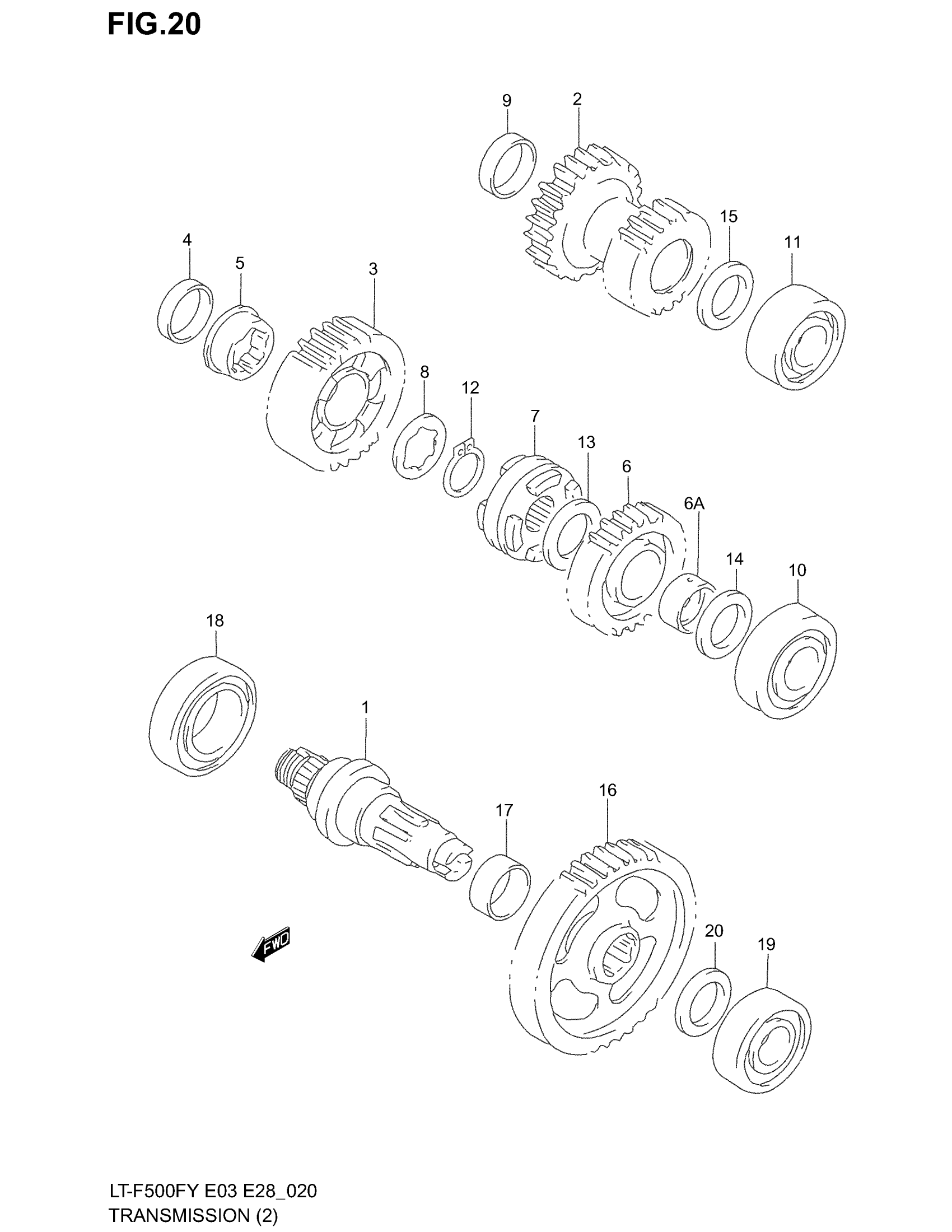

2002 Suzuki LT-F500F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, SUB T/M OUTPUT | MODEL W This part replaces 29121-44D10.

29121-44D21

1
Out of stock

1

SHAFT, SUB T/M OUTPUT | MODEL X/Y/K1/K2 This part replaces 29121-44D20.

29121-44D21

1
Out of stock

2

GEAR, SUB T/M IDLE | NT:22/17

29150-44D00

1
Out of stock

3

GEAR, SUB T/M DRIVE,NO.1 | NT:28

29211-44D50

1
Out of stock

4

SPACER, SUB T/M NO.1 GR

29212-44D50

1
Out of stock

5

BUSH, SUB T/M NO.1 GR

29215-44D50

1
Out of stock

6

GEAR, SUB T/M NO.2 | NT:23

29221-44D50

1
Out of stock

6A

BUSH, SUB T/M NO.2

29222-44D00

1
Out of stock

7

DOG, SUB T/M SELECT SLIDING

29231-44D50

1
Out of stock

8

WASHER, SUB T/M NO.1 GR | 25.5X35X1.0

09167-25016

1
Out of stock

9

SPACER, SUB T/M IDLE GEAR | 20X29X4.5

09180-20101

1
Out of stock

10

BEARING, DRIVE SHAFT,LH | 20X52X15

09262-20080

1
Out of stock

11

BEARING, DRIVE SHAFT, LH | 20X47X14 This part replaces 09262-20081.

09262-20139

1
Out of stock

12

SNAP RING

09380-25003

1
Out of stock

13

WASHER, SUB T/M NO.2 GR,RH | 20X30X1.0

09181-20195

1
Out of stock

14

WASHER, SUB T/M NO.2 GR,LH | 20X34X1.0

09181-20251

1
Out of stock

15

WASHER, SUB T/M IDLE GR,LH | 20X34X1.0

09181-20251

1
Out of stock

16

GEAR, SUB T/M DRIVEN | NT:42

29311-44D00

1
Out of stock

17

SPACER, SUB T/M DRIVEN GR | 25X30X12.4

09180-25037

1
Out of stock

18

BEARING (35X72X17) | 35X72X17 This part replaces 09262-35039.

09262-35038

1
Out of stock

19

BRG, SUB T/M SET,LH | 20X52X15

09262-20073

1
Out of stock

20

1

$3.05

In stock

20

WASHER, SUB T/M DRIVEN GR | MODEL X/Y/K1/K2 20X34X1

09181-20251

1
Out of stock
