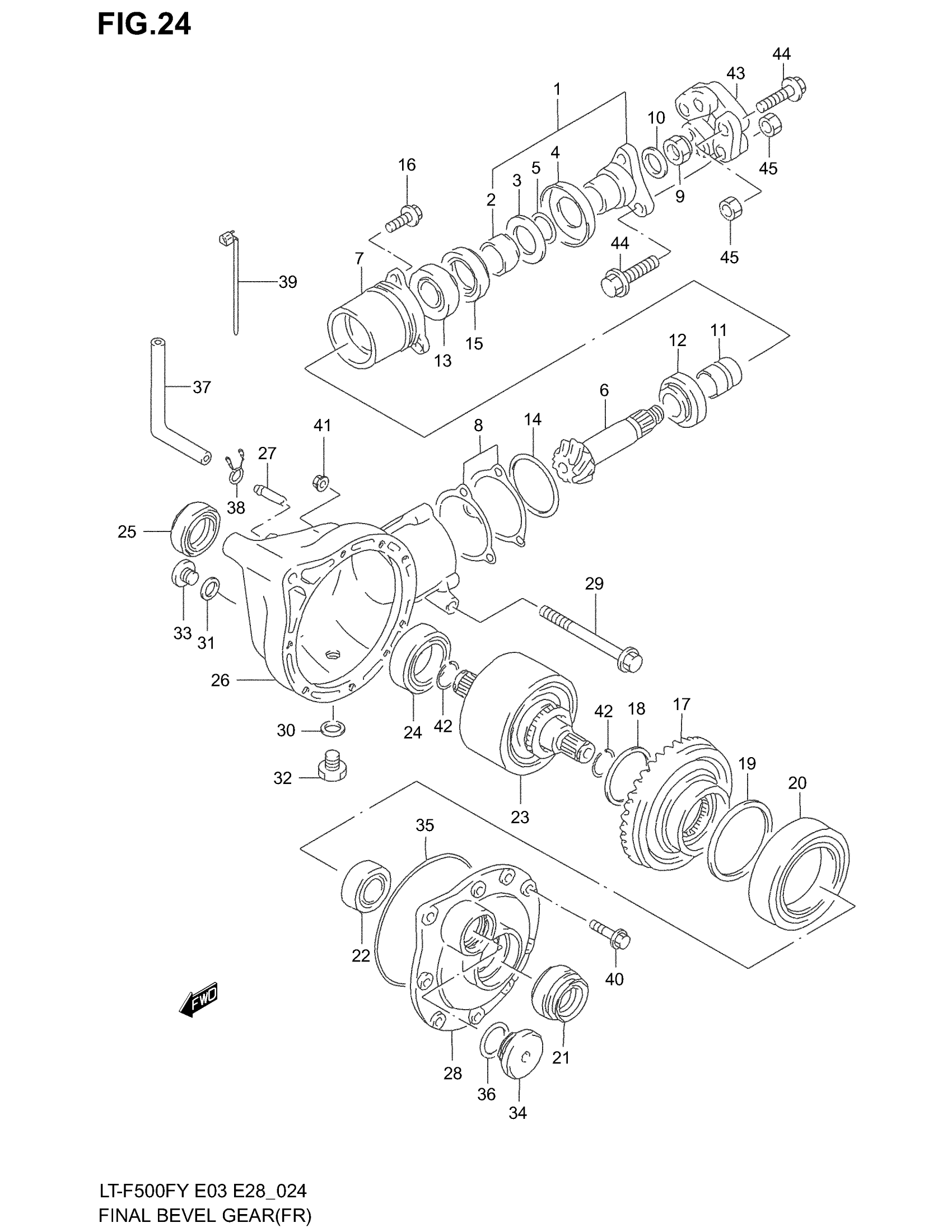

Suzuki LT-F500F (2002) FINAL BEVEL GEAR (FRONT)(MODEL W/X/Y) Diagram

#

Description
Price

1

FLANGE, DRIVE BEVEL GEAR | MODEL W This part replaces 27180-19B00.

27180-19B10

$188.45

1

FLANGE, FR DRIVE BEVEL GR | MODEL X/Y; Includes Item(s) 2 - 5

27180-19B10

$188.45

2

COLLAR, FR DRIVE BVL GR

27591-19B01

$25.08

3

PLATE, FR DRIVE OIL SEAL

27592-19B00

$7.28

4

PLATE, FR DRIVE BVL GR

09165-30002

$7.20

5

O RING, FR DRIVE COLLAR | ID:28,DD:1.0

09280-28007

$2.19

6

GEAR, FR DRIVE BVL | MODEL W

27311-44D50

Unavailable

6

GEAR, FR DRIVE BVL | MODEL X/Y This part replaces 27311-44D60.

27311-44D50

Unavailable

7

HOUSING, FR DRIVE BVL GR

27441-19B00

$125.27

8

SHIM SET, FR DRIVE BVL HSG | T:0.15/0.30/0.35/0.40

27445-19810

$29.07

9

NUT, FR DRIVE BVL GR

09159-16004

$4.20

10

WASHER, FR DRIVE BVL GR | 16X30X3

09160-16026

$5.43

11

SPACER, FR DRIVE BVL GR | 25.3X28X28

09180-25085

$34.43

12

BRG,FR DRIVE BVL GR,FR | 25X52X16.25

09265-25024

$66.08

13

BRG,FR DRIVE BVL GR,FR | 25X52X19.25

09265-25013

$58.05

14

O RING, DRIVE BVL GR HSG | ID:62.6,DD:2.4

09280-63004

$6.07

15

SEAL, FR DRIVE BVL GR JOINT | 34X52X9

09283-34008

$18.71

16

BOLT This part replaces 01550-08253.

01550-0825A

$2.31

17

GEAR, FR DRIVEN BEVEL

27321-44D50

$376.88

18

SHIM SET, FR DRIVEN BVL GR | T:0.35/0.40/0.50/0.60

27326-19810

$36.22

19

SHIM SET, DRIVEN GEAR BRG | T:0.35/0.40/0.50/0.60

27327-34810

$43.40

20

BRG, FR DRIVEN BEVEL GR | 70X110X13

09262-70001

$153.17

21

SEAL, FR DRIVEN OUTPUT,LH | 34X52X9

09283-34008

$18.71

22

BRG, FR DRIVEN OUTPUT SFT,LH

08113-60050

$25.70

23

DIFFERENTIAL ASSY, FR

27300-44D10

Unavailable

24

BRG, DIFFERENTIAL CASE RH | 40X62X12

09262-40006

$72.10

25

SEAL, FR DIF SIDE OUTPUT OIL | 34X52X9

09283-34008

$18.71

26

HOUSING, FR DIF GEAR | MODEL W/X

27450-19B01

Unavailable

26

HOUSING, FR DIF GEAR | MODEL Y; Includes Item(s) 27

27450-19B13

Unavailable

27

UNION, BREATHER

09364-08003

$3.42

28

CASE, FR DRIVEN GR BRG | MODEL W/X

27461-44D00

Unavailable

28

CASE, FR DRIVEN GR BRG | MODEL Y

27461-44D20

Unavailable

29

BOLT, FR DIFF HOUSING MTG | 10X110

09103-10148

$6.26

30

GASKET, GR OIL DRAIN PLUG | 13.8X18.8X0.4

09168-14002

$2.83

31

GASKET, OIL FILLER PLUG | 16X22X2.0

09168-16002

$1.89

32

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

$4.73

33

PLUG, GR OIL FILLER

09248-16012

$4.19

34

PLUG, FR DRIVEN GR CASE

09259-36021

$12.45

35

O RING, FR DRIVEN GR BRG CASE | ID:131.4,DD:2.4

09280-00022

$14.00

36

.O-RING (D:3.1,ID:32.7) | ID:32.7,DD:3.1

09280-33004

$2.24

37

HOSE(7X10.2X200 | L:2000->800 This part replaces 09352-70103-00B.

09352-70104-00B

$13.82

38

CLIP

09401-10403

$1.67

39

CLAMP | MODEL W This part replaces 09407-18403.

09407-18402

$2.21

39

CLAMP (L:165) | MODEL X/Y

09407-18402

$2.21

40

BOLT This part replaces 01550-08253.

01550-0825A

$2.31

41

NUT This part replaces 08319-31103.

08319-3110A

$2.73

42

RING, FR DRIVE SHAFT

09381-22007

$2.53

43

COUPLING, PROP SHAFT

27170-19B00

$326.10

44

BOLT This part replaces 01500-10453.

01500-1045A

$2.80

45

NUT This part replaces 08316-10103.

08316-1010B

$2.65
