2002 Suzuki LT-F500F Transmission Diagram

← All diagrams

Find the part on the Transmission diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

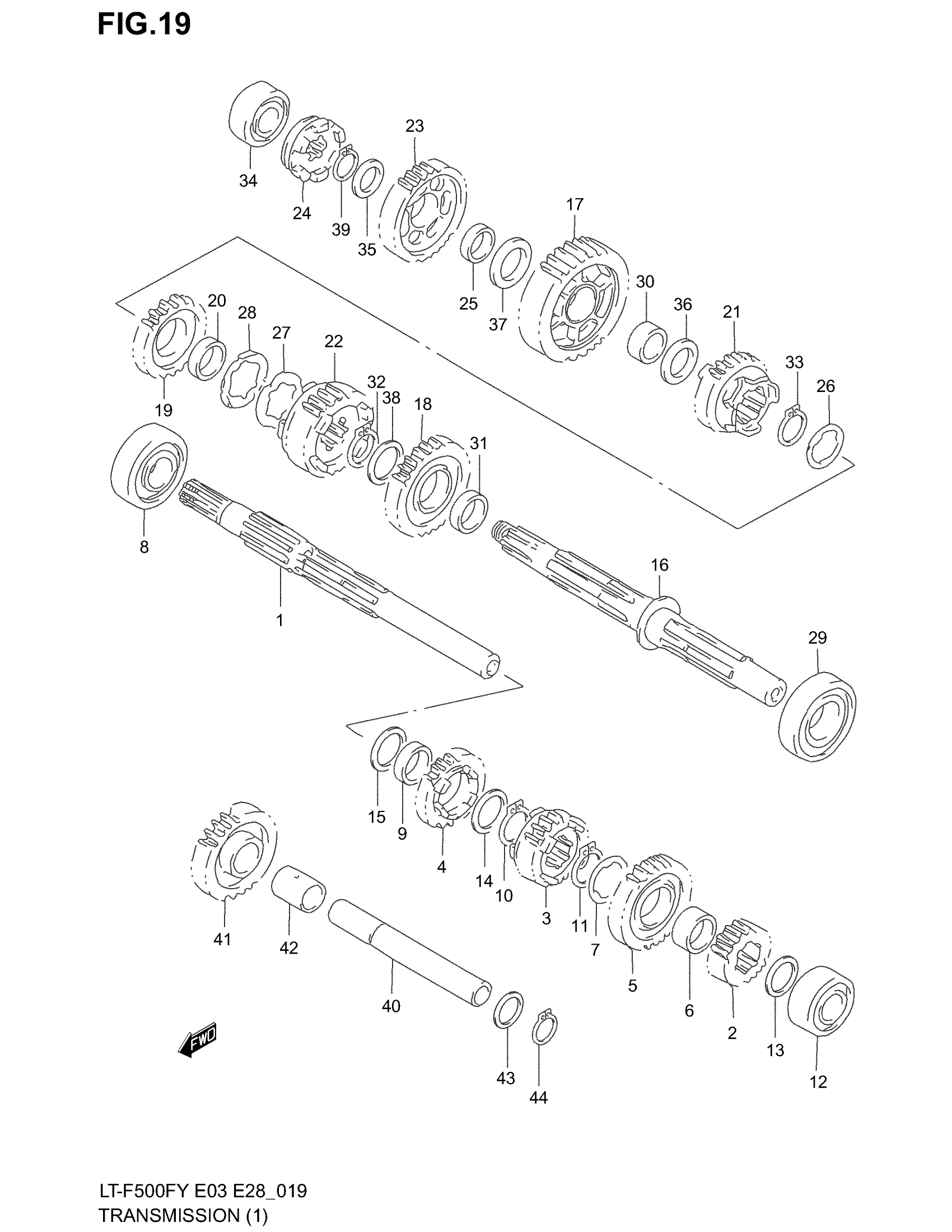

2002 Suzuki LT-F500F Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, COUNTER (NT:11)

24120-44D00

1
Out of stock

2

GEAR, 2ND DRIVE (NT:16)

24221-44D00

1
Out of stock

3

GEAR, 3RD DRIVE (NT:20)

24231-44B02

1
Out of stock

4

GEAR, 4TH DRIVE (NT:23)

24241-44B01

1
Out of stock

5

GEAR, 5TH DRIVE (NT:25)

24251-44B10

1
Out of stock

6

BUSH,6TH DRIVE GEAR This part replaces 24252-38A00.

24252-38A10

1
Out of stock

7

WASHER,LOCK (25.1X33X1.0)

09167-25021

1
Out of stock

8

BEARING, CNTR SHAFT,RH | 22X56X16

09262-22029

1
Out of stock

9

BUSH, 4TH DRIVE GEAR This part replaces 09300-25023.

24252-19F00

1
Out of stock

10

SNAP RING

09380-25003

1
Out of stock

11

SNAP RING

09380-25003

1
Out of stock

12

BEARING, CNTR SHAFT,M

08113-52040

1
Out of stock

13

WASHER, 2ND DRIVE GR | 20X30X1

09181-20195

1
Out of stock

14

WASHER, 4TH DRIVE GR

08211-25361

1
Out of stock

15

WASHER, 4TH DRIVE GR,RH

08211-25361

1
Out of stock

16

SHAFT, DRIVE

24130-44D50

1
Out of stock

17

GEAR, 1ST DRIVEN (NT:34)

24311-44D20

1
Out of stock

18

GEAR, 2ND DRIVEN (NT:28)

24321-44D00

1
Out of stock

19

GEAR, 3RD DRIVEN (NT:24)

24331-44B01

1
Out of stock

20

BUSH, 3RD DRIVEN GEAR

24332-27A00

1
Out of stock

21

GEAR, 4TH DRIVEN (NT:22)

24341-44B02

1
Out of stock

22

GEAR, 5TH DRIVEN (NT:20)

24351-44B10

1
Out of stock

23

GEAR, REVERSE DRIVEN (NT:29)

24571-44D00

1
Out of stock

24

DOG, REVERSE

24581-44D00

1
Out of stock

25

BUSH, REVERSE DRIVEN GR

24752-44D00

1
Out of stock

26

WASHER, 3RD DRIVEN GR,RH | 28.1X38X1

09167-28001

1
Out of stock

27

WASHER, 3RD DRIVEN GR,LH | 28.1X43X1.5

09167-28002

1
Out of stock

28

WASHER, 3RD DRIVEN GR,LH

09169-28001

1
Out of stock

29

BEARING, DRIVE SHAFT,M | 28X58X16

09262-28039

1
Out of stock

30

BUSH, 1ST DRIVEN This part replaces 09300-22005.

24312-02F00

1
Out of stock

31

BUSH, 2ND DRIVEN GR

09300-28002

1
Out of stock

32

CIRCLIP This part replaces 08331-31286.

08331-31289

1
Out of stock

33

CIRCLIP This part replaces 08331-31286.

08331-31289

1
Out of stock

34

BEARING, DRIVE SHAFT,RH | 17X40X12

09262-17023

1
Out of stock

35

WASHER, REVERSE DRIVEN GR | 22X32X1.0

09181-22195

1
Out of stock

36

WASHER, 1ST DRIVEN GR,LH | 22X32X1.0

09181-22195

1
Out of stock

37

WASHER, 1ST DRIVEN GR,RH

08211-22403

1
Out of stock

38

WASHER, 2ND DRIVEN GR | 28X36X1.0

09181-28167

1
Out of stock

39

CIRCLIP This part replaces 08331-31226.

08331-31229

1
Out of stock

40

SHAFT, REVERSE IDLE

24551-44D50

1
Out of stock

41

GEAR, REVERSE DILE

24561-44D50

1
Out of stock

42

BUSH, REVERSE IDLE GR

24562-44D50

1
Out of stock

43

WASHER, REVERSE IDLE GR | 20X30X1.0

09181-20195

2
Out of stock

44

CIRCLIP, KICK START DRIVE GEAR This part replaces 08331-31206.

08331-3120A

1
Out of stock
