2002 Suzuki LT-F500F Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

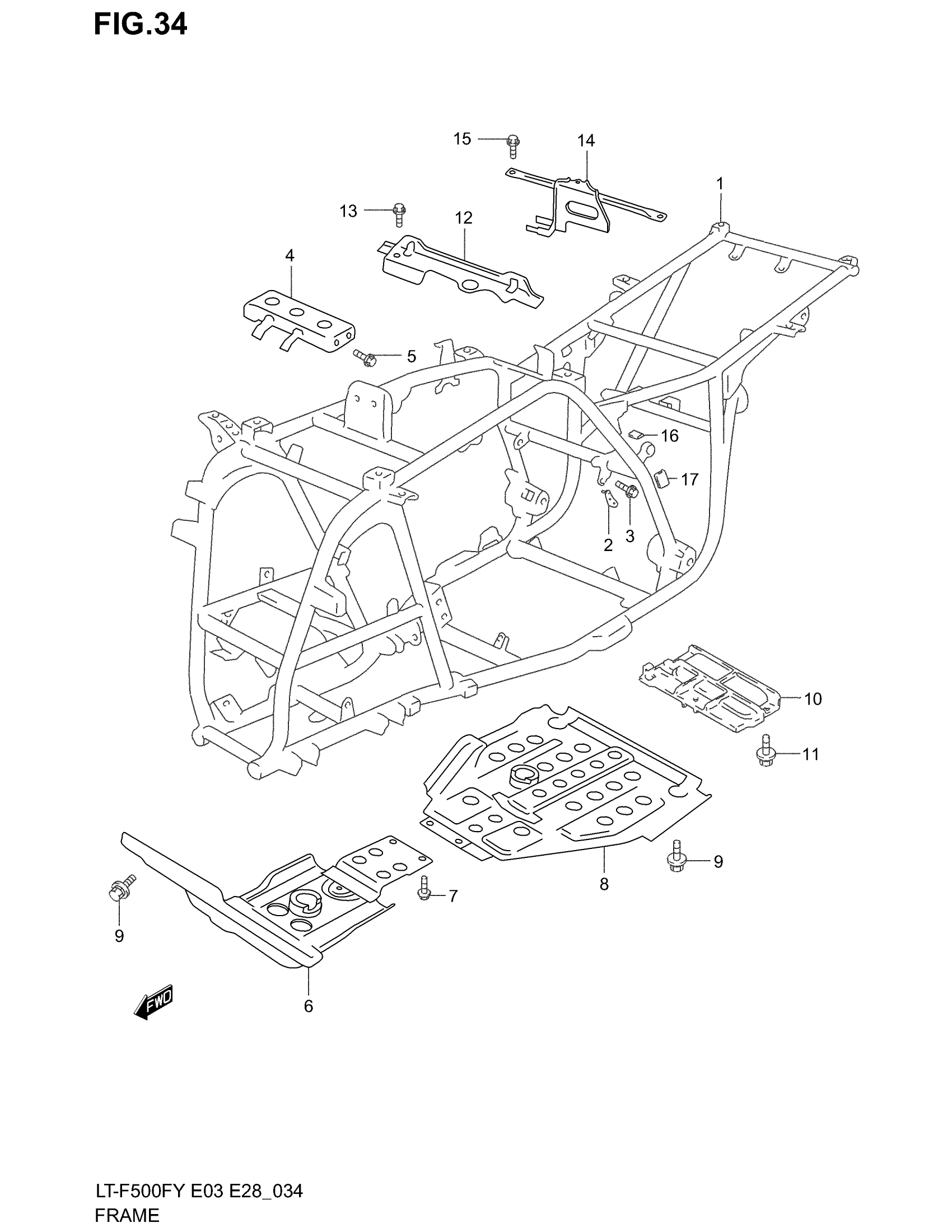

2002 Suzuki LT-F500F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | MODEL W/X This part replaces 41100-09F00-019.

41100-09FV0-019

1
Out of stock

1

FRAME (BLACK) | MODEL Y

41100-09F20-019

1
Out of stock

2

PLATE, ENGINE MOUNT LH

41980-09F00

1
Out of stock

3

BOLT (8X16) This part replaces 09103-08283.

09103-08570

2
Out of stock

4

BRACKET, ENGINE MOUNT UPPER | MODEL W/X

41990-09F00

1
Out of stock

4

BRACKET, ENGINE MOUNT UPPER | MODEL Y

41990-09F10

1
Out of stock

5

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

6

PROTECTOR, FRONT

42520-09F00

1
Out of stock

7

BOLT, JOINT | MODEL W

09116-06165

2
Out of stock

7

BOLT | MODEL X/Y This part replaces 01580-06163.

01580-0616A

2
Out of stock

8

PROTECTOR, ENGINE This part replaces 42510-09F00.

42510-09F10

1
Out of stock

9

BOLT This part replaces 01580-06163.

01580-0616A

7
Out of stock

10

COVER, ENGINE REAR

42531-09F00

1
Out of stock

11

BOLT | MODEL W

09116-06165

3
Out of stock

11

BOLT | MODEL X/Y

09116-06151

3
Out of stock

12

PLATE, BATTERY

41560-09F00

1
Out of stock

13

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock

14

HOLDER, ELECTRIC PARTS | MODEL W/X This part replaces 47410-09F00.

47410-09F10

1
Out of stock

14

HOLDER, ELECTRIC PARTS | MODEL Y

47410-09F10

1
Out of stock

15

BOLT This part replaces 01550-06163.

01550-0616A

2
Out of stock

16

SHIELD, FRAME BRIDGE

41998-09F00

1
Out of stock

17

SHIELD, BODY TUBE

41999-09F00

1
Out of stock
