2002 Suzuki LT-F500F Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2002 Suzuki LT-F500F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

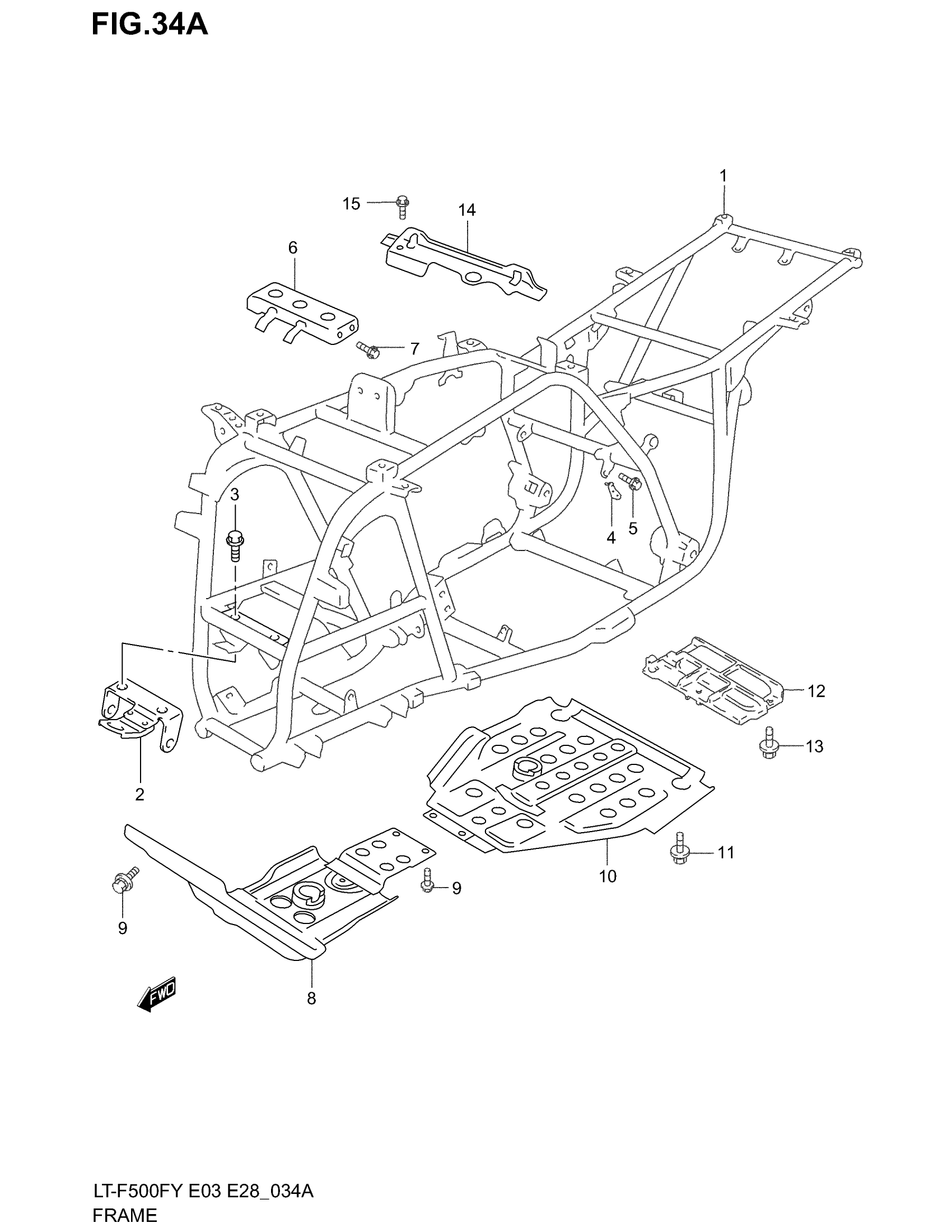

2002 Suzuki LT-F500F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME COMP This part replaces 41100-09F40-019.

41100-09F50-019

1
Out of stock

2

PLATE, DIFF CASE FITTING

41950-09FA0

1
Out of stock

3

2

$3.06

In stock

4

PLATE, ENGINE MOUNT LH

41980-09F00

1
Out of stock

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

2
Out of stock

6

BRACKET, ENGINE MOUNT UPPER

41990-09F10

1
Out of stock

7

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

4
Out of stock

8

PROTECTOR, FRONT

42521-09F40

1
Out of stock

9

BOLT (6X12) This part replaces 09111-06063.

09111-06085

5
Out of stock

10

PROTECTOR, ENGINE

42510-09F10

1
Out of stock

11

BOLT

09118-06110

4

$4.53

In stock

12

COVER, ENGINE REAR

42531-09F00

1
Out of stock

13

BOLT

09116-06151

3
Out of stock

14

PLATE, BATTERY

41560-09F00

1

$106.03

In stock

15

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

2
Out of stock
