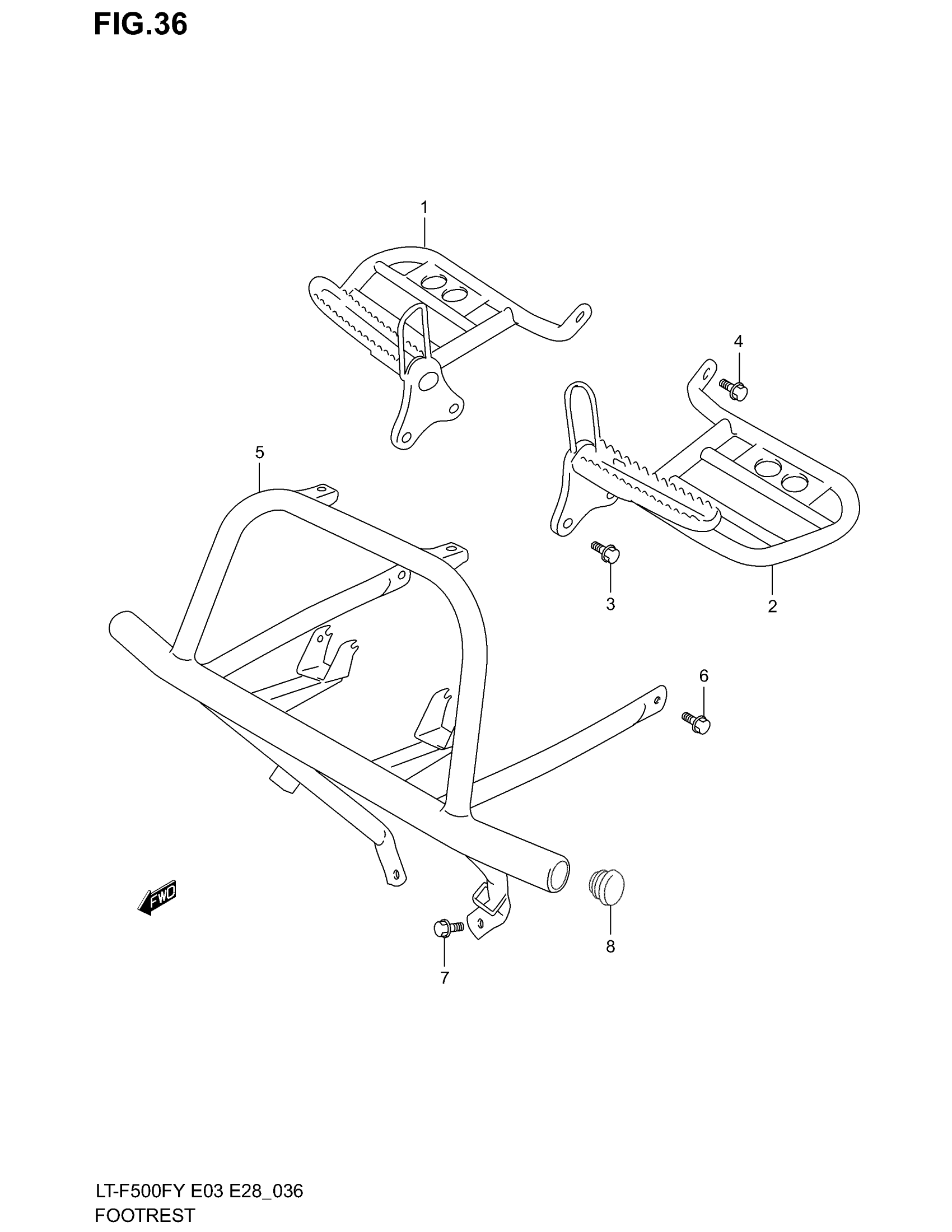

Suzuki LT-F500F (2002) FOOTREST Diagram

#

Description
Price

1

FOOTREST, FRONT RH | MODEL W/X This part replaces 43510-09F00.

43510-09F10

Unavailable

1

FOOTREST, FRONT RH | MODEL Y/K1/K2

43510-09F10

Unavailable

2

FOOTREST, FRONT LH | MODEL W/X This part replaces 43520-09F00.

43520-09F10

Unavailable

2

FOOTREST, FRONT LH | MODEL Y/K1/K2

43520-09F10

Unavailable

3

BOLT, LOWER This part replaces 09103-10293.

09103-10310

$2.84

4

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31

5

GRIP, FRONT (BLACK) | MODEL W/X/Y This part replaces 43990-09F00-019.

43990-09F30-019

Unavailable

5

GRIP, FRONT (BLACK) | MODEL K1/K2

43990-09F30-019

Unavailable

6

BOLT (8X16) | MODEL W This part replaces 01550-08163.

01550-0816A

$2.31

6

BOLT | MODEL X/Y/K1/K2 This part replaces 01550-08203.

01550-0820A

$2.25

7

BOLT, LOWER

09103-08266

$2.80

8

CAP

43978-09F00

$12.63
