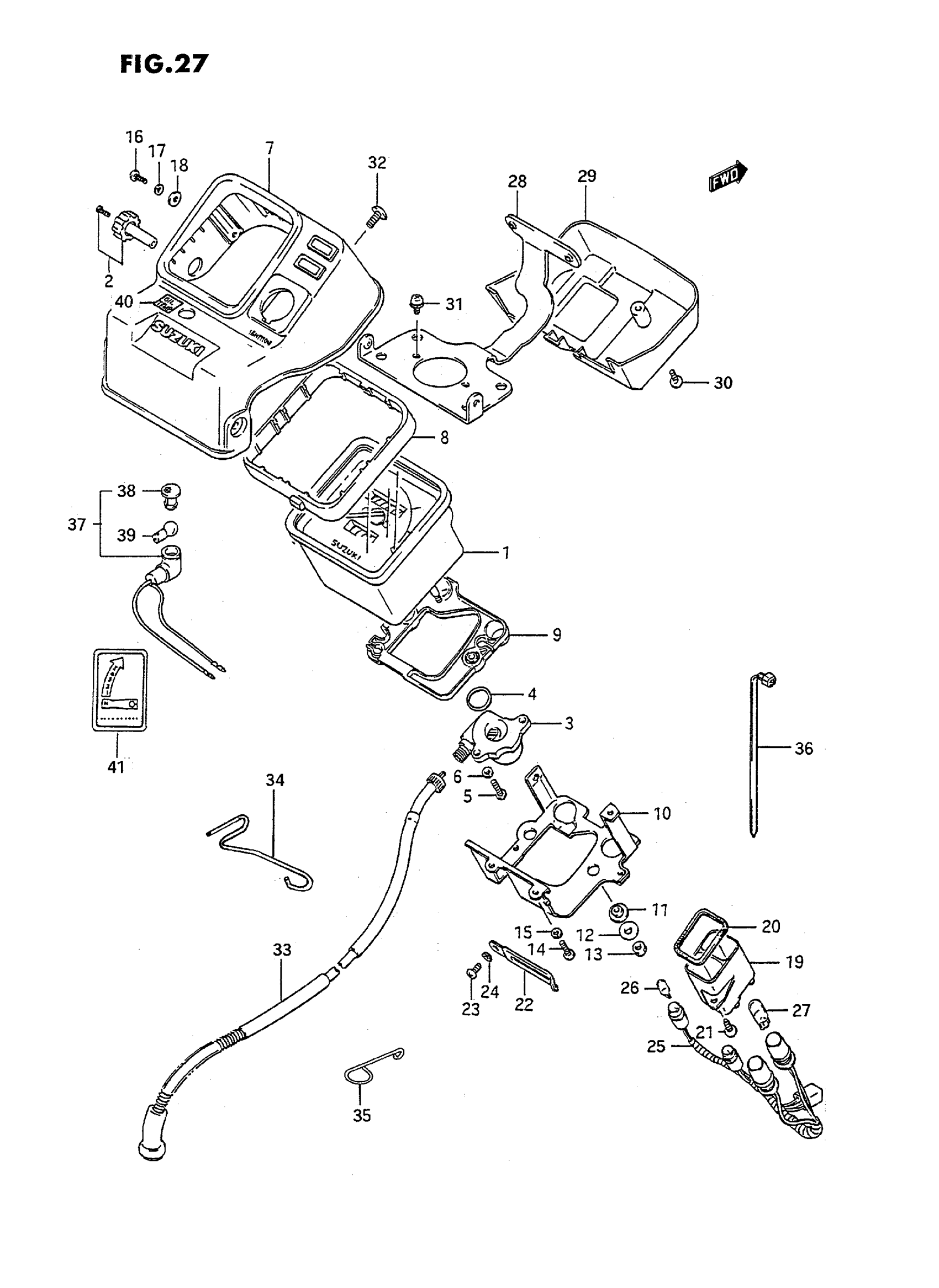

Suzuki LT-F4WDXS (1995) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO) This part replaces 34110-19B21.

34110-19B22

Unavailable

2

KNOB, TRIP

34124-04A30

$7.08

3

BOX, METER GEAR This part replaces 34131-33450.

34131-19B00

Unavailable

4

GASKET

34127-19B10

Unavailable

5

SCREW | MODEL M/N/P/R This part replaces 02112-04128.

02112-0412A

$1.49

5

SCREW | MODEL S This part replaces 02112-04123.

02112-0412A

$1.49

6

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

7

HOOD, METER This part replaces 34151-19B30.

34151-19B31

Unavailable

8

CUSHION, METER NO.1

34188-19B10

$19.15

9

CUSHION, METER NO.2

34189-19B10

Unavailable

10

PLATE, METER SETTING

34162-19B10

Unavailable

11

CUSHION

34191-19B10

$4.52

12

WASHER (5.5X16X1.2) | MODEL M/N/P/R This part replaces 34181-19B10.

09160-05037

$1.49

12

WASHER | MODEL S

09160-05037

$1.49

13

NUT This part replaces 08310-11056.

08310-0005A

$1.84

14

SCREW | MODEL M/N/P/R This part replaces 02112-04128.

02112-0412A

$1.49

14

SCREW | MODEL S This part replaces 02112-04123.

02112-0412A

$1.49

15

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

16

SCREW | MODEL M/N/P/R This part replaces 02112-04124.

02112-0412A

$1.49

16

SCREW | MODEL S This part replaces 02112-04123.

02112-0412A

$1.49

17

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

18

WASHER This part replaces 08322-21045.

08322-0104A

$1.91

19

CASE, PILOT LAMP

36381-19B10

Unavailable

20

GASKET

34196-19B10

Unavailable

21

SCREW This part replaces 03541-04166.

03541-0416A

$1.49

22

CLAMP

34176-19B10

Unavailable

23

SCREW This part replaces 02112-04066.

02112-0406B

$1.55

24

LOCK WASHER This part replaces 08321-21046.

08321-0104A

$1.84

25

SOCKET,METER This part replaces 34170-19B10.

34170-19B11

$53.13

26

BULB (12V,3W)

09471-12103

$3.83

27

BULB (12V,3.4W)

09471-12028

$1.99

28

BRACKET, METER

34950-19B10

Unavailable

29

COVER, LOWER

34193-19B10

$16.20

30

SCREW | MODEL M/N/P This part replaces 02112-04085.

02112-0408A

$1.49

30

SCREW | MODEL R/S This part replaces 02112-04083.

02112-0408A

$1.49

31

SCREW This part replaces 02112-35106.

02112-3510B

$2.25

32

SCREW | MODEL M/N/P This part replaces 02142-05084.

02142-0508A

$1.49

32

SCREW | MODEL R/S This part replaces 02142-05083.

02142-0508A

$1.49

33

CABLE ASSY,SPEE | ~F.NO.2103580 This part replaces 34910-19B03.

34910-19B13

$62.73

33

CABLE ASSY,SPEE | F.NO.2103581~ This part replaces 34910-19B10.

34910-19B13

$62.73

34

GUIDE, METER CABLE | F.NO.2103581~

34938-19B00

Unavailable

35

CLAMP, METER CABLE | MODEL N/P

34948-29000

Unavailable

36

CLAMP | MODEL N/P

09403-26401

Unavailable

36

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

36

CLAMP, METER CABLE (L:125)

09407-14403

$2.26

37

LAMP ASSY, OIL TEMP WARNING | Includes Item(s) 38 - 39

36360-19B00

Unavailable

38

LENS

36361-43200

$5.32

39

BULB (12V,3.4W)

09471-12001

$1.65

40

LABEL, OIL TEMP

36367-39D00

Unavailable

41

LABEL, GEAR SHIFT PATTERN

68392-24210

$2.92
