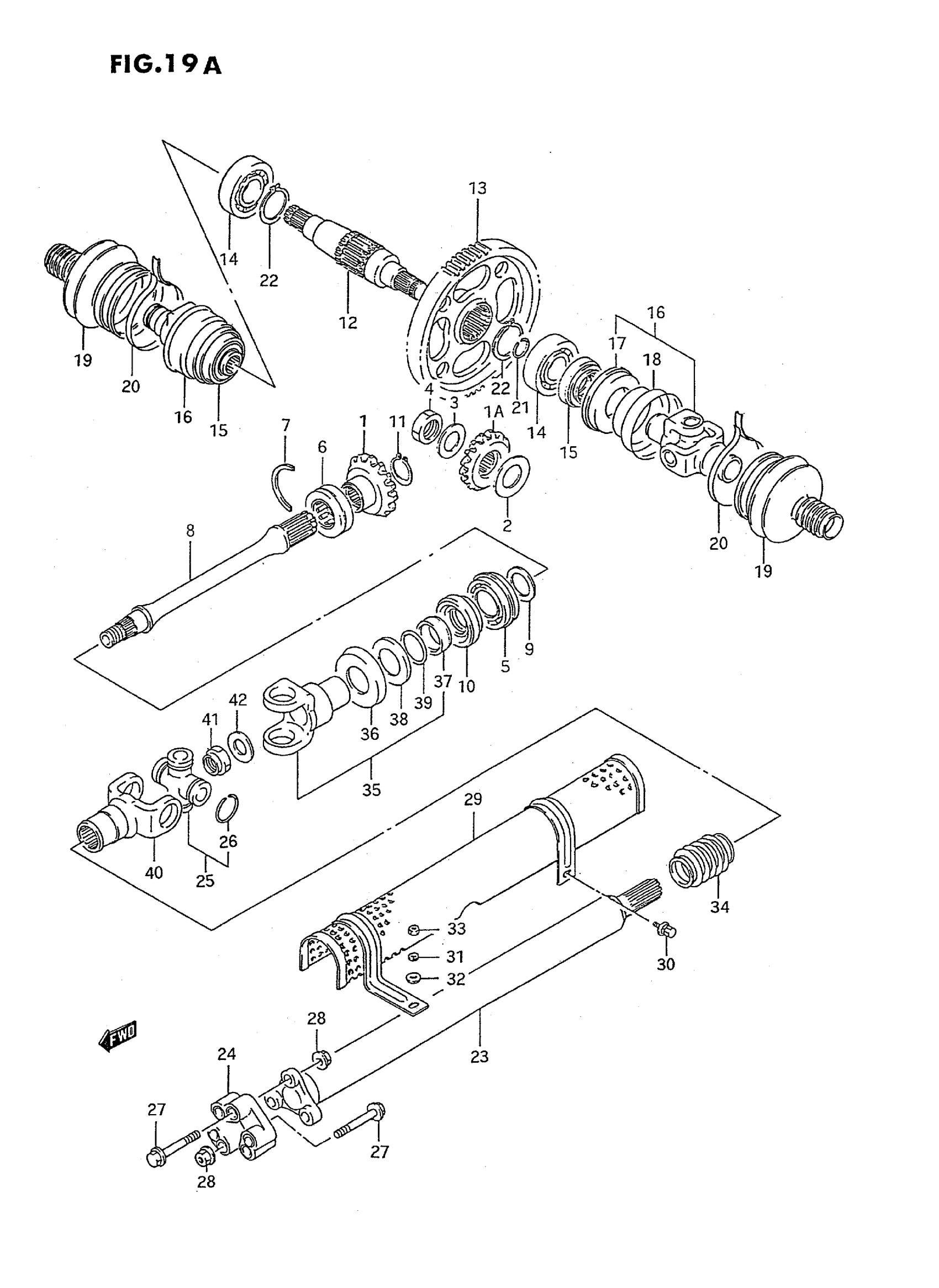

Suzuki LT-F4WDXS (1995) SECONDARY GEAR - PROPELLER SHAFT (MODEL S) Diagram

#

Description
Price

1

GEAR, SECONDARY DRIVE BEVEL | NT:16

24911-19B70

Unavailable

1A

GEAR, SECONDARY DRIVEN BEVEL | NT:18

24921-19B70

Unavailable

2

SHIM (T:0.25)

24935-19B00-025

Unavailable

2

SHIM (T:0.30)

24935-19B00-030

Unavailable

2

SHIM (T:0.35)

24935-19B00-035

Unavailable

2

SHIM (T:0.90)

24935-19B00-090

Unavailable

2

SHIM (T:0.95)

24935-19B00-095

Unavailable

2

SHIM (T:1.00)

24935-19B00-100

Unavailable

2

SHIM (T:1.05)

24935-19B00-105

Unavailable

2

SHIM (T:1.10)

24935-19B00-110

Unavailable

2

SHIM (T:1.15)

24935-19B00-115

Unavailable

3

WASHER

09164-20007

$4.60

4

NUT

09140-20012

$4.32

5

BEARING (25X52X20.6) This part replaces 09267-25006.

09267-25014

$124.50

6

BEARING (30X50X17) This part replaces 09263-30010.

09263-30050

$57.07

7

RING

09390-50002

$3.03

8

SHAFT, SECONDARY OUTPUT This part replaces 24961-19B00.

24961-19B01

Unavailable

9

SHIM (T:0.50) This part replaces 08221-25365.

09181-25186

$3.93

9

SHIM (T:0.60)

09181-25051

$3.50

9

SHIM (T:0.65)

09181-25052

$3.50

9

SHIM (25X34X0.7) This part replaces 09181-25053.

09181-25160

$2.93

9

SHIM (T:0.75)

09181-25054

$3.50

9

SHIM 0.8 This part replaces 09181-25055.

09181-25162

$2.42

9

SHIM (T:0.85)

09181-25056

$3.42

9

SHIM 0.9 This part replaces 09181-25057.

09181-25164

$2.42

9

SHIM (T:0.95)

09181-25058

$3.50

9

WASHER, 5TH DRIVE This part replaces 09181-25059.

09181-25167

$3.12

9

SHIM (T:1.05)

09181-25060

$3.42

9

SHIM (T:1.10)

09181-25061

$3.85

9

SHIM (T:1.15)

09181-25062

$3.27

9

SHIM (T:1.20)

09181-25063

$3.77

10

OIL SEAL

09283-34008

$20.72

11

CIRCLIP, ENGINE SPROCKET This part replaces 08331-31246.

08331-3124A

$2.03

12

SHAFT,REAR FINA This part replaces 27551-19B10.

27551-19B11

$293.05

13

GEAR, DRIVEN (NT:62)

27541-19B10

Unavailable

14

BEARING (25X62X17)

09262-25073

$25.92

15

OIL SEAL

09283-34008

$20.72

16

JOINT, REAR FINAL OUTPUT | Includes Item(s) 17 - 18 This part replaces 27501-19B70.

27501-19B80

$392.00

17

COVER, UNIVERSAL JOINT This part replaces 27592-19B70.

27592-19B80

$37.47

18

COVER, UNIVERSAL JOINT

27593-19B70

$26.12

19

BOOT,UNIVERSAL This part replaces 27153-19B70.

27153-19B71

$14.59

20

CLAMP, UNIVERSAL JOINT

44123-60A00

$21.90

21

RING (OD:24,D:1.6)

09381-24001

$2.76

22

CIRCLIP This part replaces 08331-31406.

08331-31409

$3.58

23

PROPELLER SHAFT

27150-19B00

$234.10

24

COUPLING

27170-19B00

$293.05

25

JOINT SET, UNIVERSAL RR | Includes Item(s) 26 This part replaces 27200-73812.

27200-73814

$50.65

26

CIRCLIP

09380-25005

$1.67

27

BOLT This part replaces 01500-10453.

01500-1045A

$3.04

28

NUT This part replaces 08316-10103.

08316-1010B

$2.66

29

PROTECTOR This part replaces 27190-19B70.

27190-19B71

Unavailable

30

BOLT This part replaces 01580-06123.

01580-0612A

$2.32

31

LOCK WASHER This part replaces 08321-01063.

08321-0106A

$1.84

32

WASHER (6.5X15X1.6) This part replaces 09160-06092.

09160-06128

$1.99

33

NUT This part replaces 08310-00063.

08310-0006A

$1.84

34

BOOT

27153-62021

$14.26

35

YOKE, FR DRIVE OUTPUT | Includes Item(s) 36 - 39 This part replaces 27130-19B00.

27130-19B10

$185.53

36

PLATE

09165-30003

$6.38

37

COLLAR

27591-19B01

$22.22

38

PLATE, OIL SEAL

27592-19B00

$7.95

39

O RING

09280-28007

$2.11

40

YOKE, PROPELLER SHAFT JOINT

27140-19B00

Unavailable

41

NUT

09159-16004

$3.87

42

WASHER (16X30X3)

09160-16026

$5.00
