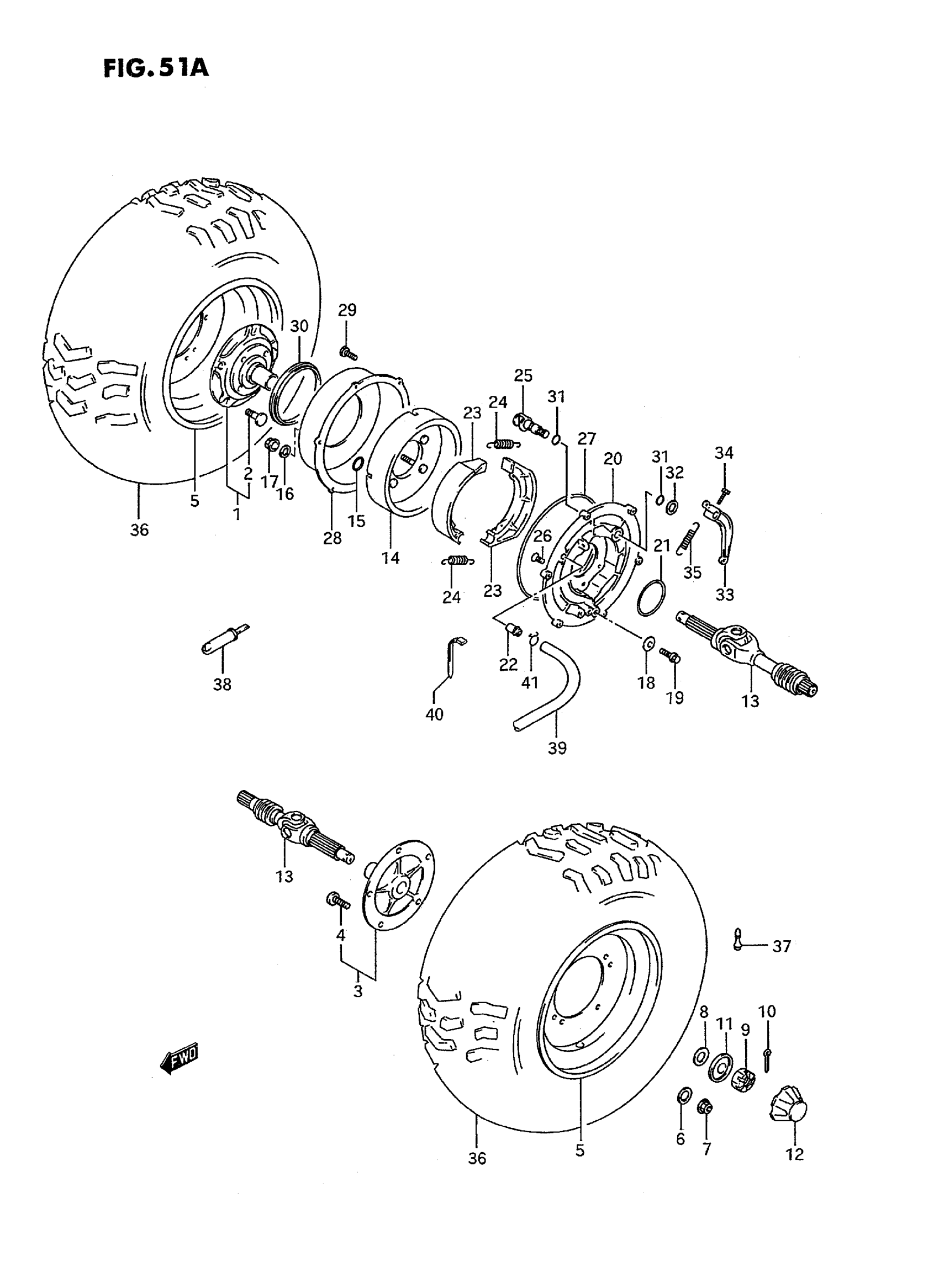

Suzuki LT-F4WDXS (1995) REAR WHEEL (MODEL S) Diagram

#

Description
Price

1

HUB, REAR RH | Includes Item(s) 2 This part replaces 64110-39D20.

64110-39D40

$498.93

2

BOLT

09119-10062

$3.07

3

HUB, REAR LH | Includes Item(s) 4 This part replaces 64110-39D30.

64110-39D50

$498.93

4

BOLT

09119-10062

$3.07

5

RIM, REAR WHEEL (SILVER)

65310-19B81-13L

Unavailable

6

WASHER This part replaces 09160-10031.

09160-10126

$2.12

7

NUT This part replaces 08316-10103.

08316-1010B

$2.66

8

WASHER

09164-18004

$3.76

9

NUT, HUB

09141-18008

$8.37

10

PIN, COTTER | ->04111-40408 This part replaces 04111-40356.

04111-4040A

$1.49

10

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

11

HOLDER, CAP

64726-19B00

$3.31

12

CAP

54725-39D00

$14.76

13

AXLE, REAR

64710-39D00

$386.71

14

DRUM, BRAKE

64120-39D00

$336.85

15

O RING

09280-10016

$3.37

16

WASHER, KNUCKLE END This part replaces 08322-01103.

08322-0110A

$1.84

17

NUT This part replaces 08319-31103.

08319-3110A

$2.73

18

WASHER, DRAIN PLUG

09161-10007

$1.72

19

PLUG, DRAIN

09247-10008

$1.97

20

PANEL, BRAKE ANCHOR

64210-39D00

$375.05

21

O RING, PANEL

09280-70010

$3.72

22

UNION

09364-12002

Unavailable

23

SHOE SET, BRAKE This part replaces 64410-41B01.

64400-41810

$62.17

24

SPRING, SHOE

55420-30000

$4.48

25

CAM, REAR BRAKE

64440-39D01

$25.27

26

BOLT, PANEL

09120-08015

$3.72

27

O RING, PANEL

64124-39D10

$50.03

28

COVER, REAR BRAKE

64123-39D00

Unavailable

29

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

30

DUST SEAL, DRUM

64124-39D01

$165.58

31

O RING

64443-18A00

$1.98

32

WASHER

09160-16003

$2.92

33

LEVER, CAM

64451-39D00

Unavailable

34

BOLT This part replaces 01550-06253.

01550-0625A

$1.97

35

SPRING

09443-14046

$6.46

36

TIRE, T/L REAR (AT25X10-12)

65100-19B81

Unavailable

37

VALVE ASSY, WHEEL RIM | ->43130-78030 This part replaces 43130-75150.

43130-78030

$9.25

37

VALVE ASSY, WHEEL RIM

43130-78030

$9.25

38

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92

39

HOSE,11X15X2000 | L:2000->1020 This part replaces 09352-11153-00B.

09352-11154-00B

$48.35

40

CLAMP, BREATHER HOSE (L:125)

09407-14403

$2.26

41

CLIP, HOSE

09401-14301

$2.35
