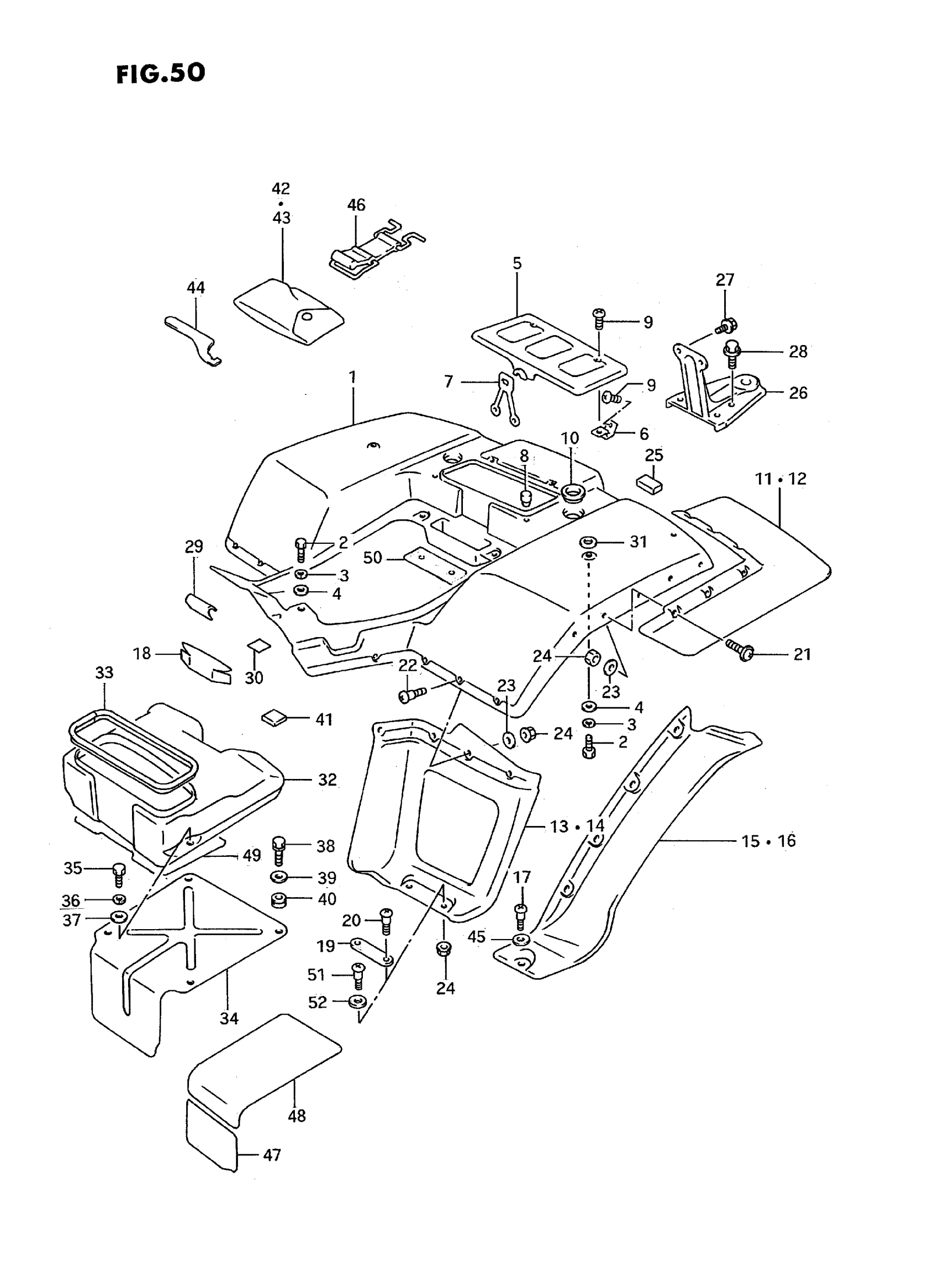

Suzuki LT-F4WDXS (1995) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (BLUE)

63111-19B10-0VT

Unavailable

2

BOLT | MODEL M This part replaces 01107-06166.

01500-0616A

$1.78

2

BOLT | MODEL N/P/R/S

09118-06006

$2.82

3

LOCK WASHER | MODEL M This part replaces 08321-21066.

08321-0106A

$1.84

4

WASHER, FRONT | MODEL M This part replaces 09160-06004.

09160-06134

$1.91

5

LID, FENDER

63195-19B00

Unavailable

6

HINGE, LID

63270-19B00

Unavailable

7

BAND, LID

63196-19B00

Unavailable

8

CUSHION This part replaces 09321-06013.

09321-06036

$1.52

9

SCREW | MODEL M/N/P This part replaces 02142-05104.

02142-0510B

$1.78

9

SCREW (5X10) | MODEL R/S

09125-05073

$2.38

10

GROMMET This part replaces 09308-25003.

09308-25005

$3.88

11

MUD GUARD, RH

63331-18B10

Unavailable

12

MUD GUARD, LH

63341-18B10

Unavailable

13

MUD GUARD, FRONT RH

63350-19B10

Unavailable

14

MUD GUARD, FRONT LH

63361-19B10

Unavailable

15

EXTENSION, RH

63311-19B00

Unavailable

16

EXTENSION, LH

63321-19B00

Unavailable

17

SCREW

09139-05040

$2.38

18

HEAT SHIELD | MODEL M/N/P/R

63355-19B20

Unavailable

18

HEAT SHIELD | MODEL S

63355-19B30

Unavailable

19

PLATE, FRONT | MODEL M/N/P/R

63341-19B10

Unavailable

20

SCREW | MODEL M/N/P/R

09139-05040

$2.38

21

SCREW

09136-05038

$2.96

22

SCREW, FRONT

09139-05038

$2.06

23

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

24

NUT This part replaces 09159-05026.

09159-05043

$2.22

25

CUSHION

63149-19B00

Unavailable

26

PLATE, TRAILER | MODEL M/N/P->95210-20B00 This part replaces 95210-19B00.

95210-20B00

Unavailable

26

PLATE, TRAILER | MODEL R/S

95210-20B00

Unavailable

27

BOLT (8X16) | MODEL M/N/P This part replaces 01517-08165.

01550-0816A

$2.32

27

BOLT (8X16) | MODEL R/S This part replaces 01550-08163.

01550-0816A

$2.32

28

BOLT, PROP SHAFT REAR | MODEL M/N/P This part replaces 01517-10205.

01550-1020A

$3.05

28

BOLT, PROP SHAFT REAR | MODEL R/S This part replaces 01550-10203.

01550-1020A

$3.05

29

SHEET

63261-19B00

Unavailable

30

SHEET

63262-19B00

Unavailable

31

WASHER (6.5X20X1.2) | MODEL M/N/P/R This part replaces 09160-06038.

09160-06077

$1.91

31

WASHER | MODEL S

09160-06077

$1.91

32

BOX, REAR

47431-19B00

Unavailable

33

MOLDING | ->92114-37B00

92114-19B00

$35.20

33

MOLDING | L:1130->600

92114-37B00

Unavailable

34

PLATE, HEAT SHIELD | MODEL M/N/P/R

47432-19B02

$52.88

34

PLATE, HEAT SHIELD | MODEL S This part replaces 47432-19B10.

47432-19B02

$52.88

35

BOLT (6X14) | MODEL M

09100-06067

Unavailable

35

BOLT (6X14) | MODEL N/P/R/S

09118-06019

$2.92

36

LOCK WASHER | MODEL M This part replaces 08321-21067.

08321-01067

$2.13

37

WASHER | MODEL M This part replaces 09160-06006.

09160-06084

$1.78

38

BOLT | MODEL M/N/P This part replaces 01137-06167.

01570-06167

$3.03

38

BOLT | MODEL R/S This part replaces 01570-06163.

01570-0616A

$2.23

39

WASHER

09169-06040

$1.92

40

CUSHION This part replaces 09320-08030.

09320-08511

$2.02

41

CAP (OD:18) This part replaces 09250-10011.

09250-10033

$1.49

42

TOOL ASSY | ->09800-21019->09822-00004 This part replaces 09800-00343.

09800-21075

$44.50

43

TOOL ASSY | MODEL R/S This part replaces 09800-21019.

09800-21075

$44.50

44

CLAMP, WRENCH | MODEL R/S

09822-00004

$14.43

45

WASHER, RR SIDE This part replaces 09160-08107.

09160-08123

$2.00

46

BAND

09462-00090

Unavailable

47

SHIELD, MUFFLER FRONT | MODEL M/N/P/R

47433-39D00

Unavailable

47

SHIELD, MUFFLER FRONT | MODEL S

47433-19B00

Unavailable

48

SHIELD, MUFFLER UPPER | MODEL M/N/P/R

47434-39D00

Unavailable

48

SHIELD, MUFFLER UPPER | MODEL S

47434-19B00

Unavailable

49

SHIELD, REAR BOX | MODEL M/N/P/R

47435-39D00

Unavailable

49

SHIELD, REAR BOX | MODEL S

47435-19B00

Unavailable

50

SHIELD, REAR FENDER | MODEL M/N/P/R

63263-39D00

Unavailable

50

SHIELD, REAR FENDER | MODEL S

63263-19B00

Unavailable

51

SCREW | MODEL S

09139-05040

$2.38

52

WASHER | MODEL S

09160-08105

Unavailable
