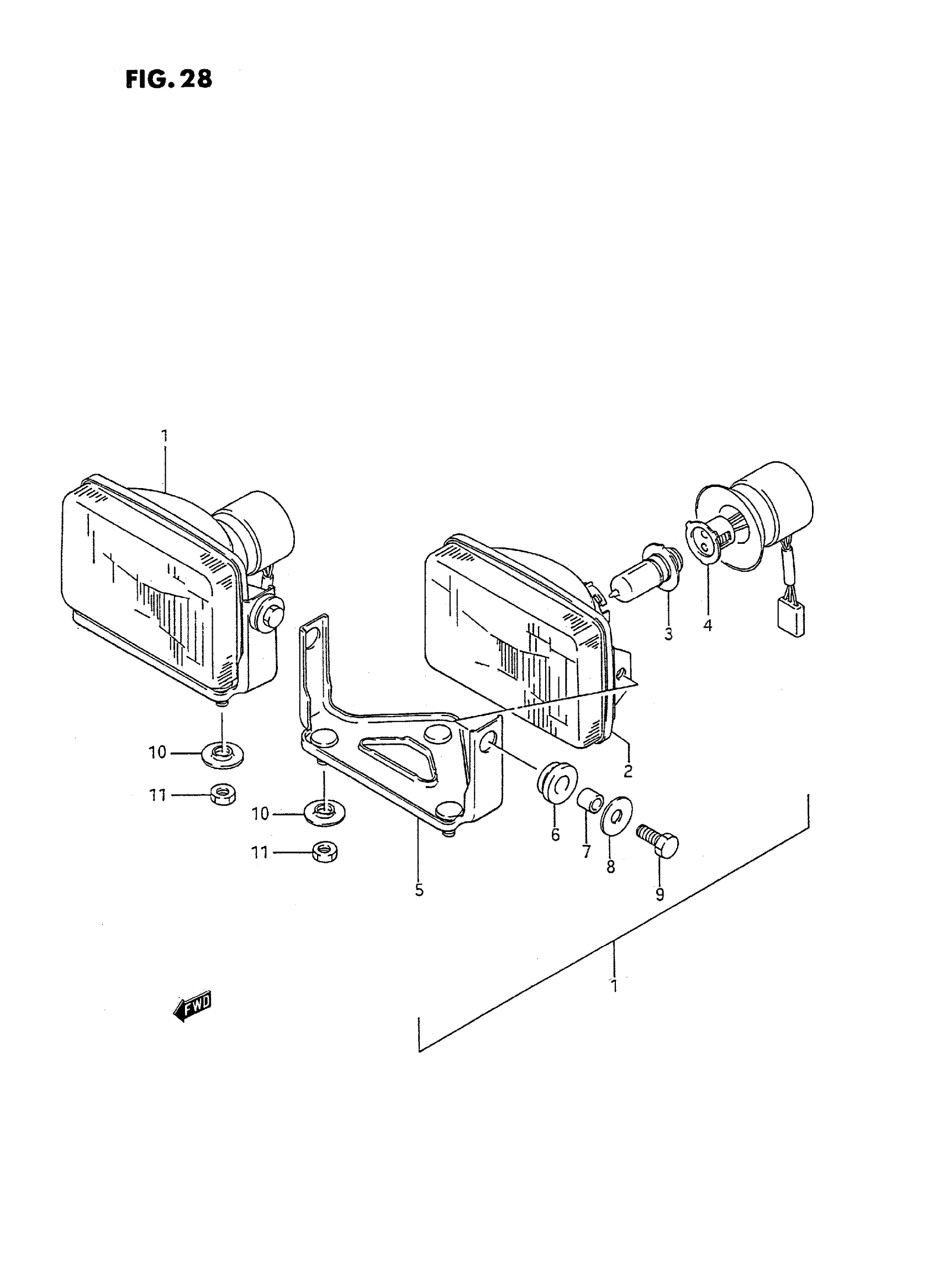

Suzuki LT-F4WDXS (1995) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 9

35100-19B03

Unavailable

2

UNIT, LAMP

35121-19B00

Unavailable

3

BULB (12V,30/30W)

09471-12093

$29.38

4

SOCKET

35171-19B03

$27.89

5

BRACKET, LAMP

35141-19B00

Unavailable

6

CUSHION

35139-45230

$1.98

7

SPACER

35133-19B00

Unavailable

8

WASHER (5.5X18X1) | MODEL M/N/P/R This part replaces 35138-45230.

09160-05045

$1.93

8

WASHER (5.5X18X1) | MODEL S This part replaces 09160-05003.

09160-05045

$1.93

9

BOLT

09100-06067

Unavailable

10

WASHER This part replaces 09169-06028.

09169-06041

$2.20

11

NUT This part replaces 08310-12066.

08310-0006A

$1.84
