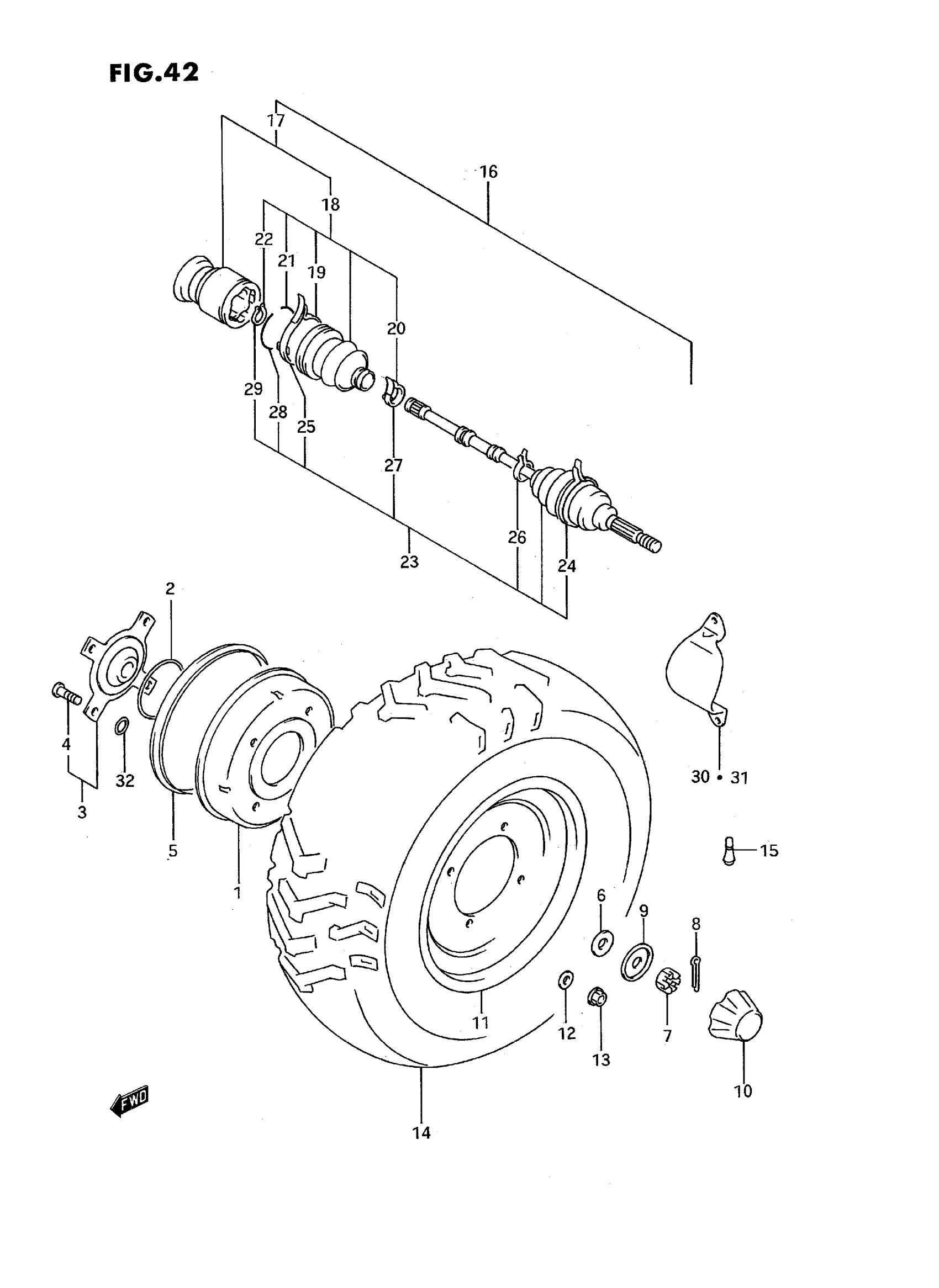

Suzuki LT-F4WDXS (1995) FRONT WHEEL (MODEL M/N) Diagram

#

Description
Price

1

DRUM, BRAKE

54120-39D00

Unavailable

2

O RING

09280-80001

$3.89

3

HUB, FRONT | Includes Item(s) 4 This part replaces 54110-39D00.

54110-39D01

Unavailable

4

BOLT This part replaces 09119-10045.

09119-10045-XC0

$2.38

5

DUST SEAL, DRUM BRAKE

54124-39D00

Unavailable

6

WASHER, HUB

09164-18004

$3.76

7

NUT, HUB This part replaces 09141-18004.

09141-18008

$8.37

8

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

9

HOLDER, CENTER CAP

64726-19B00

$3.31

10

CAP, WHEEL CENTER This part replaces 54725-19B00.

54725-39D00

$14.76

11

NO DESCRIPTION AVAILABLE This part replaces 55310-19B80-13L.

55310-39D10-13L

Unavailable

12

WASHER This part replaces 08322-21108.

08322-01107

$2.15

13

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

14

TIRE COMP,FRONT This part replaces 55100-19B80.

55110-19BA0

Unavailable

15

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

16

SHAFT ASSY,FRON | ->54901-19B81 This part replaces 54901-19B80.

54901-19B82

Unavailable

16

SHAFT ASSY,FRON | ->54918-19B80,SEE NOTE 1 This part replaces 54901-19B81.

54901-19B82

Unavailable

16

SHAFT ASSY,FRT | ->54902-19B81 This part replaces 54902-19B80.

54902-19B82

Unavailable

16

SHAFT ASSY,FRT | ->54919-19B80,SEE NOTE 2; Includes Item(s) 17 - 29 This part replaces 54902-19B81.

54902-19B82

Unavailable

17

JOINT SET,DIFF This part replaces 54933-19B13.

54933-19B14

$326.88

18

BOOT SET,DIFF S This part replaces 54931-19B13.

54931-19B14

$71.15

19

CLAMP, OUTER

44122-86010

$14.50

20

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

$12.00

21

CIRCLIP

44112-78010

$8.42

22

SNAP RING

27182-70410

$1.98

23

BOOT SET This part replaces 54930-19B10.

54930-19B12

Unavailable

24

BAND This part replaces 54923-19B10.

44121-60DB0

$14.30

25

CLAMP

44122-86010

$14.50

26

BAND This part replaces 54924-19B10.

44124-60DB0

$12.47

27

CLAMP, SIDE INNER BOOT This part replaces 44124-54A20.

44124-50A20

$12.00

28

CIRCLIP

44112-78010

$8.42

29

SNAP RING

27182-70410

$1.98

30

PROTECTOR, DRIVE SHAFT RH

54903-19B80

Unavailable

31

PROTECTOR, DRIVE SHAFT LH

54904-19B80

Unavailable

32

O RING

09280-10016

$3.37

33

NOTE 1 : INTERCHANGES TO

SPECIAL NOTE

Unavailable
