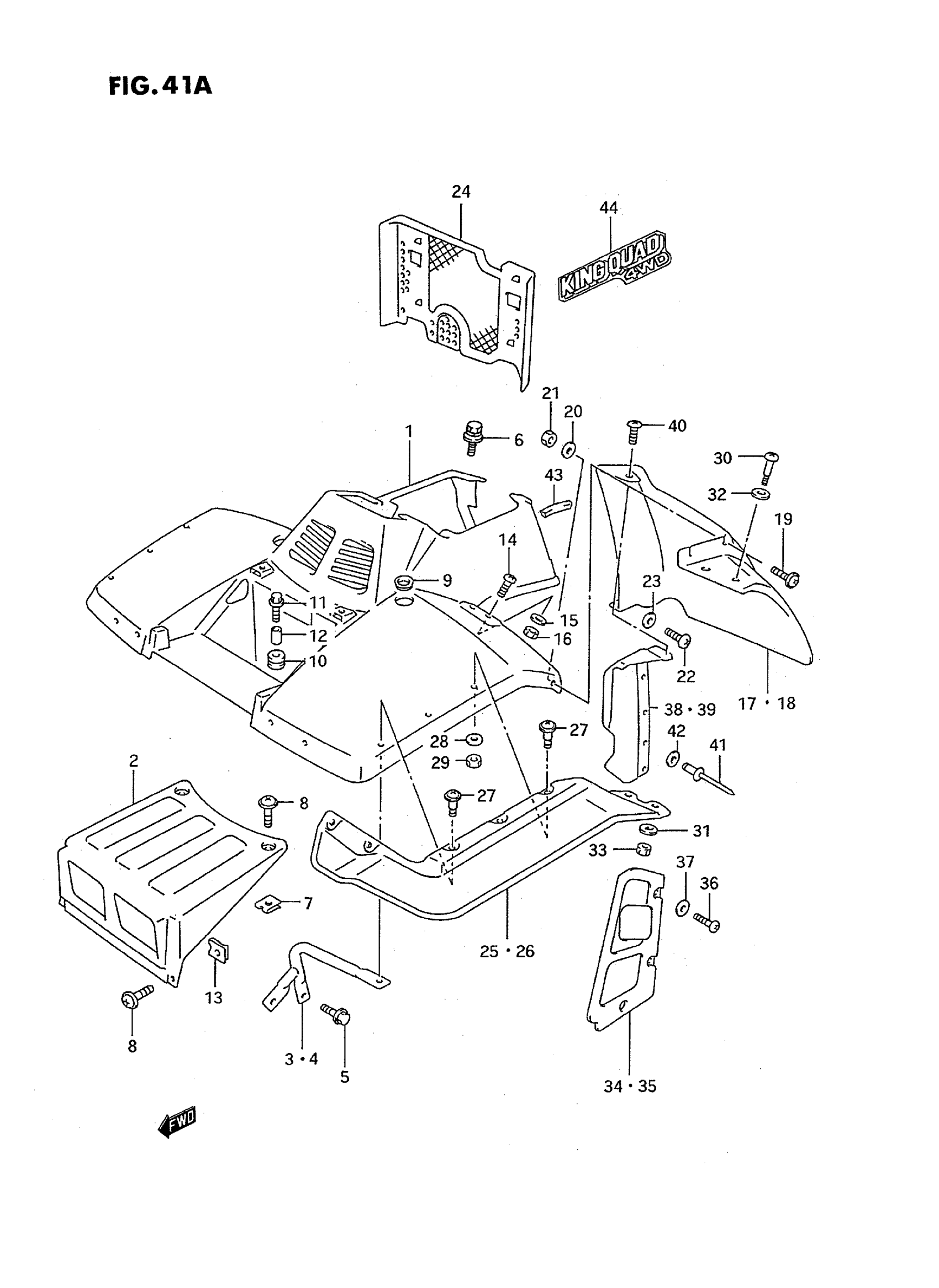

Suzuki LT-F4WDXS (1995) FRONT FENDER (MODEL S) Diagram

#

Description
Price

1

FENDER, FRONT (BLUE)

53111-19B10-0VT

Unavailable

2

FENDER, CENTER

53118-19B00

$50.42

3

BRACE, FENDER RH

53210-19B10

Unavailable

4

BRACE, FENDER LH

53240-19B10

Unavailable

5

BOLT (8X16) This part replaces 01550-08163.

01550-0816A

$2.31

6

BOLT, FENDER REAR (L:14)

09118-06019

$2.80

6

BOLT, FENDER CENTER (L:20)

09118-06016

Unavailable

7

NUT

53141-19A00

$3.97

8

SCREW This part replaces 09136-06062.

09136-06017

$2.39

9

GROMMET This part replaces 09308-25003.

09308-25005

$3.55

10

CUSHION This part replaces 09320-11015.

09320-11008

$2.58

11

BOLT, FRONT FENDER FRONT

09116-06025

$2.28

12

SPACER

09180-06120

$2.31

13

NUT

53141-19A00

$3.97

14

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

15

WASHER

09169-06016

$1.50

16

NUT This part replaces 09159-06058.

09159-06078

$2.64

17

MUD FLAP, FENDER RH

53311-19B10

Unavailable

18

MUD FLAP, FENDER LH

53312-19B10

Unavailable

19

SCREW

09139-05038

$2.15

20

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.90

21

NUT This part replaces 09159-05026.

09159-05043

$2.00

22

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

23

WASHER, INNER

09169-06010

$2.61

24

GUARD, MUFFLER FRONT | ->53310-20B12 This part replaces 53310-19B32.

53310-20B12

$103.77

24

GUARD, MUFFLER FRONT

53310-20B12

$103.77

25

MUD GUARD, FENDER FRONT RH

53331-19B00

Unavailable

26

MUD GUARD, FENDER FRONT LH

53332-19B00

Unavailable

27

SCREW

09136-05038

$2.80

28

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.90

29

NUT This part replaces 09159-05026.

09159-05043

$2.00

30

SCREW

09139-05037

$2.07

31

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.90

32

WASHER (6.5X18X1.6) This part replaces 09160-07011.

09160-06109

$1.15

33

NUT This part replaces 09159-05026.

09159-05043

$2.00

34

MUD FLAP, INNER REAR RH

53511-19B00

$57.92

35

MUD FLAP, INNER REAR LH

53521-19B00

$57.92

36

SCREW This part replaces 02142-06123.

02142-0612A

$1.37

37

WASHER

09169-06010

$2.61

38

MUD FLAP, INNER RH

53411-19B01

Unavailable

39

MUD FLAP, INNER LH

53421-19B01

Unavailable

40

SCREW

09139-05037

$2.07

41

RIVET This part replaces 09229-03023.

09229-03023-XC0

Unavailable

42

WASHER

09160-03008

Unavailable

43

CUSHION, MUD FLAP LH | CUT 125X20

63191-44A00

Unavailable

44

EMBLEM, FRONT FENDER

68155-19B50-Y63

Unavailable
