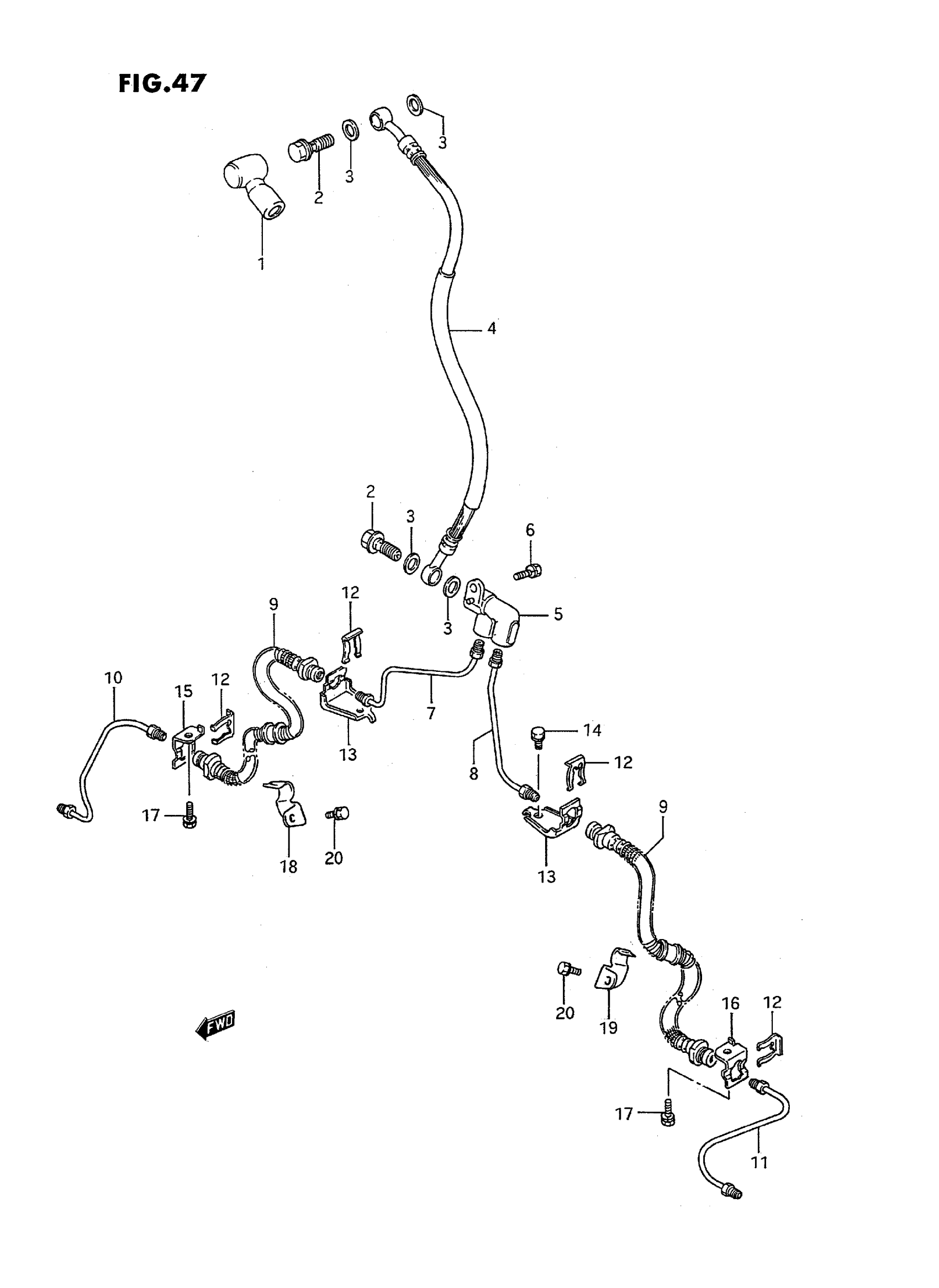

Suzuki LT-F4WDXS (1995) FRONT BRAKE HOSE Diagram

#

Description
Price

1

BOOT,MASTER CYL | MODEL M/N/P This part replaces 59711-04700.

59711-04701

$20.62

2

BOLT (10X1.00X24) | MODEL M/N/P

09360-10017

$3.42

2

UNION | MODEL R/S This part replaces 09360-10039.

09360-10061

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

HOSE This part replaces 59480-19B01.

59480-19B03

$61.92

5

JOINT, THREE WAY This part replaces 59490-19A00.

59491-19A10

$53.33

6

BOLT | MODEL M/N/P This part replaces 01134-06166.

01570-0616A

$2.23

6

BOLT | MODEL R/S This part replaces 01570-06163.

01570-0616A

$2.23

7

PIPE, BRAKE NO.1 RH

59250-19B00

$12.40

8

PIPE, BRAKE NO.1 LH

59450-19B00

$12.40

9

HOSE, BRAKE NO.2 | MODEL M/N/P/R This part replaces 59240-39D00.

59240-39D01

Unavailable

9

HOSE, BRAKE NO.2 | MODEL S

59240-39D01

Unavailable

10

PIPE, BRAKE NO.2 RH

59250-39D10

Unavailable

11

PIPE, BRAKE NO.2 LH

59450-39D10

Unavailable

12

E RING This part replaces 09383-13001.

09383-13003

$2.30

13

GUIDE, HOSE | MODEL M/N/P/R

59268-19B00

Unavailable

14

BOLT | MODEL M/N/P This part replaces 01134-06126.

01570-0612A

$2.63

14

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

$2.63

15

GUIDE, HOSE RH

59261-19B00

Unavailable

16

GUIDE, HOSE LH

59271-19B00

Unavailable

17

BOLT | MODEL M/N/P

01134-06106

Unavailable

17

BOLT | MODEL R/S This part replaces 01570-06103.

01570-0610A

Unavailable

18

CLAMP, HOSE RH

59260-39D00

Unavailable

19

CLAMP, HOSE LH

59270-39D00

Unavailable

20

BOLT | MODEL M/N/P This part replaces 01134-06125.

01570-0612A

$2.63

20

BOLT | MODEL R This part replaces 01570-06123.

01570-0612A

$2.63

20

BOLT | MODEL S This part replaces 01570-06103.

01570-0610A

Unavailable
