1995 Suzuki LT-F4WDXS Electrical Diagram

← All diagrams

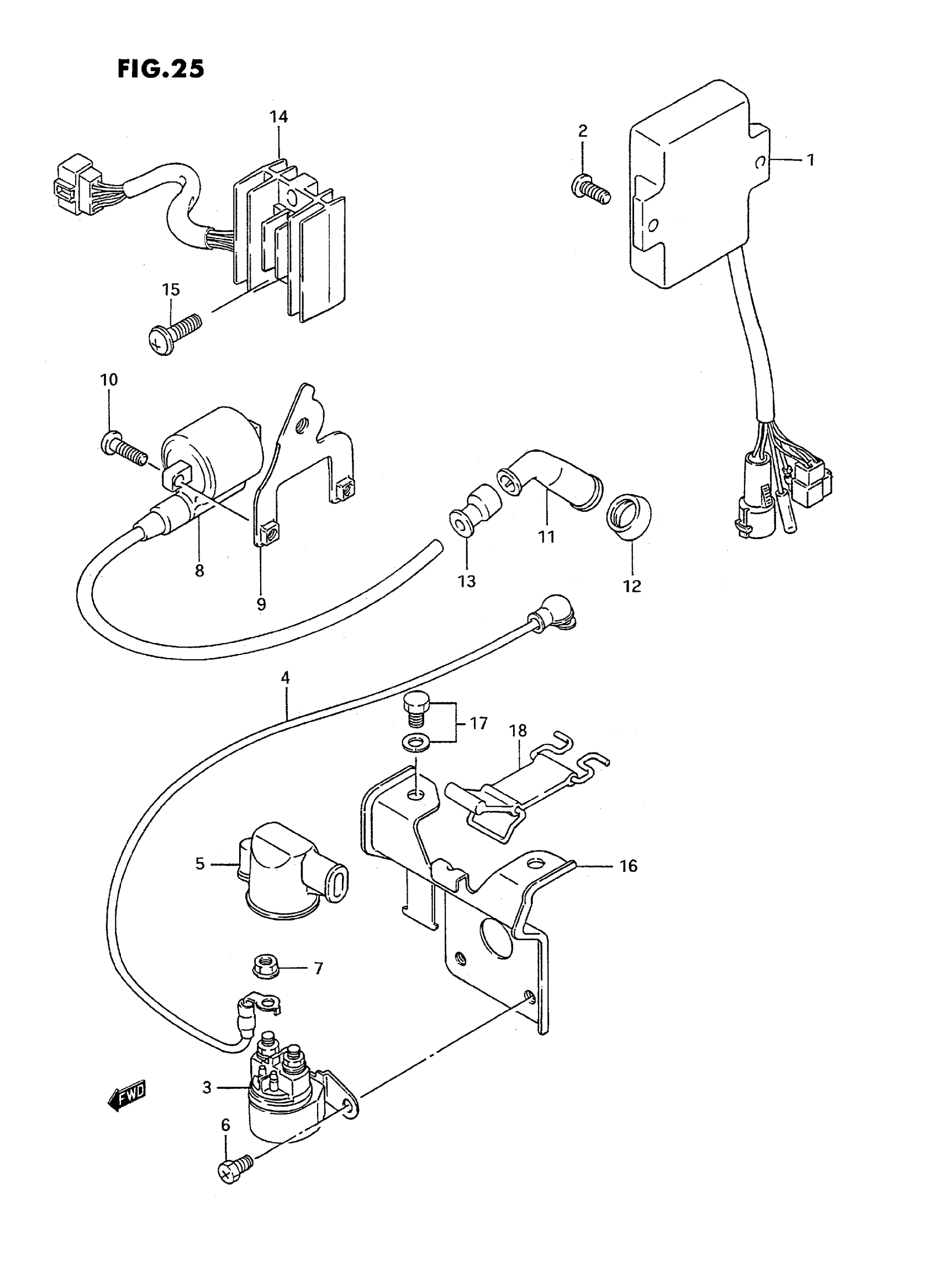

Find the part on the Electrical diagram for your 1995 Suzuki LT-F4WDXS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F4WDXS Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

C.D.I UNIT | MODEL M/N/P/R

32900-19B30

1
Out of stock

1

C.D.I UNIT | MODEL S

32900-19B40

1
Out of stock

2

SCREW | MODEL M/N This part replaces 02152-06126.

02112-1612B

2
Out of stock

2

SCREW | MODEL P/R/S This part replaces 02112-76163.

02112-7616A

2
Out of stock

3

RELAY, STARTING MOTOR

31800-49100

1
Out of stock

4

LEAD WIRE, STARTING MOTOR

33850-19B00

1
Out of stock

5

CAP, TERMINAL | MODEL M/N/P/R This part replaces 31861-44500.

31861-46D00

1
Out of stock

5

CAP, TERMINAL | MODEL S

31861-46D00

1
Out of stock

6

SCREW

09128-06013

2
Out of stock

7

NUT This part replaces 08361-35068.

08361-3506A

2
Out of stock

8

COIL ASSY, IGNITION | MODEL M/N/P/R This part replaces 33410-19B00.

33410-01X50

1
Out of stock

8

COIL ASSY, IGNITION | MODEL S

33410-01X50

1
Out of stock

9

BRACKET, IGNITION COIL

33416-19B00

1
Out of stock

10

2

$1.55

In stock

10

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

2
Out of stock

11

CAP, SPARK PLUG

33510-43010

1
Out of stock

12

SEAL, SPARK PLUG | MODEL M/N/P/R This part replaces 33541-24510.

33541-47D00

1
Out of stock

12

SEAL, SPARK PLUG | MODEL S

33541-47D00

1
Out of stock

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

1
Out of stock

14

RECTIFIER ASSY | MODEL M/N/P/R This part replaces 32800-19B10.

32800-19B11

1
Out of stock

14

RECTIFIER ASSY | MODEL S

32800-19B11

1
Out of stock

15

SCREW | MODEL M/N/P This part replaces 02112-16206.

02142-0620A

2
Out of stock

15

SCREW | MODEL R/S This part replaces 02142-06203.

02142-0620A

2
Out of stock

16

HOLDER, ELECTRIC PARTS REAR

47410-19B10

1
Out of stock

17

BOLT | MODEL M/N/P This part replaces 01137-06128.

01570-06127

2
Out of stock

17

BOLT | MODEL R/S This part replaces 01570-06163.

01570-0616A

2
Out of stock

18

BAND, TOOL

09462-00090

1
Out of stock
