1995 Suzuki LT-F4WDXS Differential Lock Diagram

← All diagrams

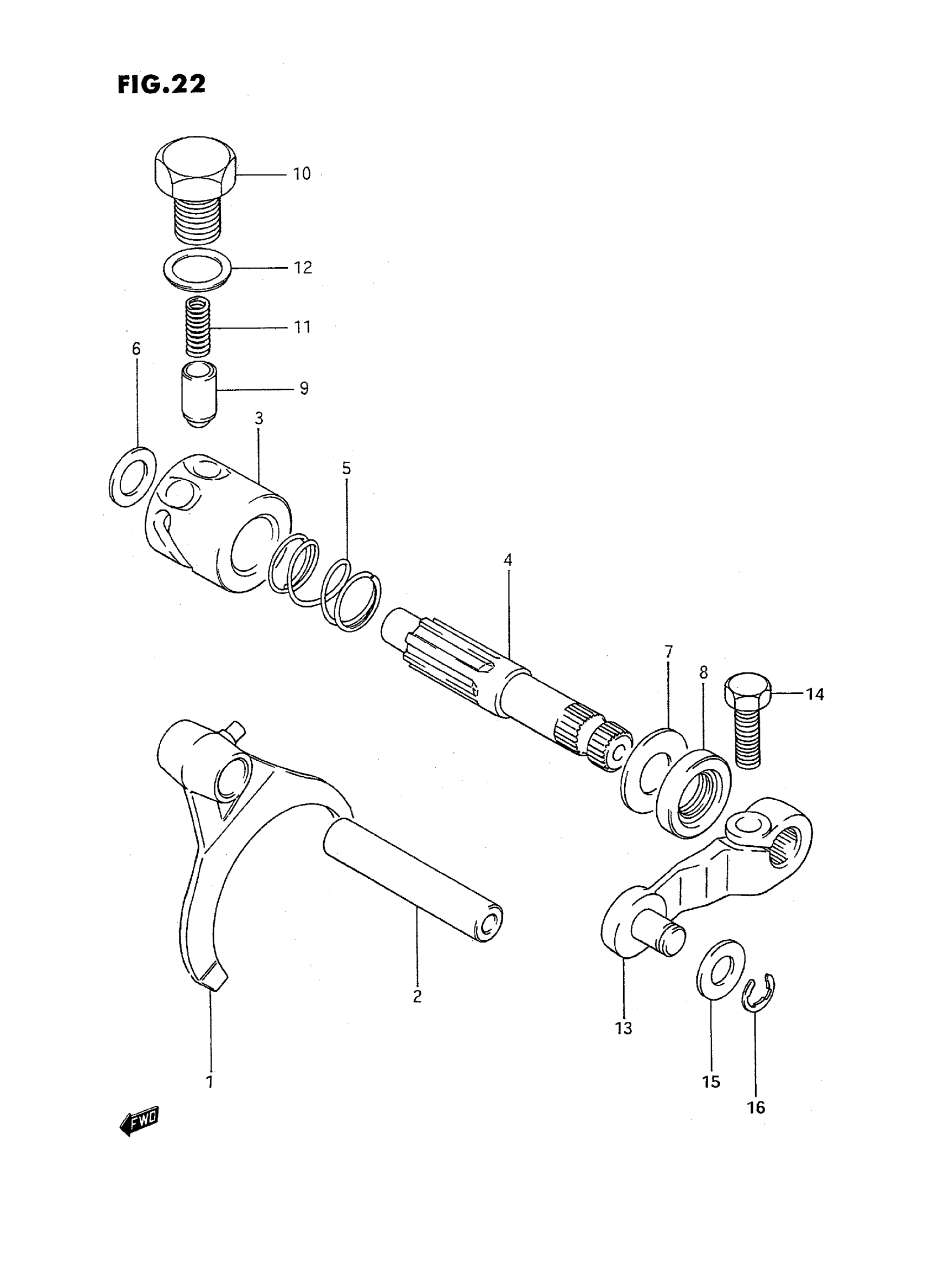

Find the part on the Differential Lock diagram for your 1995 Suzuki LT-F4WDXS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F4WDXS Differential Lock Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, DIFFRENTIAL LOCKING

27941-19B00

1
Out of stock

2

SHAFT, FORK | MODEL M/N/P This part replaces 25421-14300.

25421-14301

1
Out of stock

2

SHAFT, FORK | MODEL R/S

25421-14301

1
Out of stock

3

CAM, DIFFERENTIAL LOCKING

27911-19B01

1
Out of stock

4

SHAFT, CAM

27921-19B01

1
Out of stock

5

SPRING

09440-17008

1
Out of stock

6

SHIM This part replaces 08211-10181.

09181-10167

1
Out of stock

7

WASHER, LH

08211-12241

1
Out of stock

8

OIL SEAL (12X22X9)

09285-12006

1
Out of stock

9

STOPPER, SELECT CAM This part replaces 25351-18000.

25351-39300

1
Out of stock

10

HOUSING

25352-11010

1
Out of stock

11

SPRING

09440-05035

1
Out of stock

12

GASKET

09168-14002

1
Out of stock

13

ARM, DIFFERENTIAL LOCKING

25360-19B00

1
Out of stock

14

BOLT | MODEL M/N This part replaces 09100-06091.

01500-06207

1
Out of stock

14

BOLT | MODEL P/R/S

01500-06207

1
Out of stock

15

WASHER

08322-01087

1
Out of stock

16

CIRCLIP This part replaces 08332-11063.

08332-1106A

1
Out of stock
