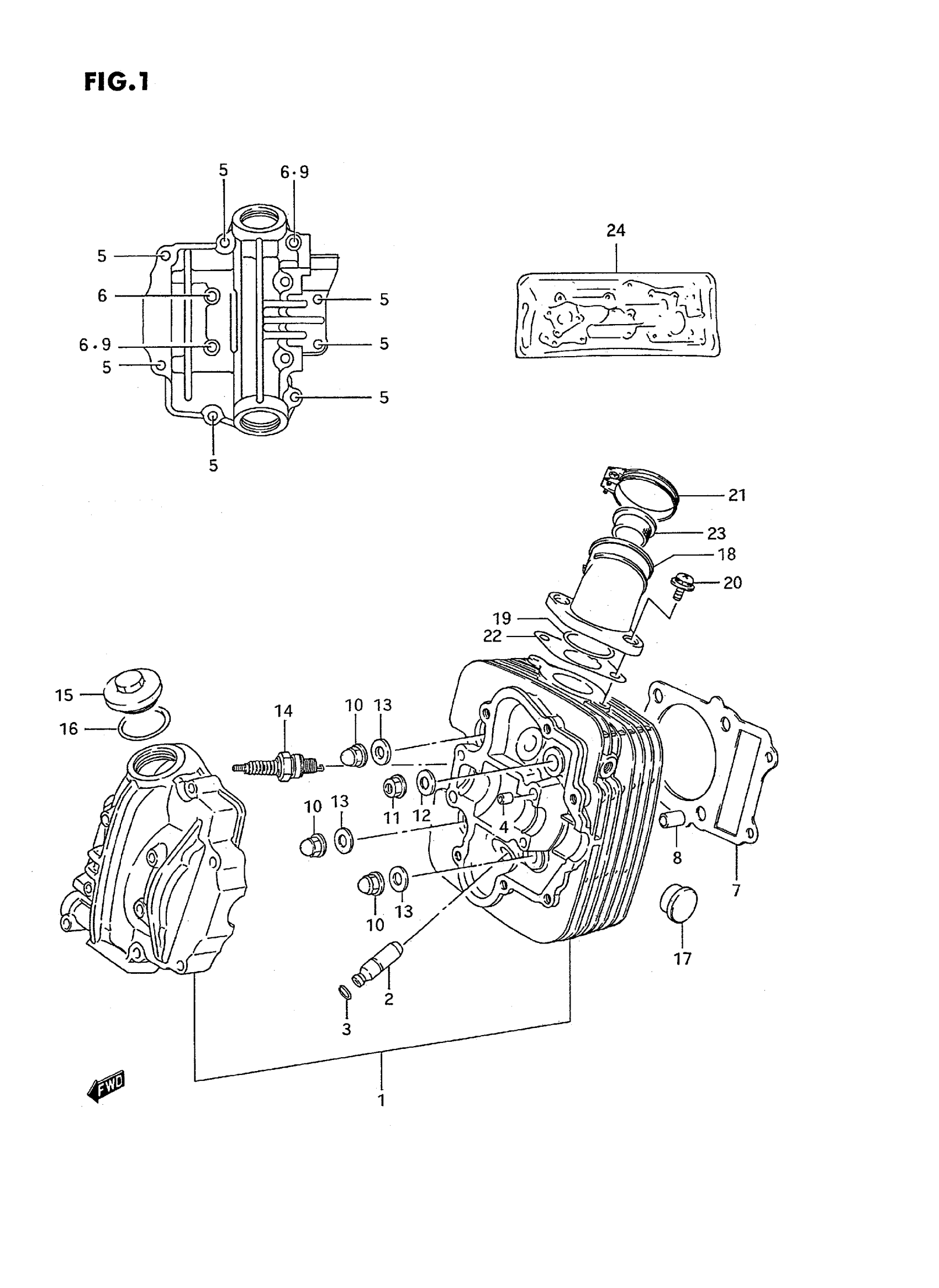

Suzuki LT-F4WDXS (1995) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 6

11100-19B71

$965.77

2

GUIDE, VALVE (0S:0.3)

11115-05270

$30.22

3

.RING (10X85)

09381-10004

$1.35

4

PIN

09206-08001

$1.77

5

BOLT | MODEL M/N/P This part replaces 01517-06354.

01550-0635A

$2.31

5

BOLT | MODEL R/S This part replaces 01550-06353.

01550-0635A

$2.31

6

BOLT | MODEL M/N/P This part replaces 01517-06605.

01550-0660A

$2.80

6

BOLT | MODEL R/S This part replaces 01550-06603.

01550-0660A

$2.80

7

GASKET, CYLINDER HEAD

11141-25C04

$18.28

8

PIN

04211-11169

$1.77

9

GASKET

09168-06023

$2.01

10

NUT | MODEL M/N/P/R This part replaces 09159-08064.

09159-08049

$4.25

10

NUT | MODEL S

09159-08074

$4.90

11

NUT | MODEL M/N/P This part replaces 08316-16085.

08316-1008B

$2.65

11

NUT | MODEL R/S This part replaces 08316-10083.

08316-1008B

$2.65

12

WASHER

09160-08039

$1.95

13

GASKET | MODEL M/N This part replaces 09168-08012.

09168-08013

$2.80

13

GASKET (8.5X17X2.3) | MODEL P/R/S

09168-08021

$2.66

14

SPARK PLUG (NGK,DR7EA) This part replaces 09482-00182.

09482-00398

$2.80

15

CAP, INSPECTION | ~E.NO.123314 This part replaces 11175-32400.

11175-42A00

$10.79

15

CAP INSPECTION | E.NO.123315~ This part replaces 11175-18900.

11175-18920

$11.16

15

CAP INSPECTION | MODEL S This part replaces 11175-37111.

11175-18920

$11.16

16

.O RING (D:3,ID:29.5)

09280-30001

$1.70

17

PLUG, HEAD

09241-22002

$4.73

18

PIPE ASSY,INTAK | MODEL M/N/P This part replaces 13110-19B50.

13101-19B51

$66.10

18

PIPE ASSY,INTAK | MODEL R/S This part replaces 13110-19B51.

13101-19B51

$66.10

19

O RING

09280-35005

$8.17

20

SCREW | MODEL M/N/P This part replaces 02112-76205.

02112-7620B

$2.80

20

SCREW | MODEL R/S This part replaces 02112-76203.

02112-7620B

$2.80

21

CLAMP | MODEL M/N/P/R

09402-50208

$4.30

21

CLAMP | MODEL S This part replaces 09402-50203.

09402-50208

$4.30

22

GASKET, INTAKE PIPE

13120-19B01

$4.32

23

NET, INTAKE

13130-19B50

Unavailable

24

GASKET SET | MODEL M/N This part replaces 11400-19882.

11401-19874

$238.48

24

GASKET SET | MODEL P/R This part replaces 11400-19885.

11401-19874

$238.48

24

GASKET SET | MODEL S This part replaces 11401-19870.

11401-19874

$238.48
