1995 Suzuki LT-F4WDXS Crankcase Diagram

← All diagrams

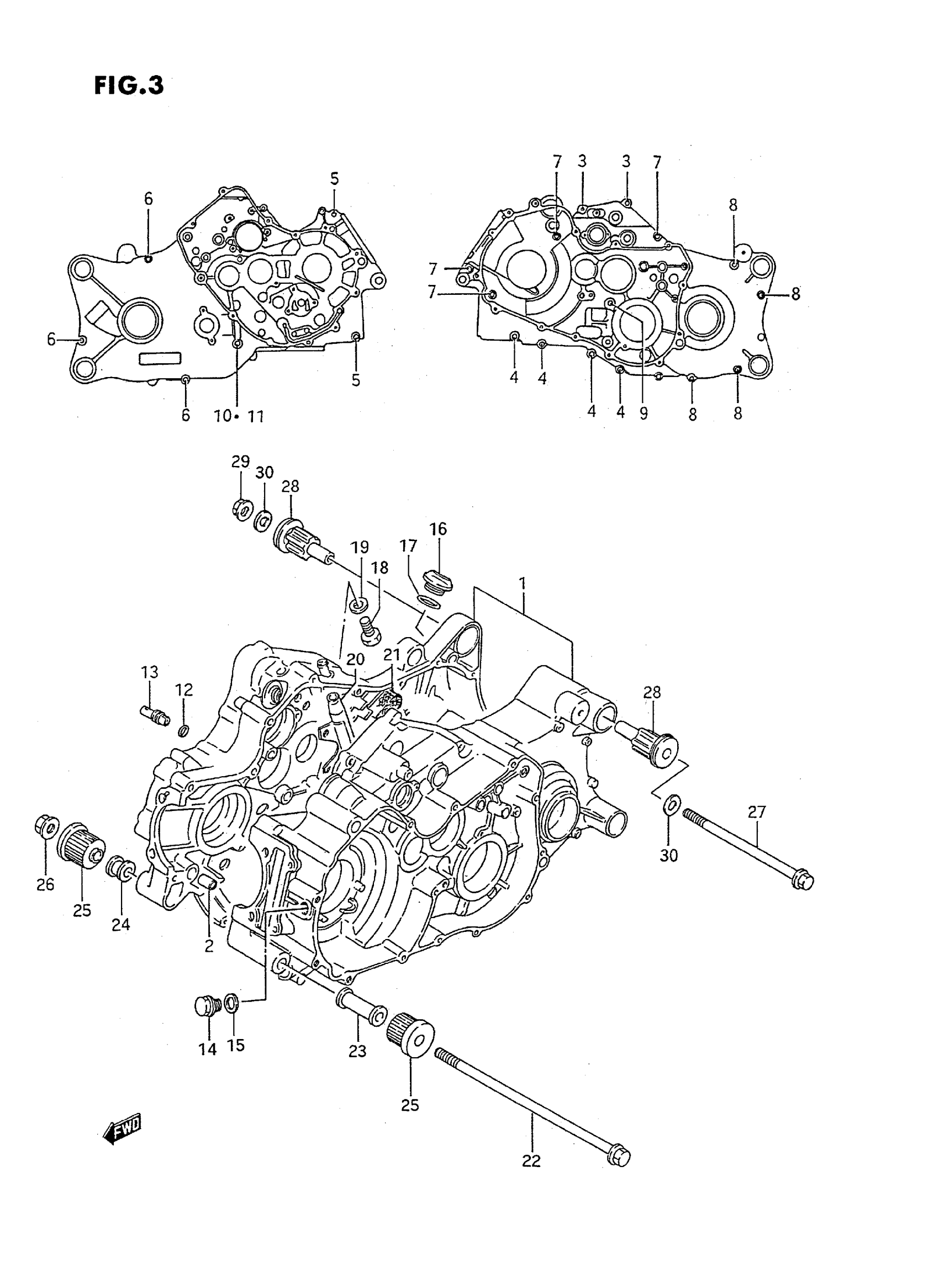

Find the part on the Crankcase diagram for your 1995 Suzuki LT-F4WDXS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1995 Suzuki LT-F4WDXS Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE SET | MODEL M/N This part replaces 11300-19880.

11300-19883

1
Out of stock

1

CRANKCASE SET | MODEL P/R/S; Includes Item(s) 2 - 13 This part replaces 11300-19881.

11300-19883

1
Out of stock

2

PIN (L:22) | MODEL M/N/P

09206-13004

2
Out of stock

2

PIN (L:18) | MODEL R/S

04211-13189

2
Out of stock

3

BOLT | MODEL M/N/P

01547-06307

2

$2.22

In stock

3

BOLT, FINAL GEAR CASE | MODEL R/S This part replaces 01547-06303.

01547-0630B

2
Out of stock

4

BOLT | MODEL M/N/P

01547-06407

4
Out of stock

4

BOLT | MODEL R/S This part replaces 01547-06403.

01547-0640B

4
Out of stock

5

BOLT | MODEL M/N/P

01547-06457

2
Out of stock

5

2

$2.92

In stock

6

BOLT | MODEL M/N/P

01547-06507

3
Out of stock

6

3

$2.92

In stock

7

BOLT | MODEL M/N/P

01547-06657

4
Out of stock

7

BOLT | MODEL R/S This part replaces 01547-06653.

01547-0665B

4
Out of stock

8

4

$3.16

In stock

9

1

$9.78

In stock

10

BOLT (8X60)

09103-08217

1
Out of stock

11

GASKET

09168-08021

1

$2.78

In stock

12

1

$2.03

In stock

13

JET, OIL GALLERY

09493-36004

1

$18.33

In stock

14

PLUG, TDC

09247-14015

1
Out of stock

15

GASKET

09168-14002

1
Out of stock

16

CAP, OIL FILLER

09200-30810

1

$9.82

In stock

17

O RING | MODEL S

09280-26006

1

$2.91

In stock

18

1

$4.35

In stock

18

1

$4.35

In stock

19

GASKET

09168-12002

1
Out of stock

20

PIPE, BREATHER This part replaces 11380-19B30.

11380-19B41

1
Out of stock

21

SEPARATOR, OIL BREATHER | MODEL M/N/P/R This part replaces 11186-19B80.

11186-19B81

1
Out of stock

21

SEPARATOR, OIL BREATHER | MODEL S

11186-19B81

1
Out of stock

22

BOLT (12X300)

09103-12016

1

$28.57

In stock

23

SPACER (L:60)

11610-19B00

1
Out of stock

24

1

$7.45

In stock

24

1

$7.45

In stock

24

1

$7.45

In stock

25

BUSH (L:39)

11681-20B00

2

$38.30

In stock

26

NUT This part replaces 08319-31128.

08319-3112A

1
Out of stock

27

BOLT (10X240)

09103-10221

2

$24.53

In stock

28

BUSH (L:85)

11650-19B10

4

$42.37

In stock

29

NUT

09159-10047

2

$9.30

In stock
