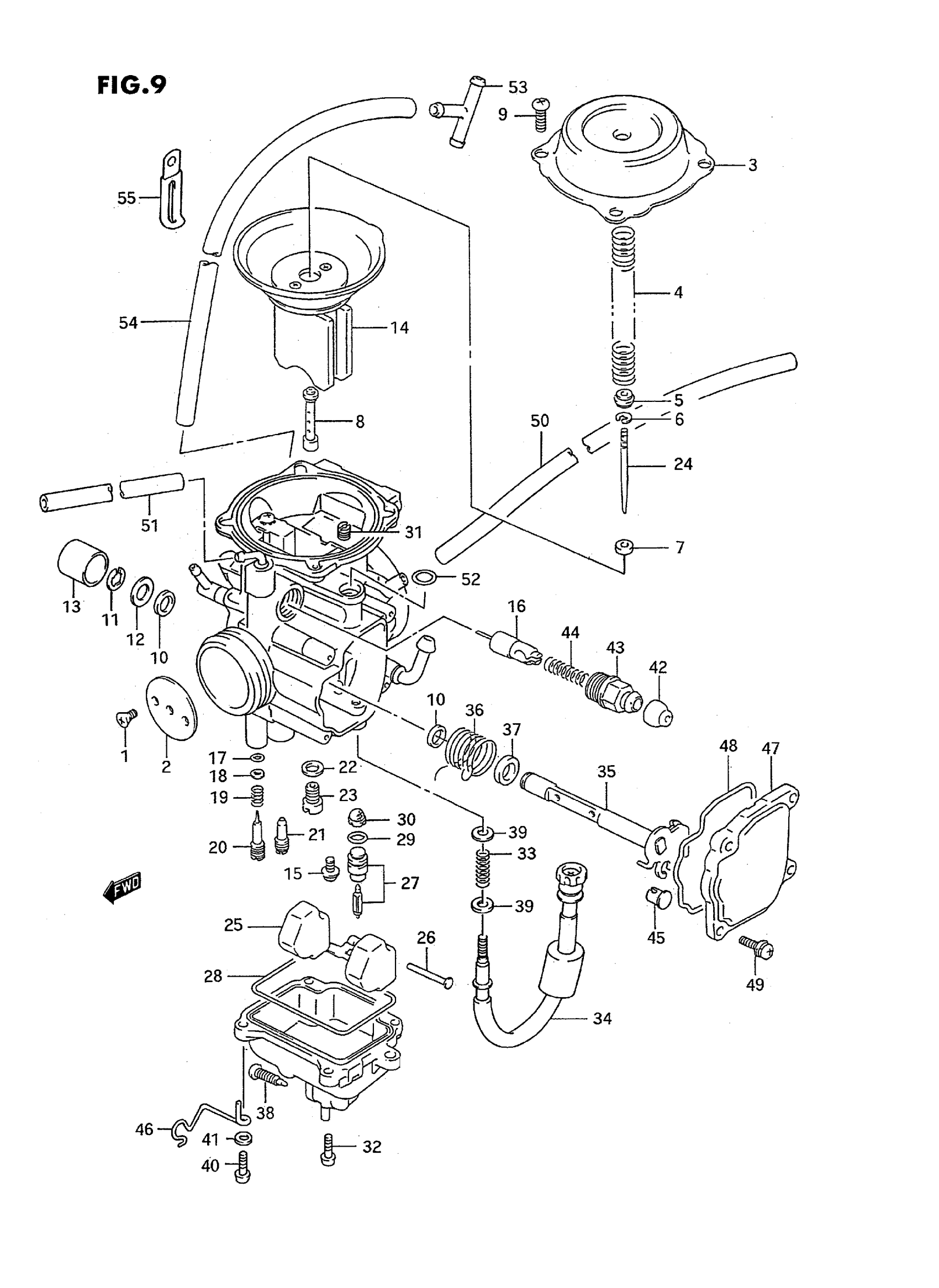

Suzuki LT-F4WDXS (1995) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | ~E.NO.102907 This part replaces 13200-19B80.

13200-19B84

Unavailable

CARBURETOR ASSY | E.NO.102908~ This part replaces 13200-19B81.

13200-19B84

Unavailable

CARBURETOR ASSY | MODEL P This part replaces 13200-19B82.

13200-19B84

Unavailable

CARBURETOR ASSY | MODEL R/S; Includes Item(s) 1 - 51 This part replaces 13200-19B90.

13200-19B93

Unavailable

1

SCREW, THROTTLE VALVE This part replaces 13604-42A00.

13604-44080

$2.92

2

VALVE, THROTTLE

13551-42A30

Unavailable

3

COVER

13502-42A00

$38.47

4

SPRING

13417-26B00

Unavailable

5

RING

13382-42A00

$4.48

6

E RING

13394-10010

$5.45

7

RING

13387-47010

$7.22

8

JET, NEEDLE (P-2) This part replaces 09494-00716.

09494-00858

Unavailable

9

SCREW This part replaces 02112-04085.

02112-0408A

$1.49

10

SEAL This part replaces 13556-05A10.

13556-05A11

$3.59

11

E RING

13617-44080

$2.90

12

WASHER

13557-47070

$3.59

13

CAP

13578-47070

$4.52

14

DIAPHRAGM ASSY | MODEL M/N This part replaces 13500-19B50.

13500-19B63

Unavailable

14

DIAPHRAGM ASSY | MODEL P/R/S This part replaces 13500-19B61.

13500-19B63

Unavailable

15

SCREW

13602-43410

$2.92

16

PLUNGER ASSY

13411-19B50

$15.35

17

O-RING This part replaces 13295-29900.

13295-29901

$4.34

18

WASHER

13291-29900

$1.98

19

.SPRING (NT:45)

13268-47070

$4.34

20

SCREW, PILOT (2 5/8)

13279-47070

$13.36

21

JET, PILOT (37.5)

09492-35010

$9.32

22

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

23

JET, MAIN (120)

09491-24016

$11.38

24

NEEDLE, JET (5D40-4)

13383-19B50

$18.75

25

FLOAT

13250-42A00

$34.08

26

PIN

13254-92311

$2.07

27

VALVE ASSY, NEEDLE

13370-38B00

$58.10

28

O RING, FLOAT CHAMBER

13251-42A00

$9.03

29

O RING This part replaces 13374-44080.

13374-35C00

$5.99

30

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

31

JET, PILOT AIR (155)

09493-30005

$16.40

32

SCREW This part replaces 02112-04123.

02112-0412A

$1.49

33

SPRING

13268-19B50

$4.28

34

ADJUSTER

13267-19B70

$50.69

35

SHAFT ASSY, THROTTLE

13550-19B80

Unavailable

36

SPRING

13573-19B50

Unavailable

37

RING

13574-19B50

Unavailable

38

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

39

WASHER

13615-45010

$3.25

40

SCREW This part replaces 02112-04163.

02112-0416A

$1.49

41

WASHER | MODEL M/N/P This part replaces 13606-02340.

08322-0104A

$1.91

41

WASHER | MODEL R/S This part replaces 08322-01043.

08322-0104A

$1.91

42

.CAP This part replaces 13681-04010.

13681-04011

$4.93

43

HOLDER, GUIDE

13418-43410

$7.22

44

SPRING

13417-43010

$4.34

45

GUIDE, CABLE

13591-19B50

$10.28

46

CLIP

13692-19B60

Unavailable

47

COVER

13502-19B50

$20.10

48

O RING

13251-19B50

$12.30

49

SCREW

13602-19B50

$3.43

50

HOSE, AIR VENT | E.NO.102908~FOR 13200-19B81L:1000->650 This part replaces 09359-50823-00A.

09359-50823-00B

Unavailable

51

HOSE(4.5X8.5X60 | MODEL R/SFOR 13200-19B90 This part replaces 13683-19B90.

09355-45001-600

$9.48

52

O RING (D:1.7,ID:6.0) This part replaces 09280-06009.

09280-06008

$2.03

53

UNION, 3 WAY

09367-08004

$4.83

54

HOSE, AIR VENT | L:1000->650 This part replaces 09359-50823-00A.

09359-50823-00B

Unavailable

55

CLAMP, AIR VENT HOSE This part replaces 09404-06419.

09404-06435

$3.68
