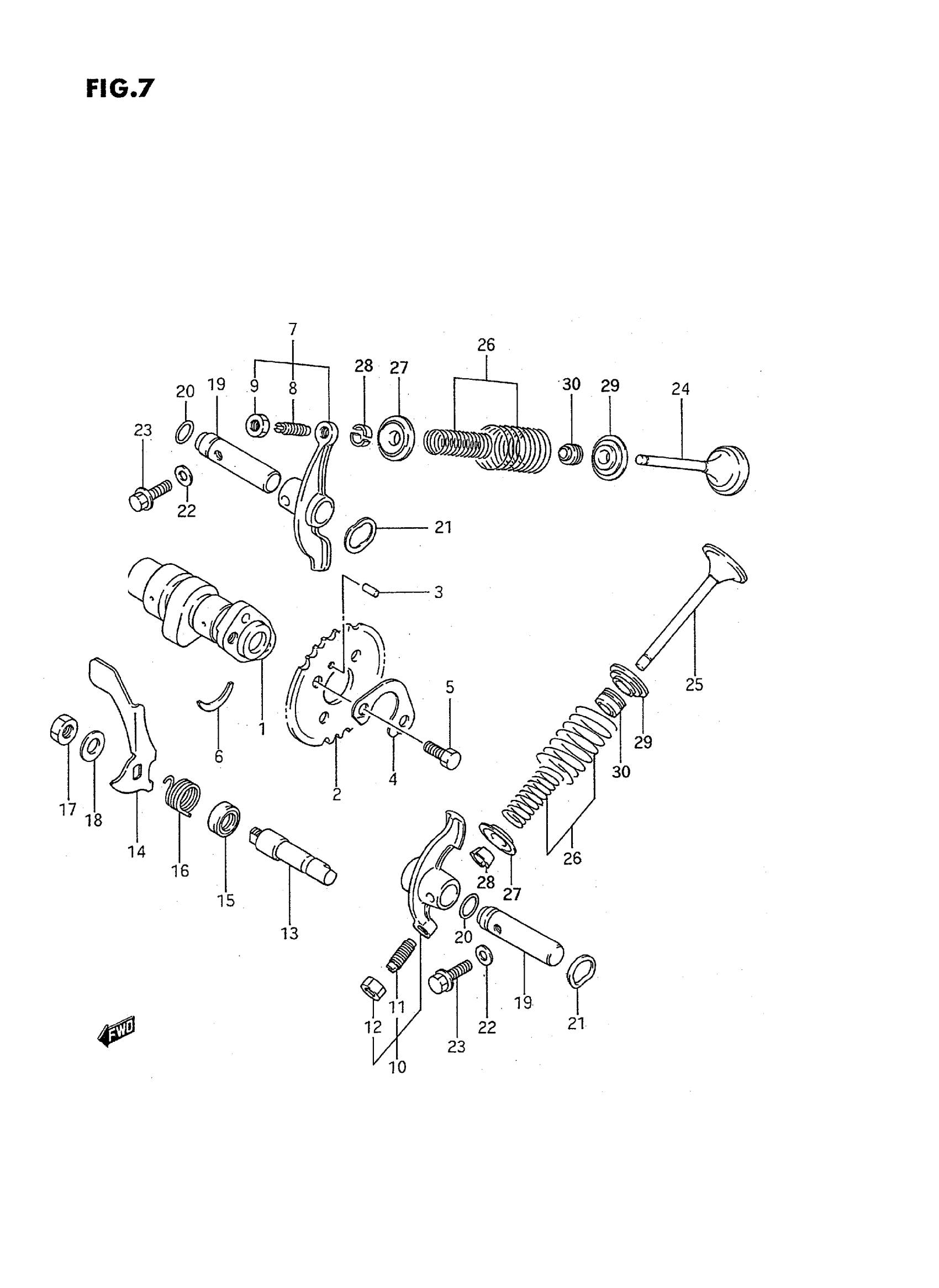

Suzuki LT-F4WDXS (1995) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-19B70

$189.13

2

SPROCKET (NT:34) This part replaces 12741-04B00.

12741-04B01

$40.33

3

PIN

09261-05005

$1.49

4

WASHER, SPROCKET This part replaces 12747-05201.

12747-05202

$2.51

5

BOLT

09111-06032

$2.21

6

C-RING

09390-22002

$2.27

7

ARM ASSY, VALVE ROCKER | ~E.NO.118847 This part replaces 12840-25C00.

12850-25C00

$43.16

7

ARM ASSY, VALVE ROCKER | E.NO.118848~; Includes Item(s) 8 - 9 This part replaces 12850-24400.

12850-25C00

$43.16

8

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

9

.NUT, ADJUSTING SCREW

12843-32400

$2.79

10

ARM ASSY, VALVE ROCKER | ~E.NO.118847

12850-25C00

$43.16

10

ARM ASSY, VALVE ROCKER | E.NO.118848~; Includes Item(s) 11 - 12 This part replaces 12850-24400.

12850-25C00

$43.16

11

.SCREW, TAPPET ADJUSTING

12842-32411

$5.24

12

.NUT, ADJUSTING SCREW

12843-32400

$2.79

13

SHAFT, DECOMP

12941-19B00

$29.25

14

LEVER, DECOMP SHAFT | MODEL M/N/P/R This part replaces 12942-19B00.

12942-19B01

$5.60

14

LEVER, DECOMP SHAFT | MODEL S

12942-19B01

$5.60

15

OIL SEAL

09282-10014

$6.70

16

SPRING

09448-17014

$4.07

17

NUT, ADJUSTER | MODEL M/N/P This part replaces 08310-22085.

09140-08021

$2.63

17

NUT | MODEL R This part replaces 08310-00083.

08310-0008A

$1.84

17

NUT | MODEL S This part replaces 08316-10083.

08316-1008B

$2.66

18

WASHER | MODEL M/N/P This part replaces 08322-11084.

08322-0108A

$1.92

18

WASHER | MODEL R/S This part replaces 08322-01083.

08322-0108A

$1.92

19

SHAFT, VALVE ROCKER ARM

12861-05201

$19.72

20

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

21

WASHER

09164-12021

$2.03

22

GASKET

09168-06023

$2.35

23

BOLT | MODEL M/N/P This part replaces 01517-06254.

01550-0625A

$1.97

23

BOLT | MODEL R/S This part replaces 01550-06253.

01550-0625A

$1.97

24

VALVE, INTAKE

12911-19B00

$39.48

25

VALVE, EXHAUST

12912-18A00

$62.11

26

SPRING SET, VALVE

12920-05210

$13.75

27

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

28

COTTER, VALVE

12932-24400

$1.94

29

SEAT, VALVE SPRING | MODEL M/N/P This part replaces 12933-49200.

12933-49201

$5.84

29

SEAT, VALVE SPRING | MODEL R/S

12933-49201

$5.84

30

OIL SEAL (5.5X11X8.2) | MODEL M/N/P This part replaces 09289-05003.

09289-05015

$6.70

30

OIL SEAL | MODEL R/S

09289-05015

$6.70
