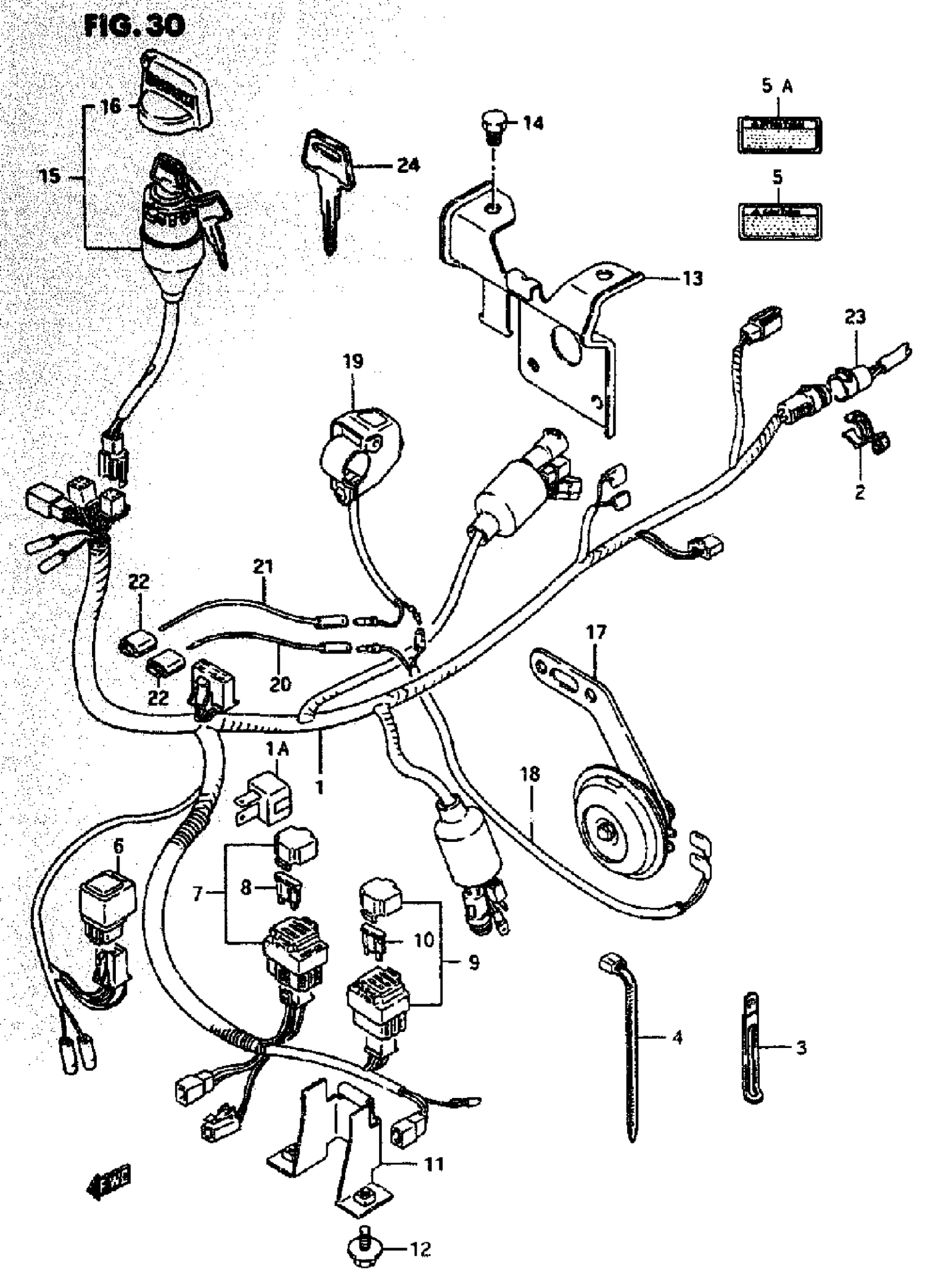

Suzuki LT-F4WDX (1997) WIRING HARNESS Diagram

#

Description
Price

1

HARNESS, WIRING

36610-39DC0

Unavailable

1

RECTIFIER

32800-16A00

$23.07

2

CLAMP

09403-16307

$2.53

3

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

4

CLAMP (L:125)

09407-14403

$2.26

4

CLAMP This part replaces 09407-18403.

09407-18402

$2.19

5

LABEL, POWER SOURCE

38852-19B10

Unavailable

5

LABEL, CAUTION MAX AMP | E28

38852-19B20

Unavailable

6

RELAY, NEUTRAL START

38730-19B00

$40.44

7

BOX ASSY, MAIN FUSE

36740-24B01

$28.18

8

FUSE (20A)

09481-20101

$2.12

9

BOX ASSY, POWER SOURCE FUSE

36740-04701

$22.22

10

FUSE (15A)

09481-15101

$2.53

11

HOLDER, ELECTRIC FRONT

47410-19B00

$12.40

12

BOLT (6X12) This part replaces 09118-06103.

09118-06055

$2.80

13

HOLDER, ELECTRIC REAR

47410-19B10

$18.02

14

BOLT This part replaces 01570-06163.

01570-0616A

$2.23

15

SWITCH ASSY,IGN This part replaces 37110-19B02.

37110-19B03

$127.03

16

.MASCOT,KEY This part replaces 37142-19B00.

37142-19B01

$4.99

17

NO DESCRIPTION AVAILABLE | OPT This part replaces 38500-19B01.

38500-09F01

Unavailable

18

LEAD WIRE, HORN | OPT

36852-19B00

Unavailable

19

SWITCH ASSY, HORN | OPT This part replaces 37830-18A00.

37830-27H00

$45.83

20

LEAD WIRE, SWITCH (ORANGE) | OPT

36851-19B00

Unavailable

21

LEAD WIRE, SWITCH | OPT

36851-19B10

Unavailable

22

CONNECTOR | OPT

36859-36590

$7.32

23

PLUG ASSY. POWER SOURCE | OPT

39602-18A00

Unavailable

24

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

24

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07
